Automatic Transmission/Transaxle: Tools and Equipment

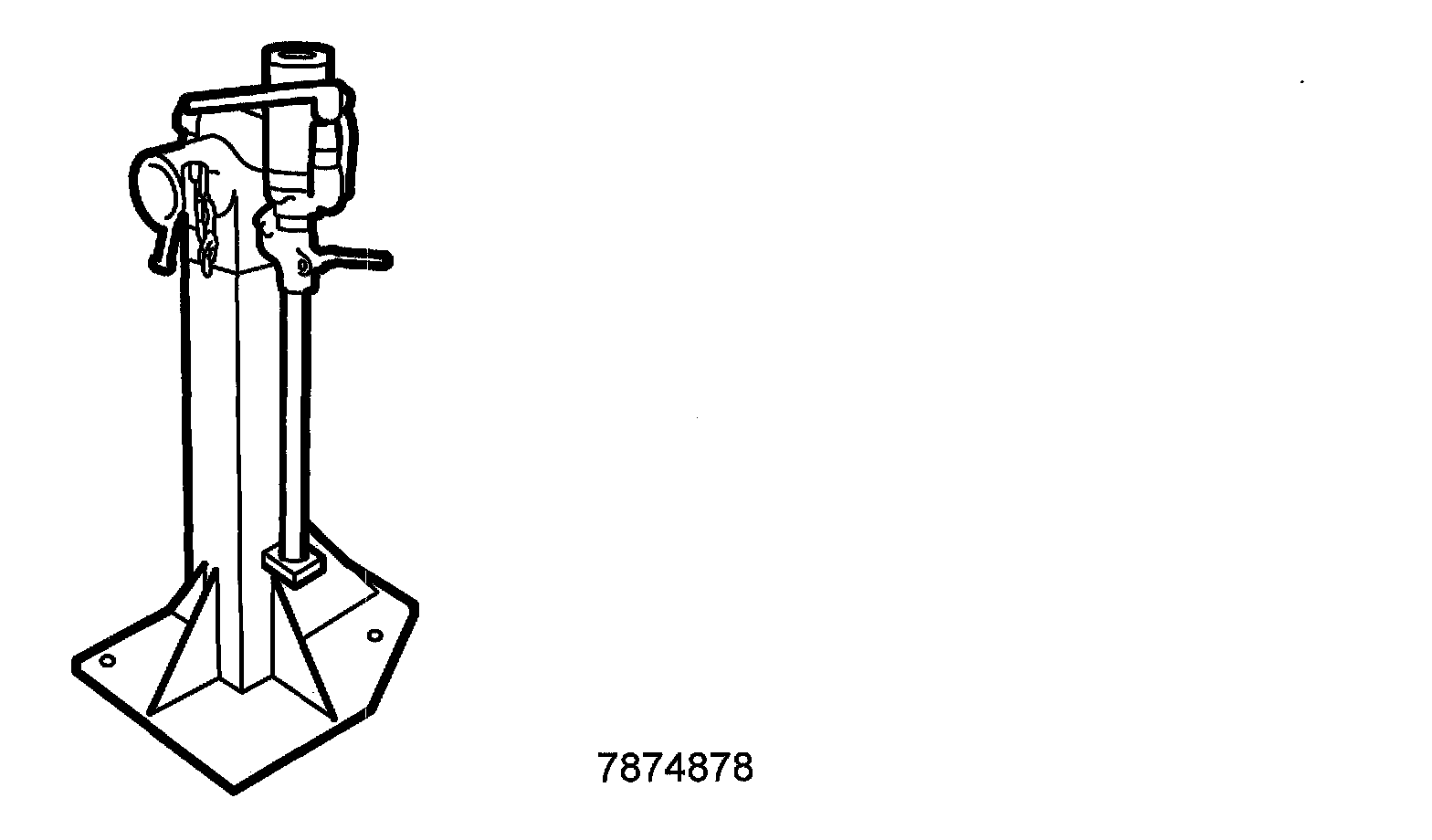

78 74 878 Floor stand
Group: Engine, Manual gearbox

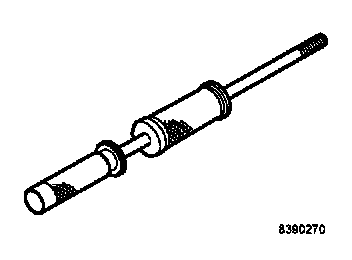

83 90 270 Sliding hammer
86 11 584 Toolboard T4
Use with 83 90 858 Pin
Group: Manual gearbox

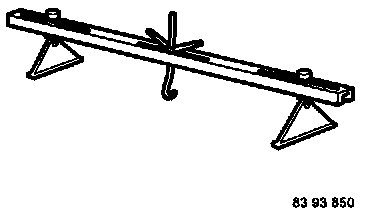

83 94 850 Lifting beam
Group: Engine, Manual gearbox






83 95 162 Protective collar/ drive shafts
86 11584 Tool board T4
Group: Manual gearbox, Automatic transmission

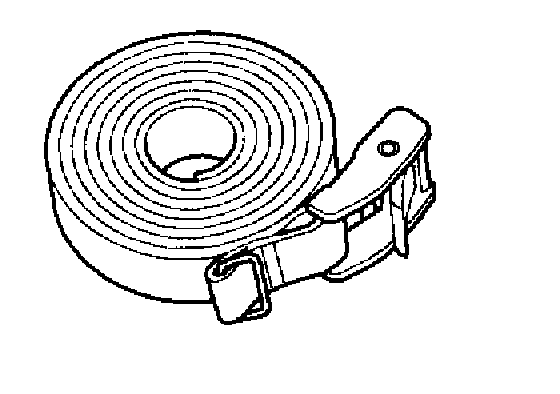

83 95 212 Strap
Supports heavy components such as AC compressor when removing and fitting
Group: Engine

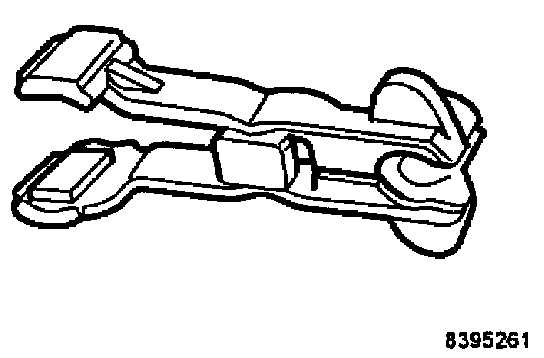

83 95 261 Tool, fuel line
For separating fuel line and tank venting
86 11 6l8 Toolboard T1
Group: Engine

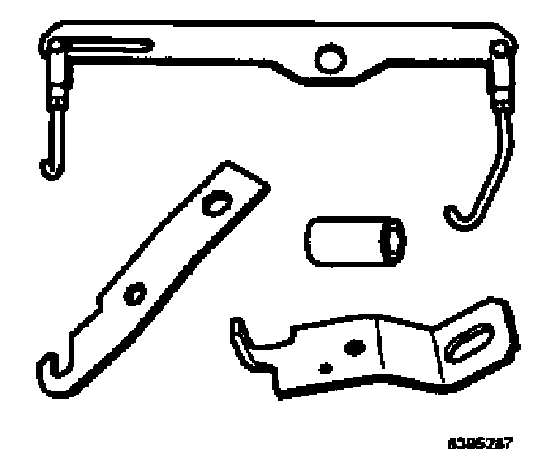

83 95 287 Holder
Engine support
Group: Engine

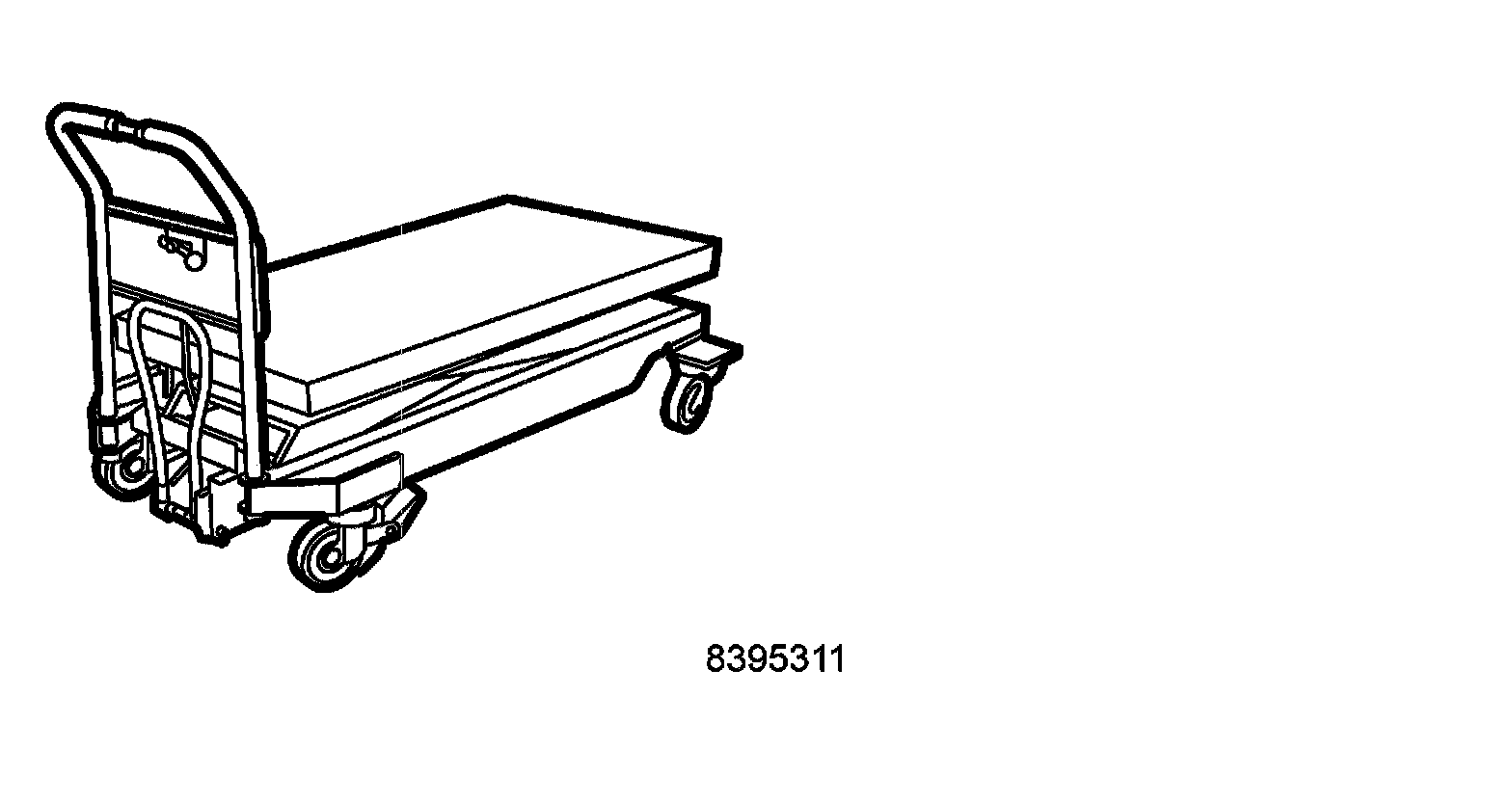

83 95 311 Trolley lift
Group: Miscellaneous






86 11 345 Jumper cable (x 2)
Group: Test equipment






86 11 352 Test lead, male pin (x 4)
Group: Test equipment

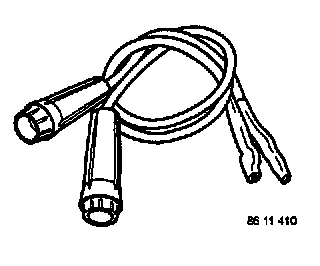

86 11 410 Test lead/ female (x4)
Group: Test equipment






86 11 857 Test lamp, red-green
Voltage range 8 - 16 Volts
Group: Test equipment






87 91 311 Sleeve/ bearing, driver shaft
86 11 584 Tool board T4
Group: Manual gearbox

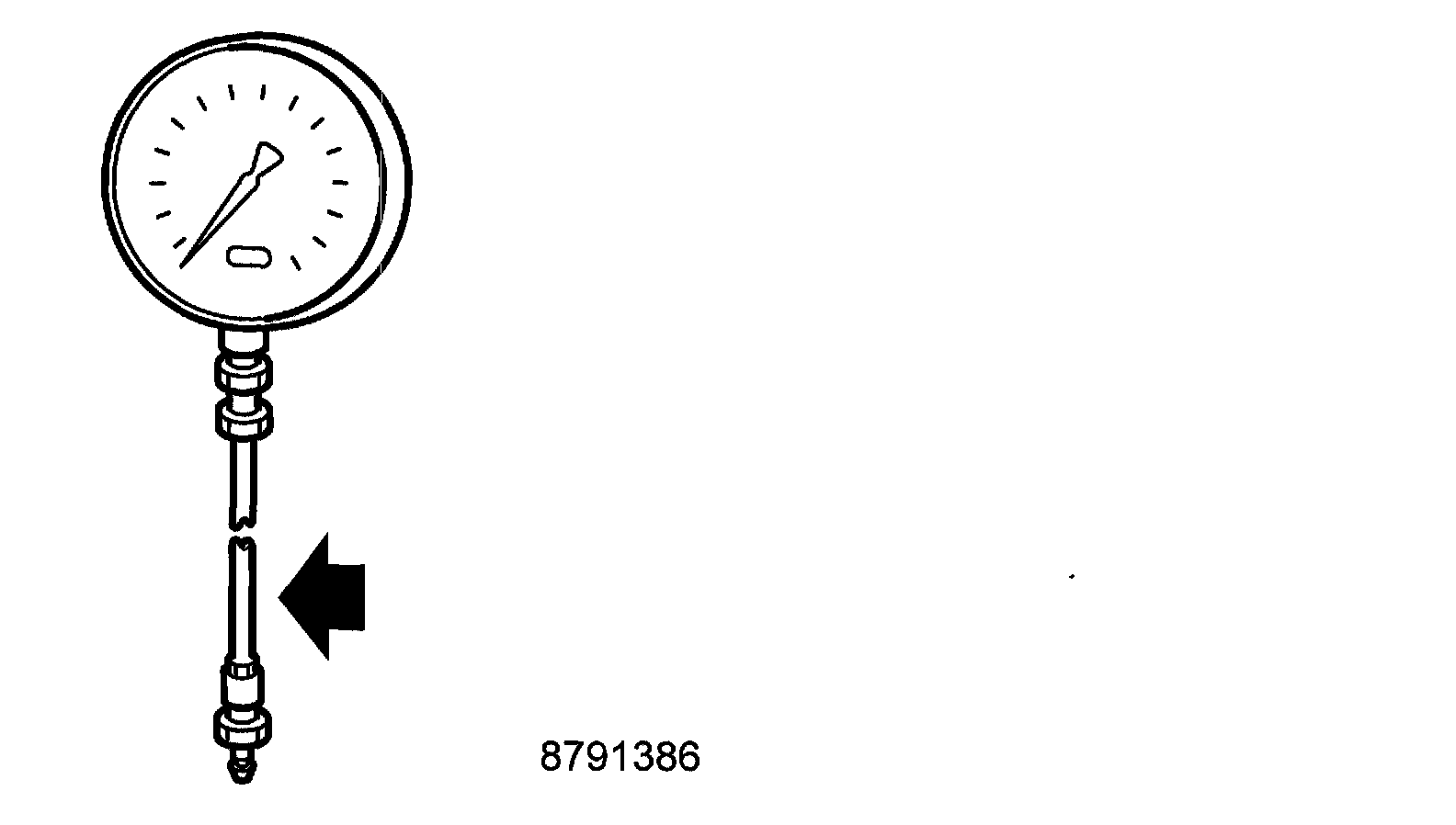

87 91 386 Hose Kit
Spare part
Used together with 87 91 600 Pressure gauge equipment
Group: Automatic transmission

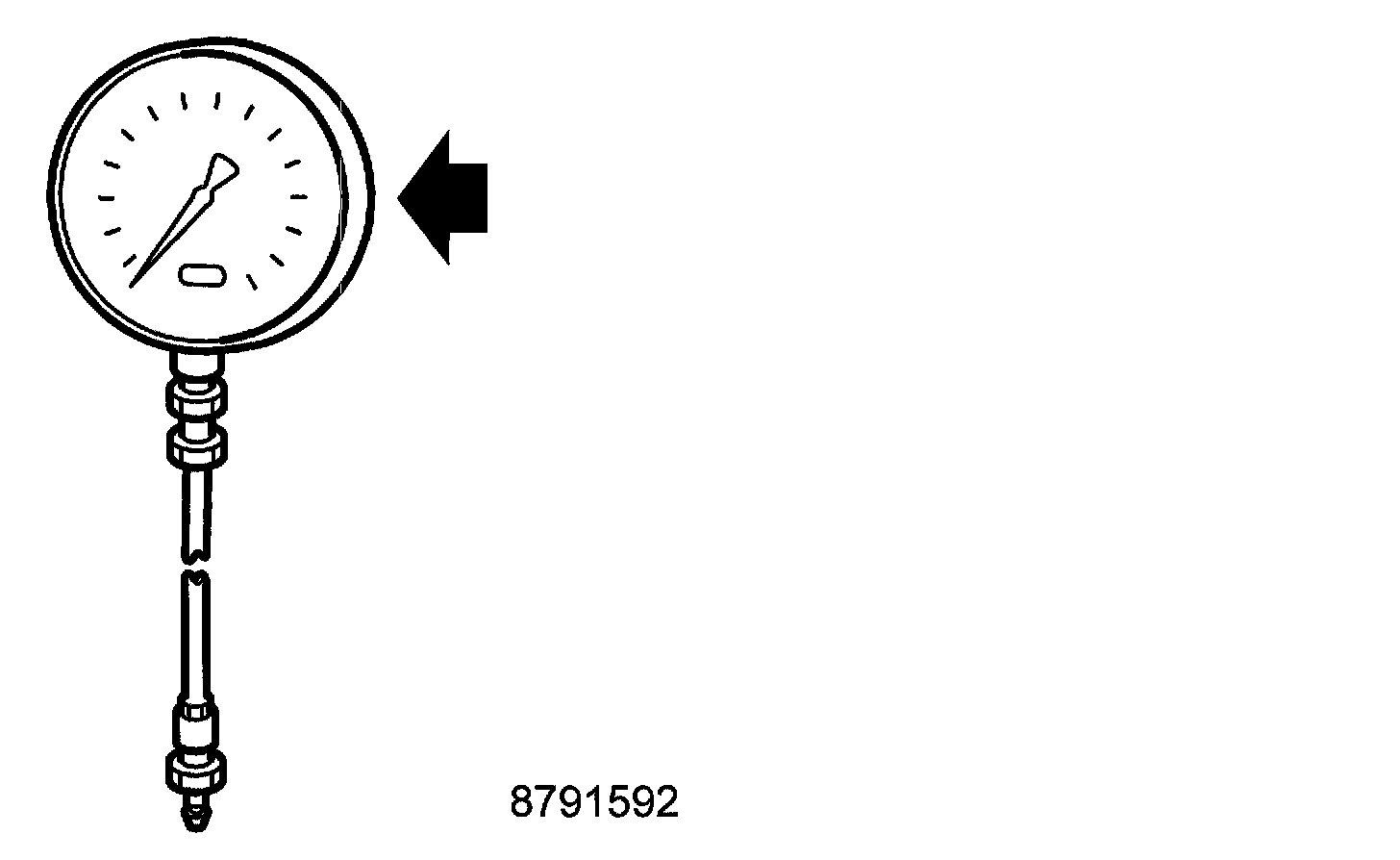

87 91 592 Pressure gauge
Spare part
Used together with 87 91 600 Pressure gauge equipment.
Group: Automatic transmission

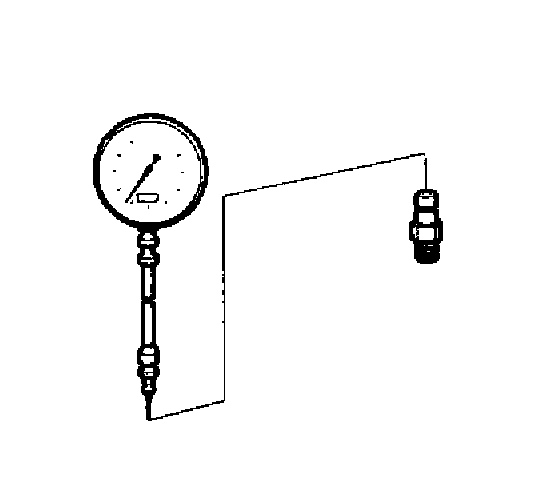

87 91 600 Pressure gauge equipment
Group: Automatic transmission

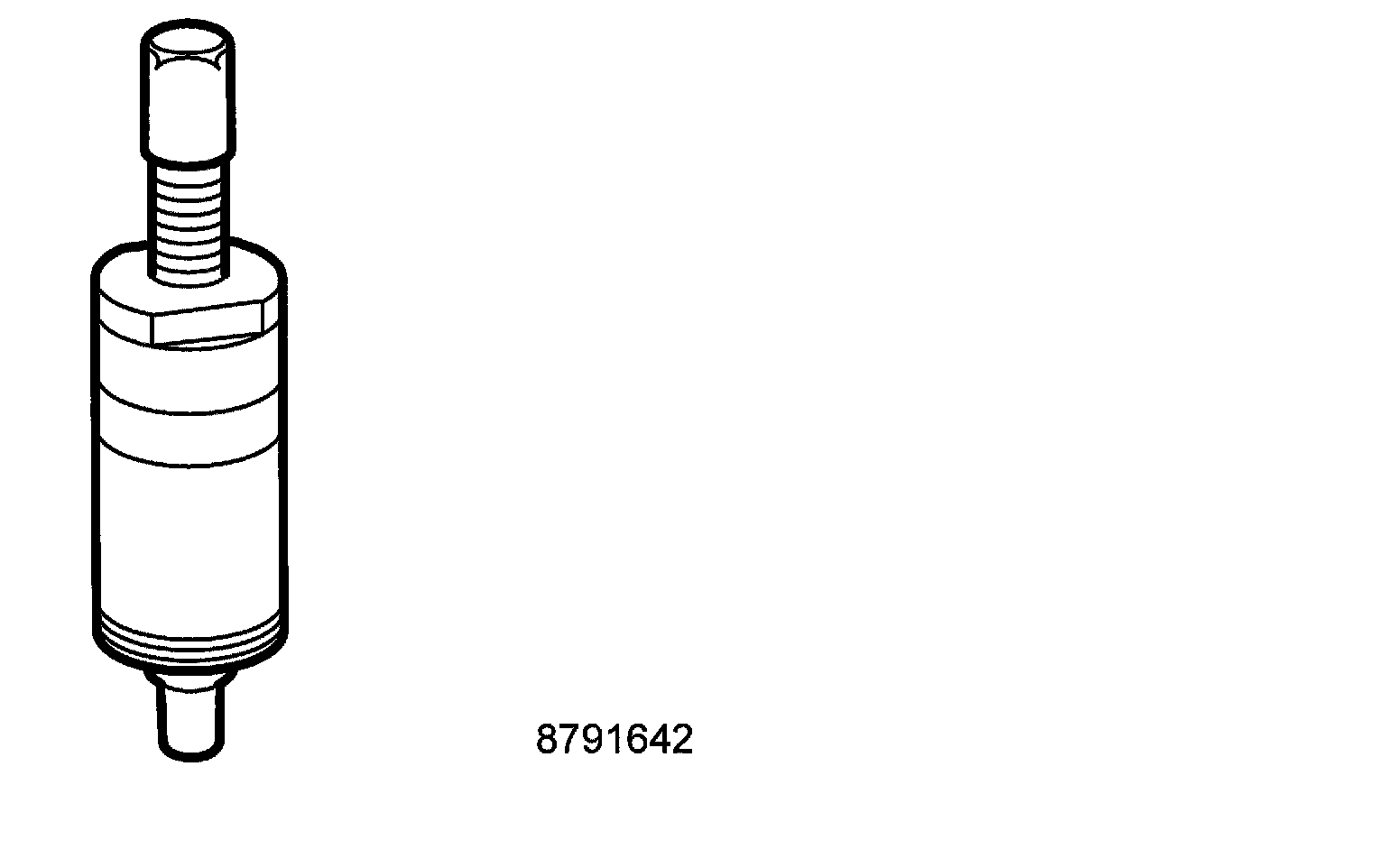

87 91 642 Basic tool
86 11 S84 Toolboard T4
Group: Manual gearbox

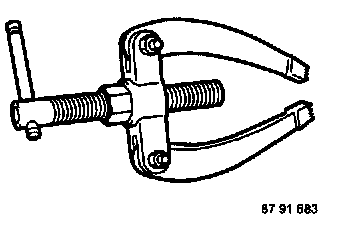

87 91 683 Puller
86 11 592 Toolboard T5
Group: Automatic transmission






87 91 824 Flushing equipment:
For oil cooler, comp.
Group: Automatic transmission

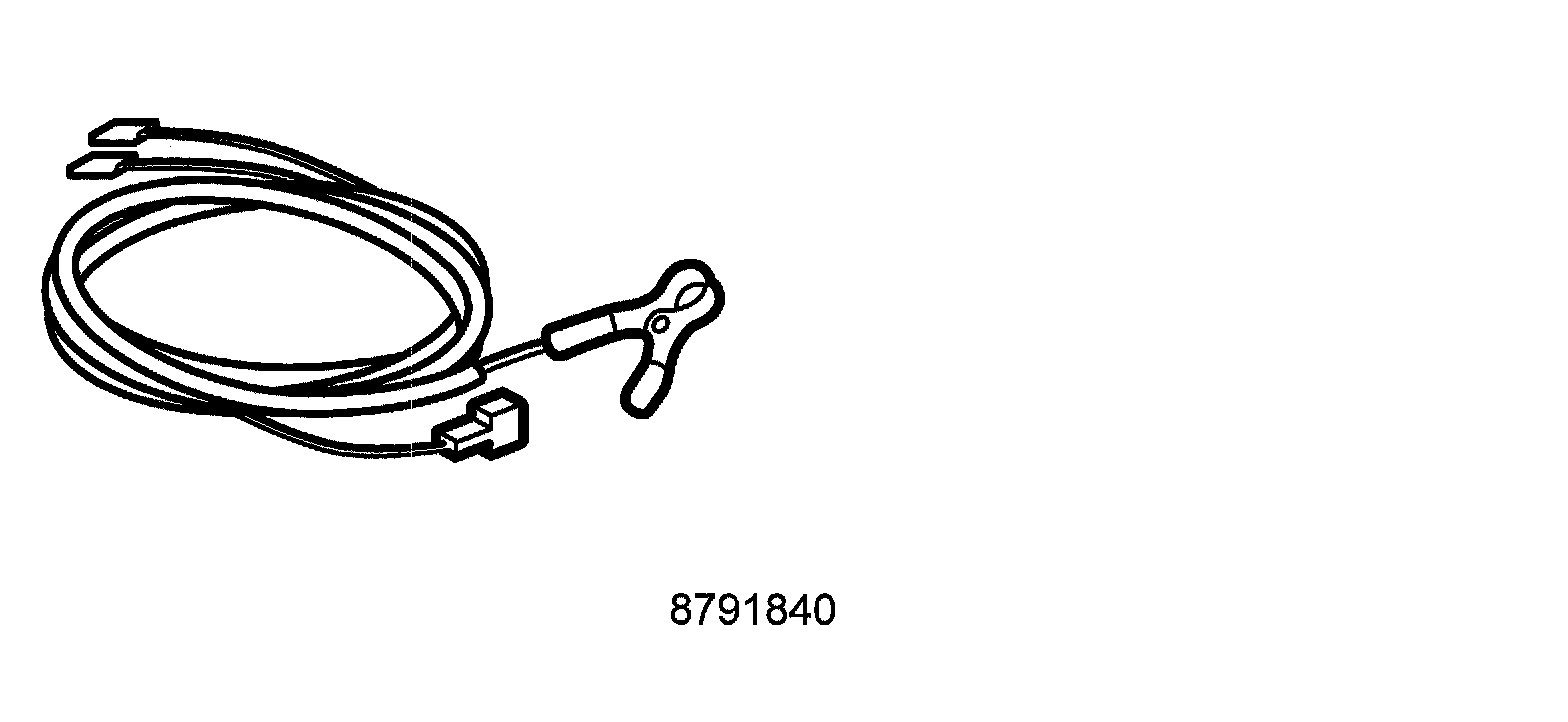

87 91 840 Wiring harness
Spare part
Used together with 87 91 824 Flushing equipment
Group: Automatic transmission

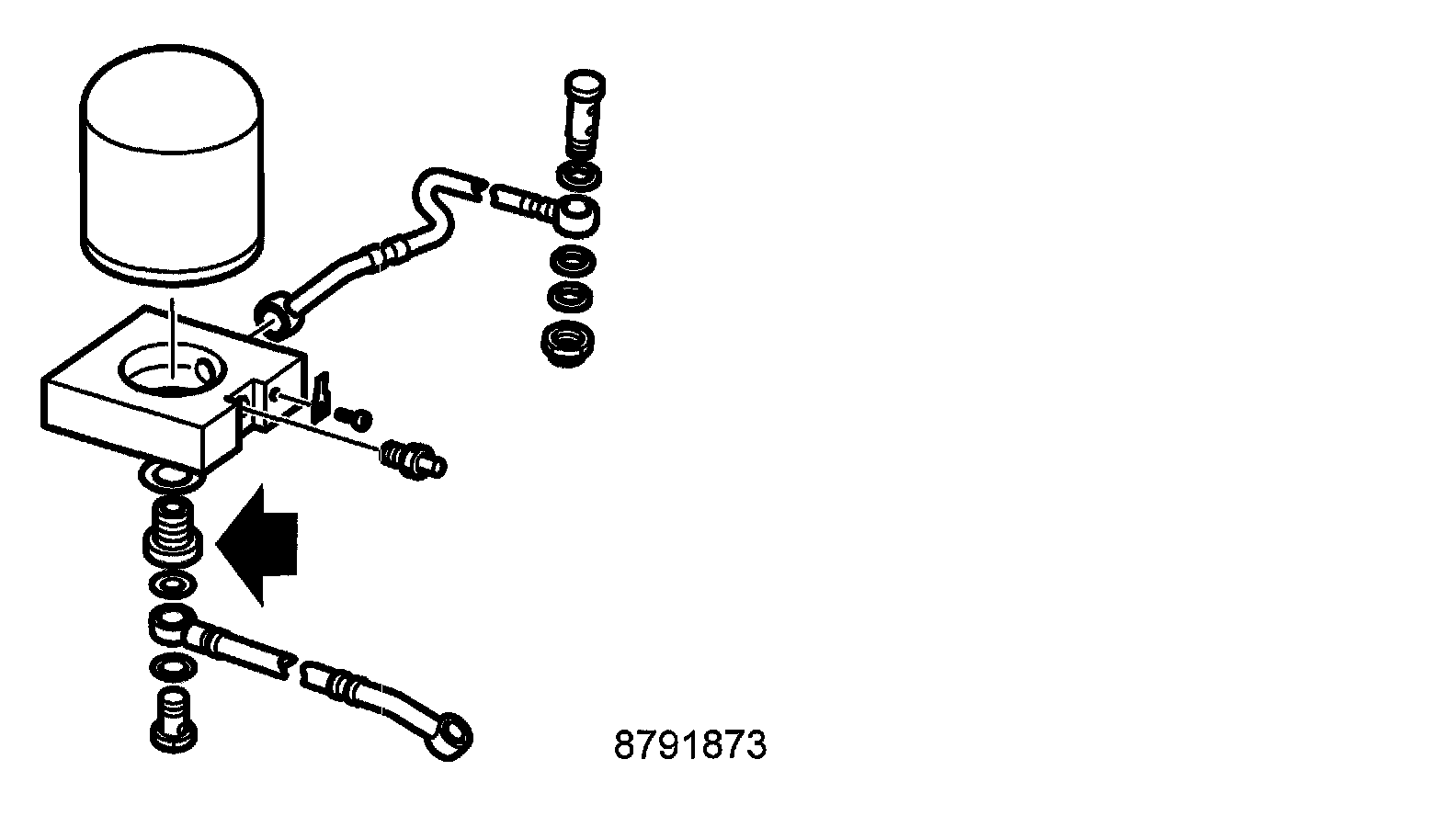

87 91 873 Nipple
Spare part
Used together with 87 91 824 Flushing equipment
Group: Automatic transmission

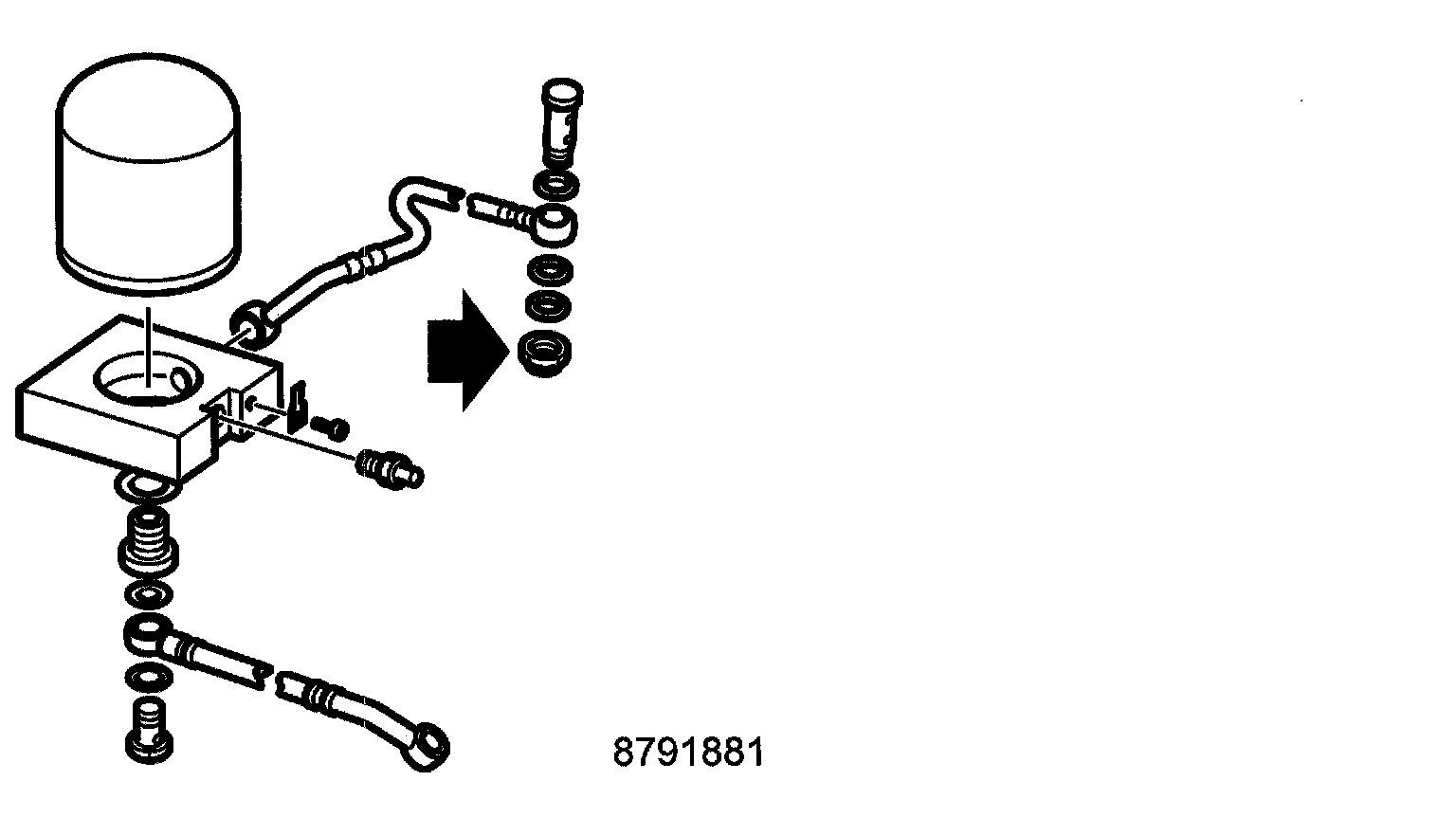

87 91 881 Nut
Spare part
Used together with 87 91824 Flushing equipment
Group: Automatic transmission

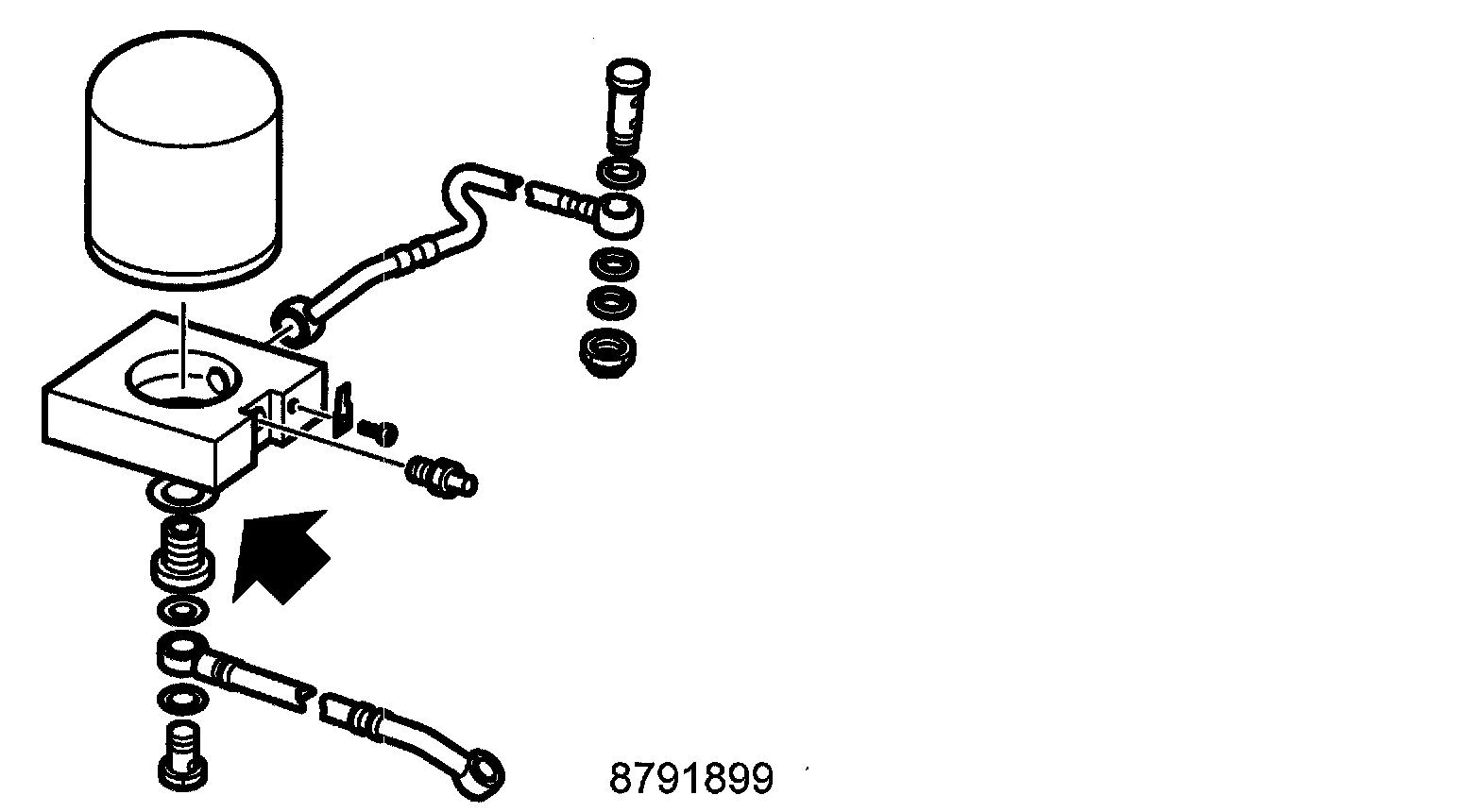

87 91 899 Gasket
Spare part
Used together with 87 91 824 Flushing equipment
Group: Automatic transmission

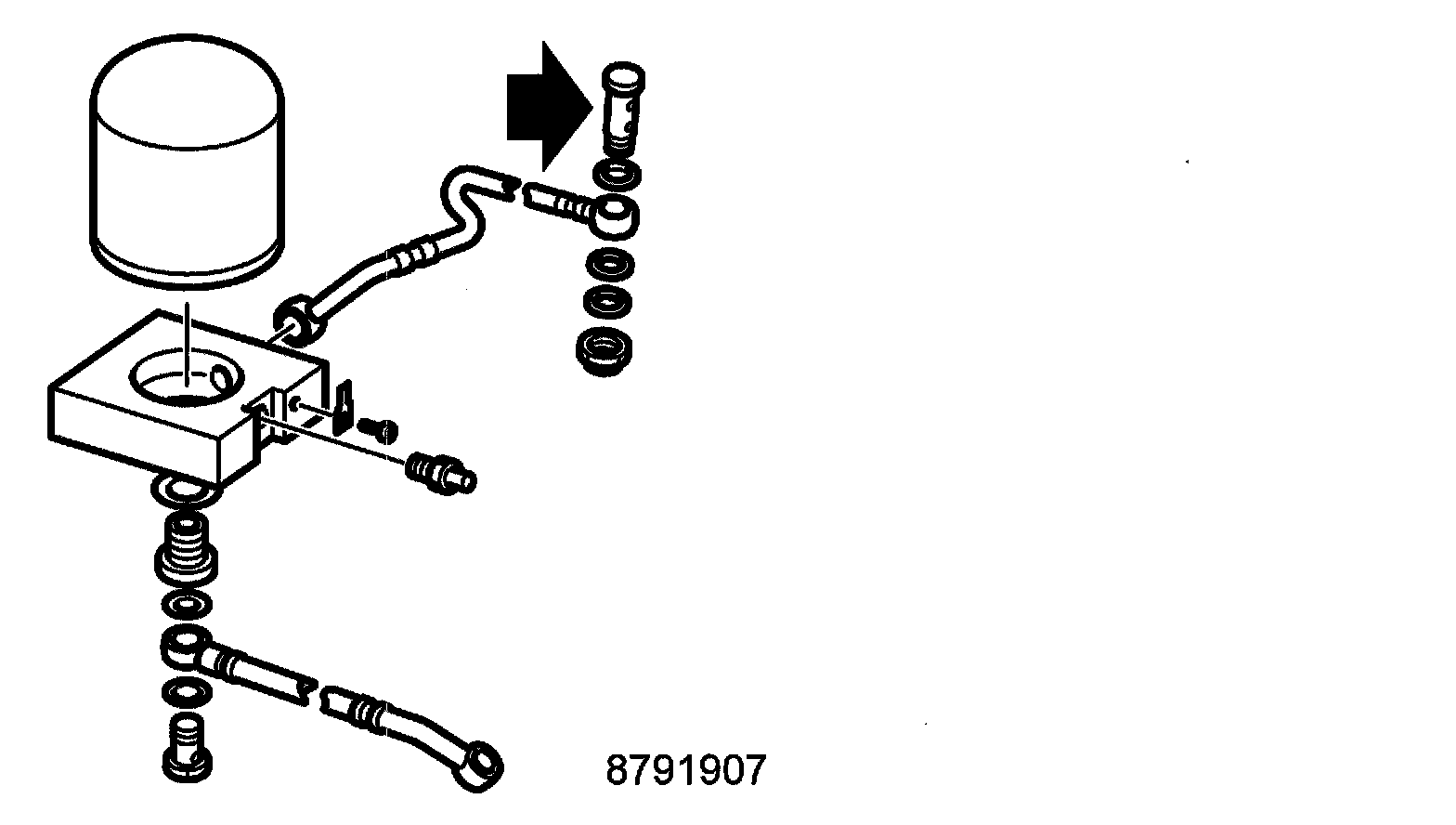

87 9l 907 Screw
Spare part
Used together with 87 91 824 Flushing equipment
Group: Automatic transmission

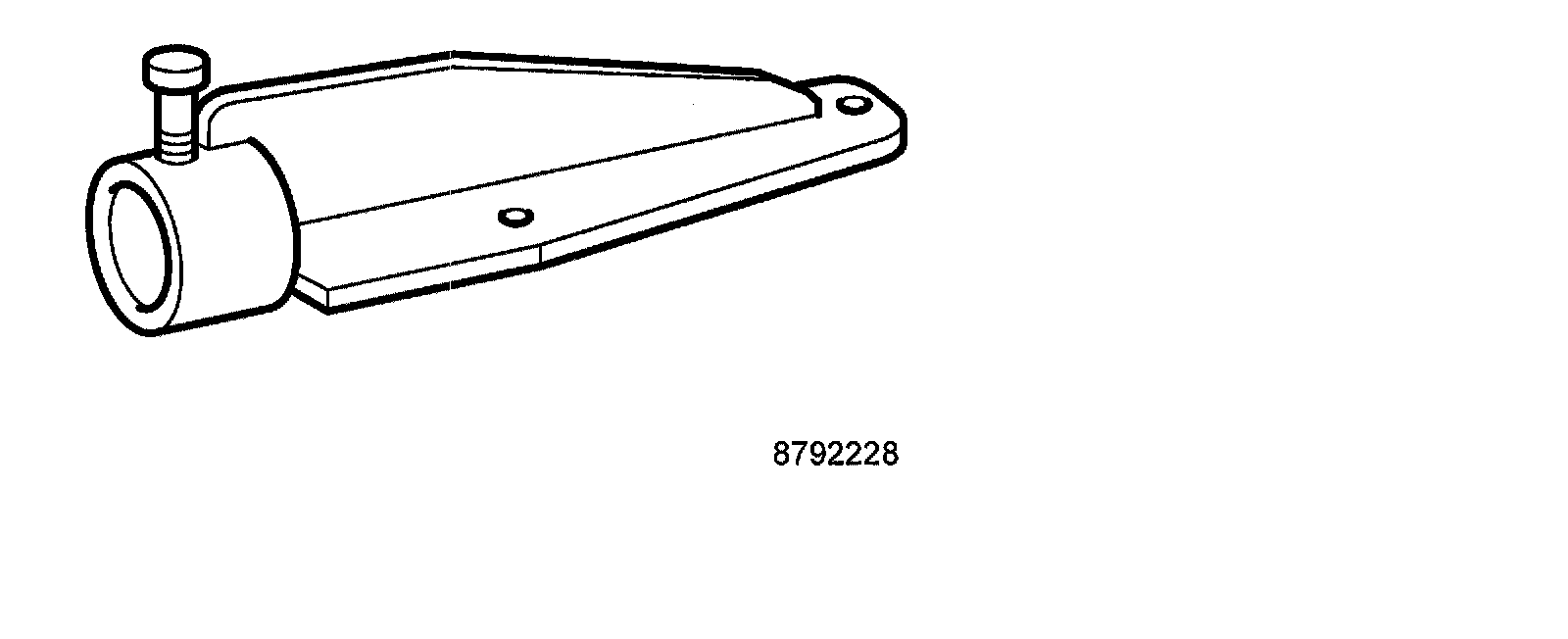

87 92 228 Holder, transmission
86 11 568 Toolboard T6
Use with 78 74 878 Floor stand
Group: Manual gearbox, Automatic transmission

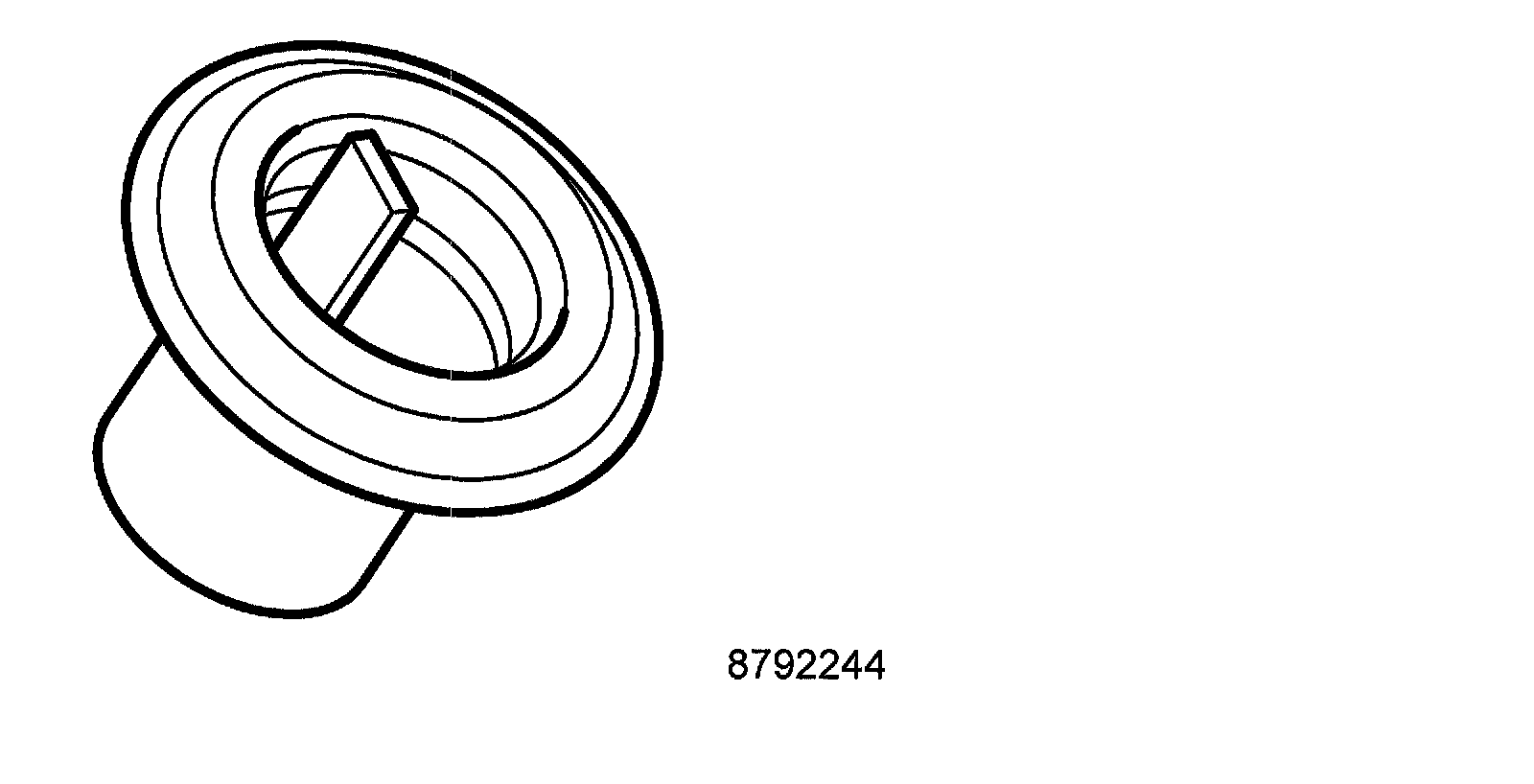

87 92 244 Protective plugs, F25 drive shaft hole
86 11 584 Tool board T4
Group: Manual gearbox, automatic transmission

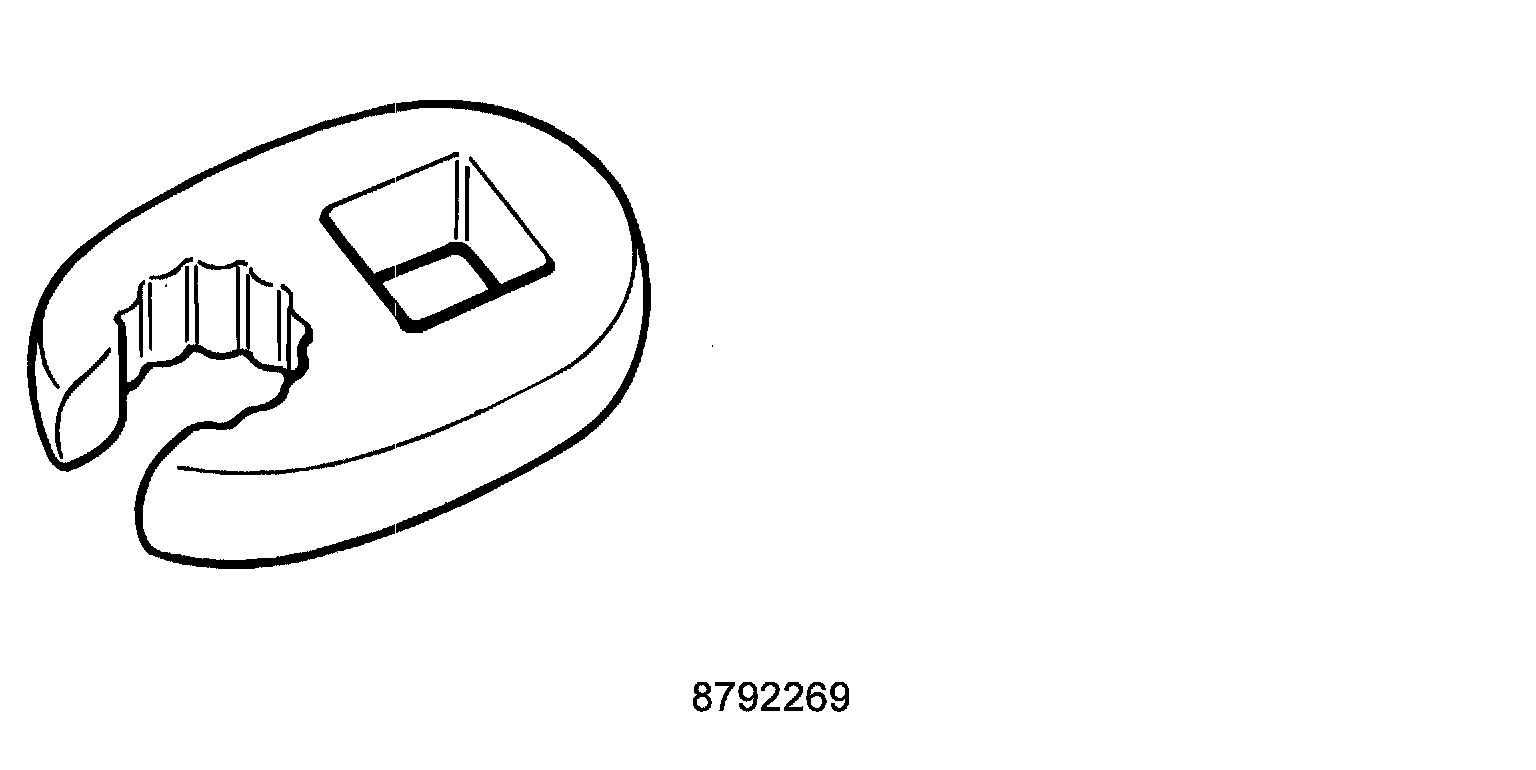

87 92 269 Adjusting tool, selector lever cable
86 11 618 Tool board T1
Group: Automatic transmission






87 92 277 Holder
For torque converter, 4 cyl
86 11 618 Tool board T1
Group: Automatic transmission






87 92 301 Adapter, ail pressure kit
Used together with 87 91 600 Pressure gauge equipment
Group: Engine, Automatic gearbox






87 92 350 Puller/ drive shaft seal
86 11, 592 Toolboard T5
Use with 87 91 683 Puller
Group: Automatic transmission






87 92 384 Puller, torque converter seal
Used also for removing oil pipe in gearbox
86 11 618, Toolboard T1
Used together with 83 90 270 sliding hammer
Group: Automatic transmission

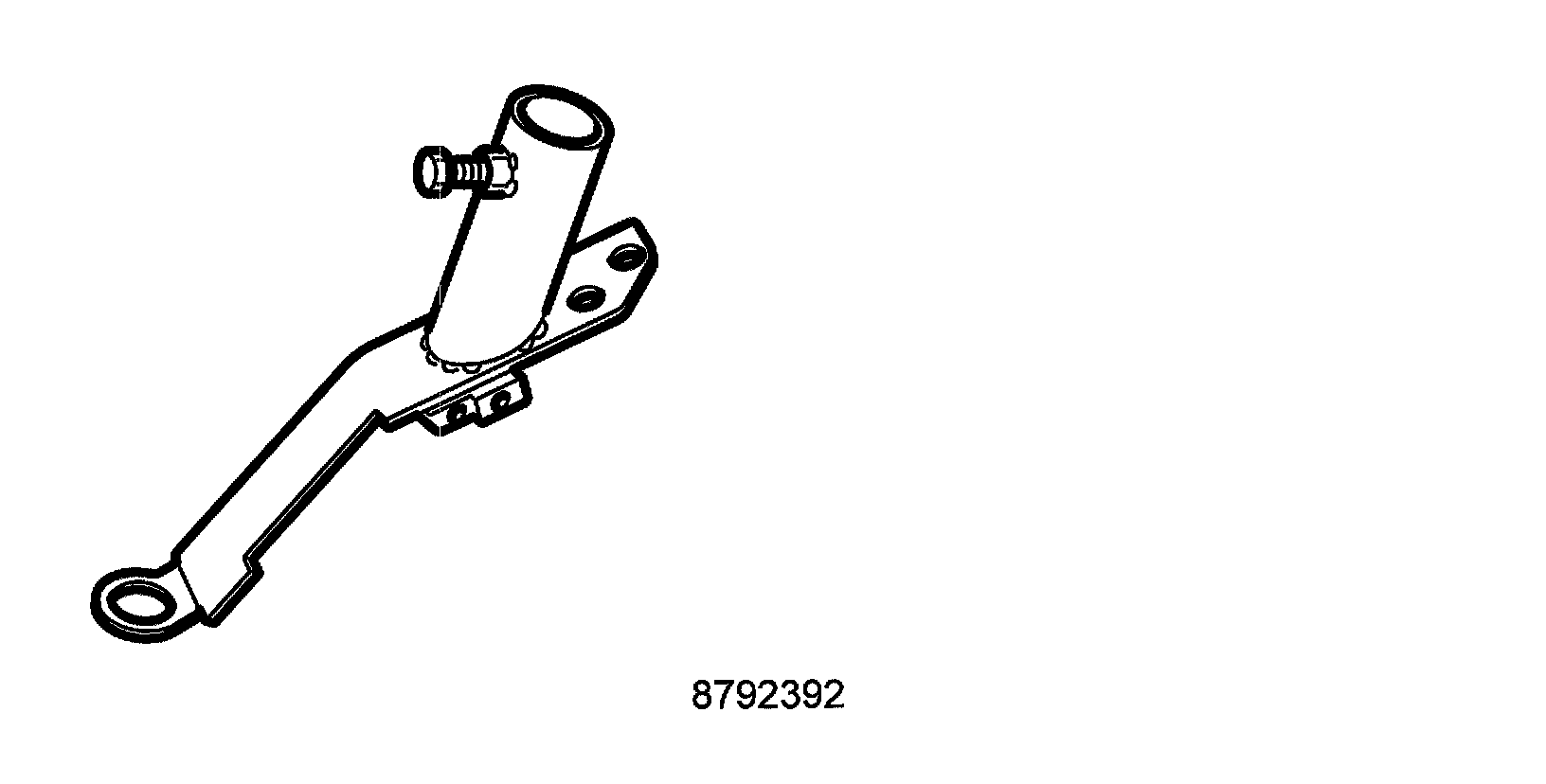

87 92 392 Holder, transmission
86 11 568 Tool board T6
Used together with 78 74 878 Floorstand
Group: Automatic transmission

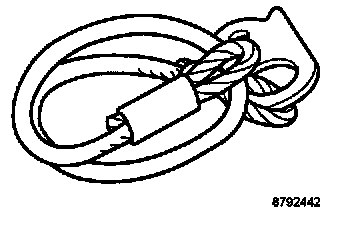

87 92 442 Lifting cable
86 11 618 Toolboard T1
Group: Manual gearbox, Automatic transmission






87 92 467 Setting tool, gear selector position sensor
Group: Automatic transmission

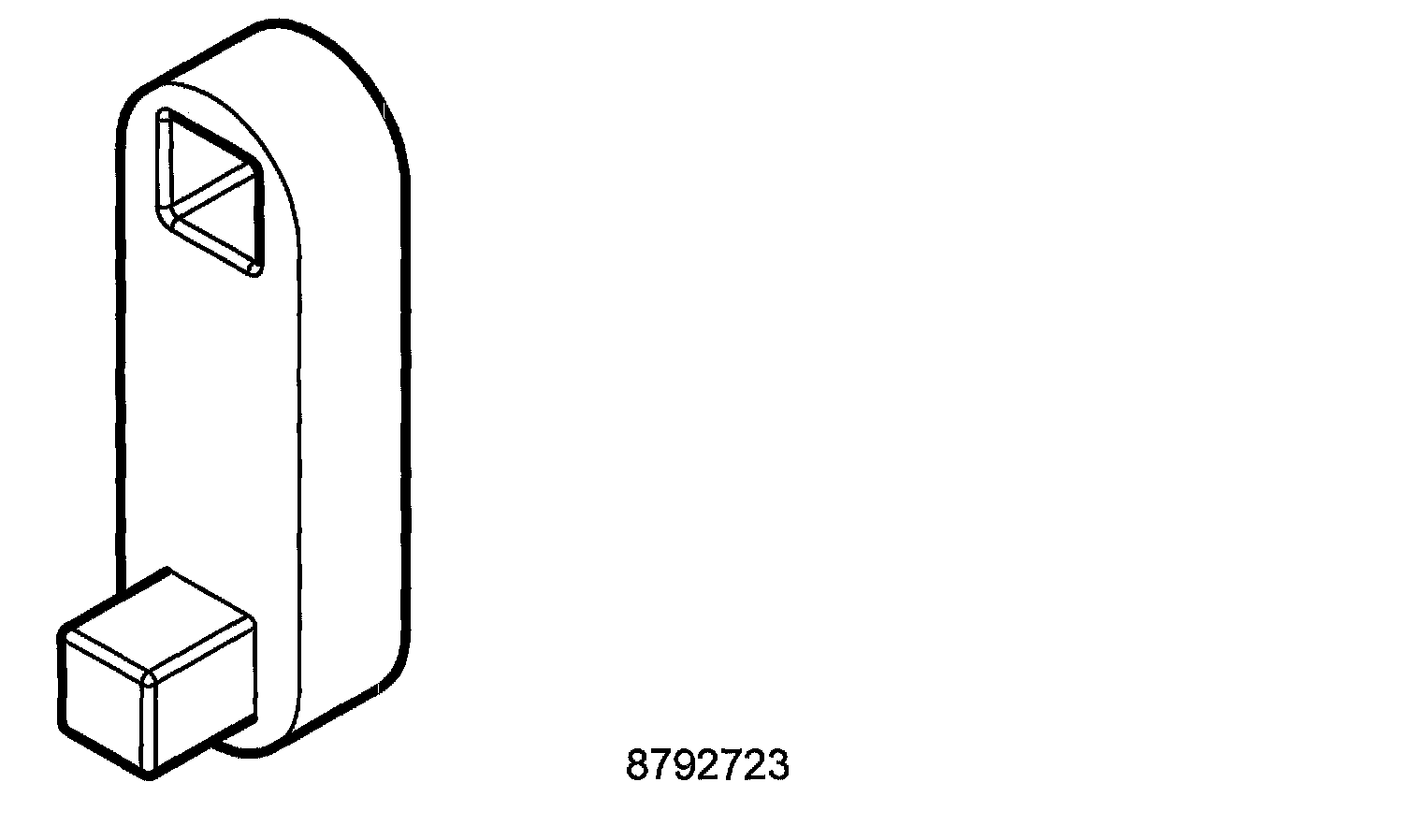

87 92 723 Access tool, bolt in joint between automatic transmission and engine
Group: Automatic transmission
