Diagnostic Procedures

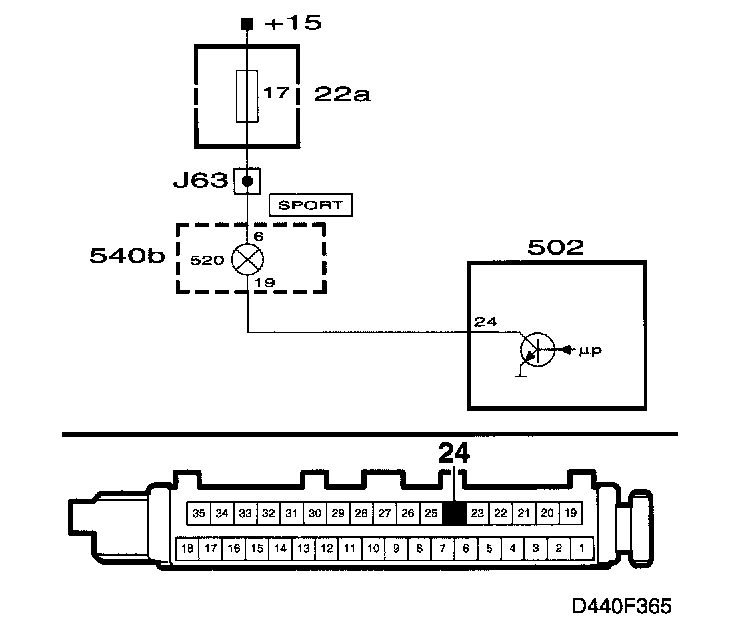

SPORT Indicator Lamp

Fault symptoms
The lamp does not go on or is on constantly.






Diagnostic procedure

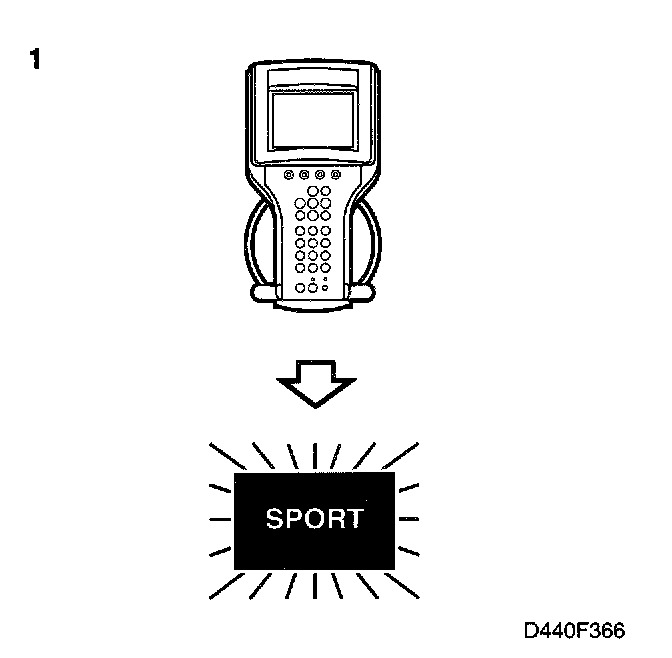

1 Check the lamp
- Connect a diagnostic tool.
- Select "Activate"
- Select "Sport lamp"

Does the lamp work?
YES
Rectify the relevant lead and continue with step 2.
NO
Change the bulb, and continue with step 2.

2 Final check
- Clear all diagnostic trouble codes in the system.
- Perform a check of functionality.

All OK?
YES
The steps taken to rectify the fault were correct.
NO
Continue with Fault diagnosis, general, "Before changing a control module." Tech 2 Scan Tool
