Diagnostic Procedures

No Diagnostics Communication

Fault symptoms
No diagnostics communication

Conditions

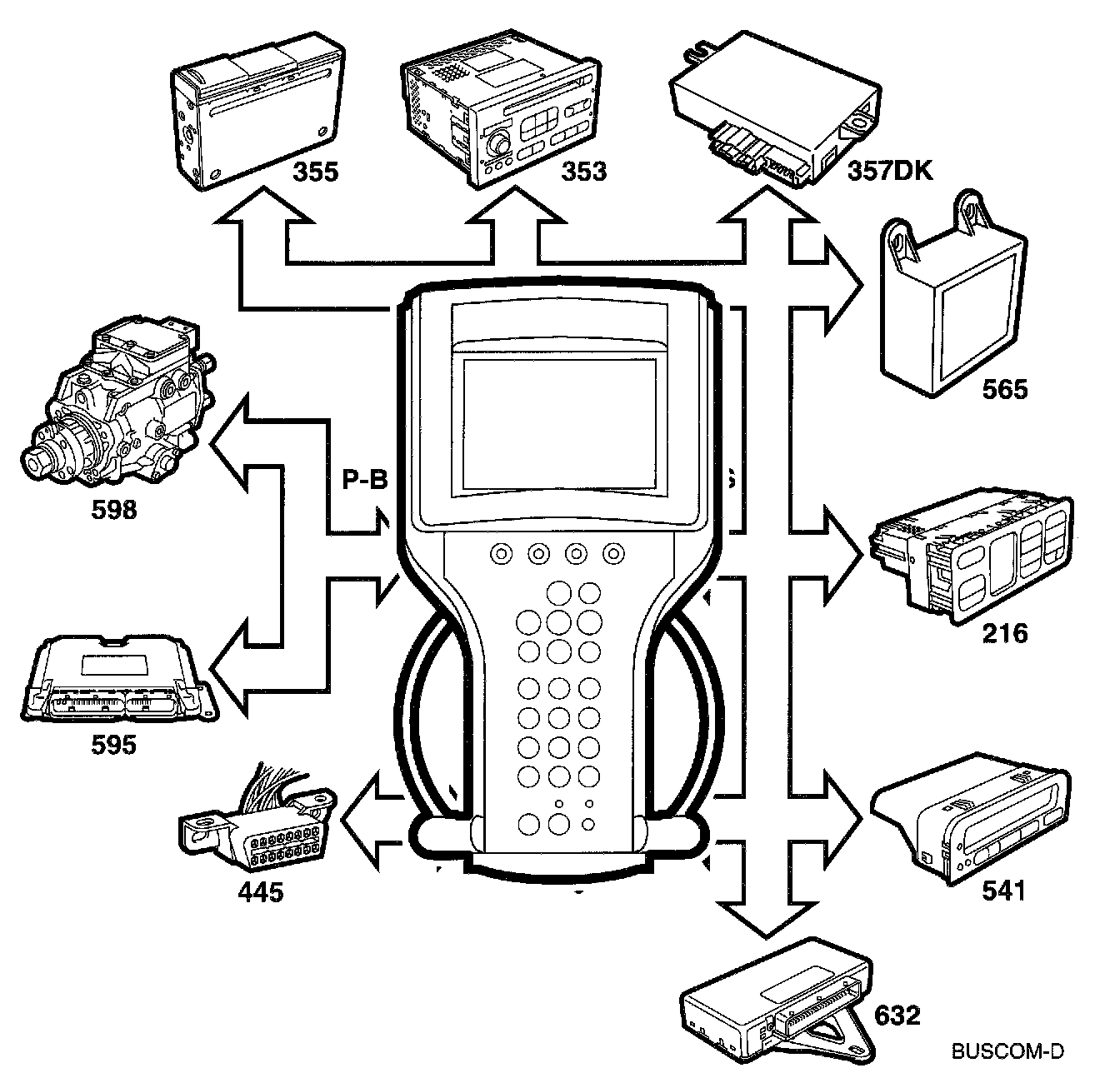

The fault may be caused by the absence of +15 or ground to the control module, or a fault in the communications lead between the ABS control module and the data link connector.

Diagnostic help
See Testing and Inspection/Procedures, "Diagnostic Communication." Testing and Inspection
