Checking Hydraulic Pressure

IMPORTANT: This test must not be carried out for longer than 5 seconds! It is not recommended for turbo variants.

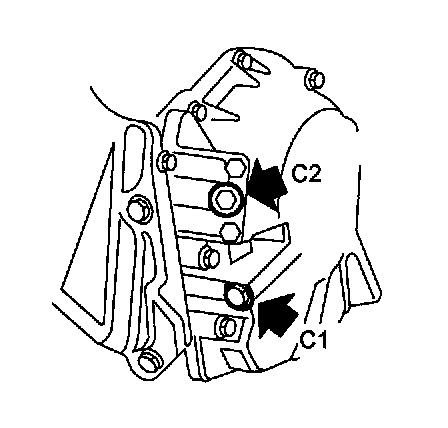

1. Remove the test plug from the transmission casing and connect an oil pressure gauge.

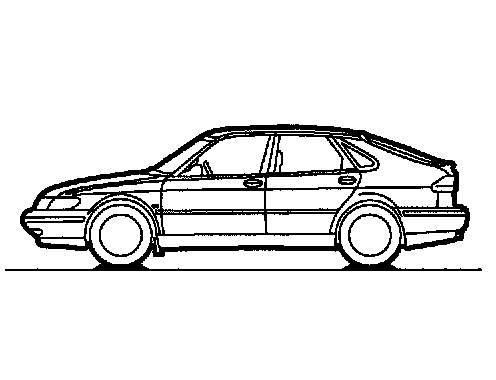

2. Chock all four wheels on the car.

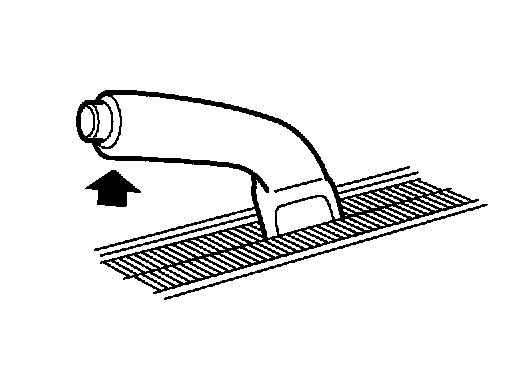

3. Apply the handbrake fully.

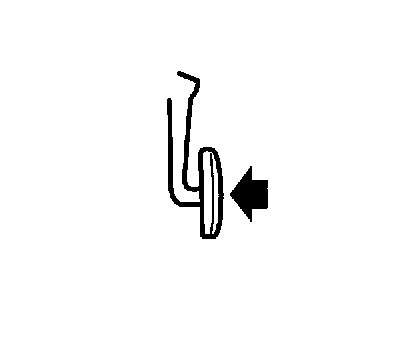

4. Press the brake pedal down hard.

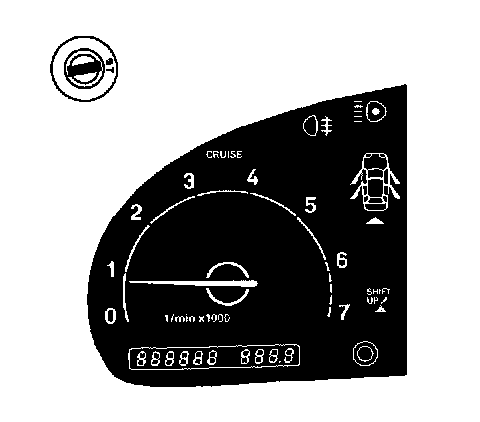

5. Start the engine and check the idling speed: 900 rpm.

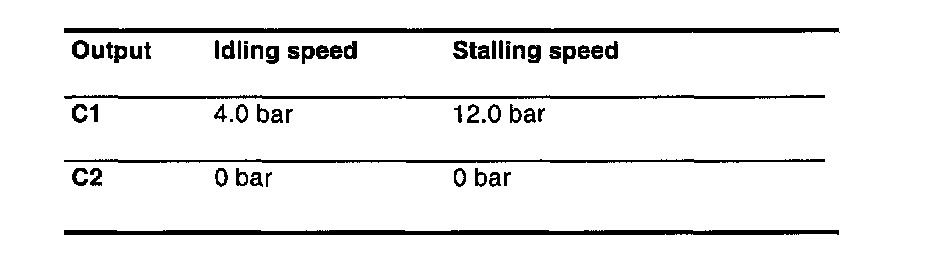

Stall Speeds in forward gears





6. Move the selector lever to position D and check the system pressure as indicated in the table.

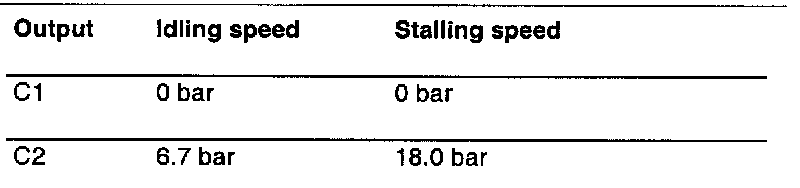

Stall Speeds in reverse gear

7. Move the selector lever to position R and check the system pressure as indicated in the table.
