Jalousle With Indicator Display

Jalousle With Indicator Display

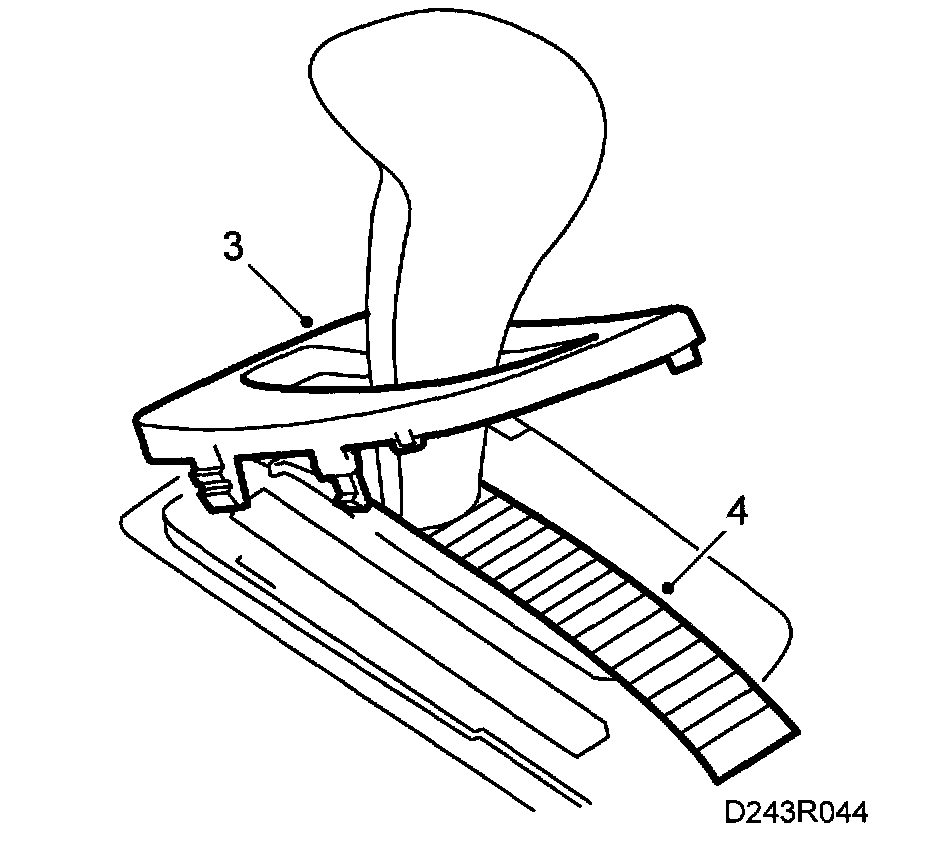

To remove
1. Remove the rim around the indicator display.
2. Dismantle the selector lever casing, see ->.





3. Lift up the indicator display.
4. Remove the jalousie with indicator display.

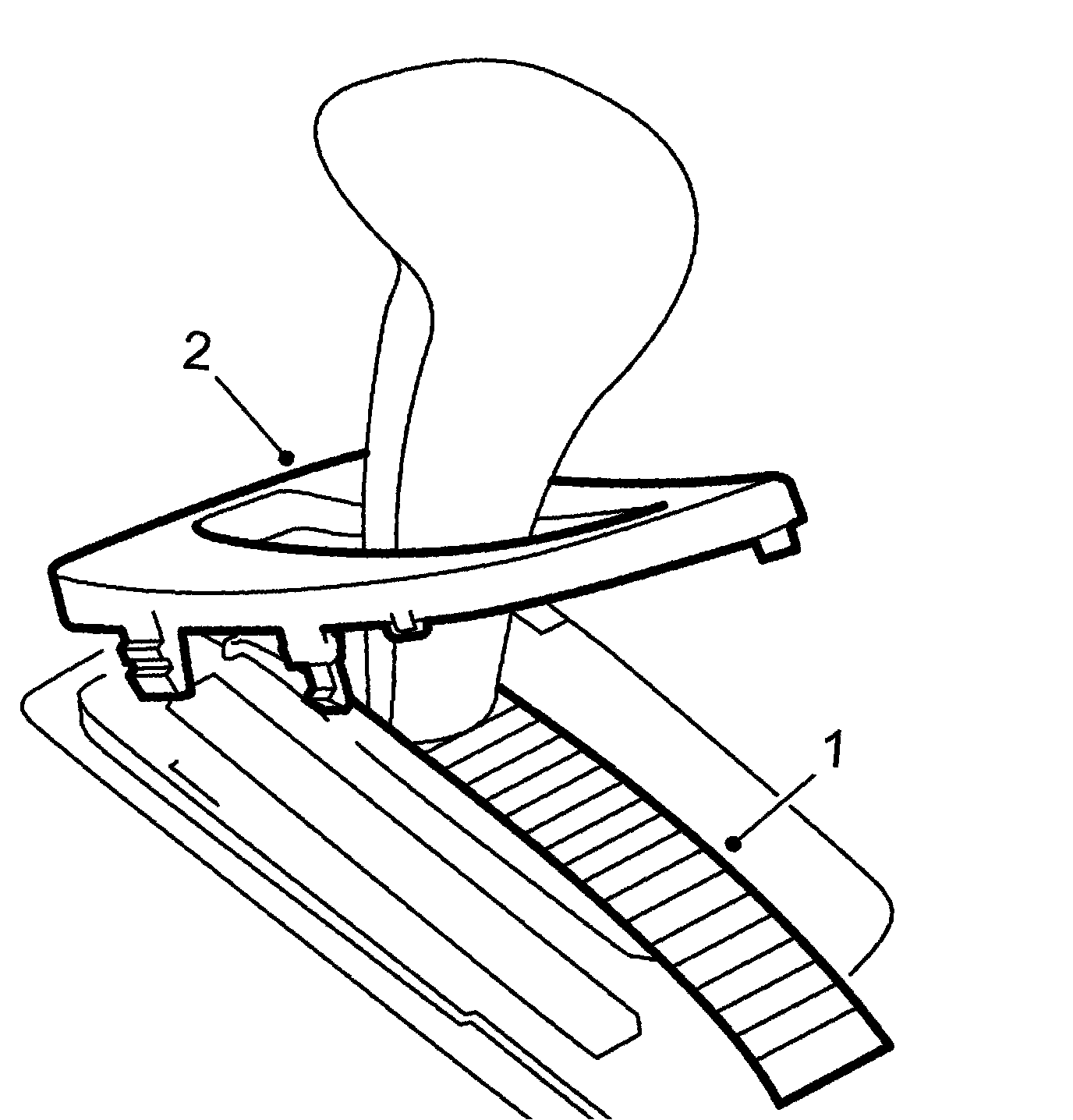

To fit
1. Fit the jalousie with indicator display. The mat side of the indicator strip must be facing upwards.





2. Press on the indicator display.
3. Assemble the selector lever casing, see ->.
4. Fit the rim around the indicator display.
