Indicator Display

Indicator Display

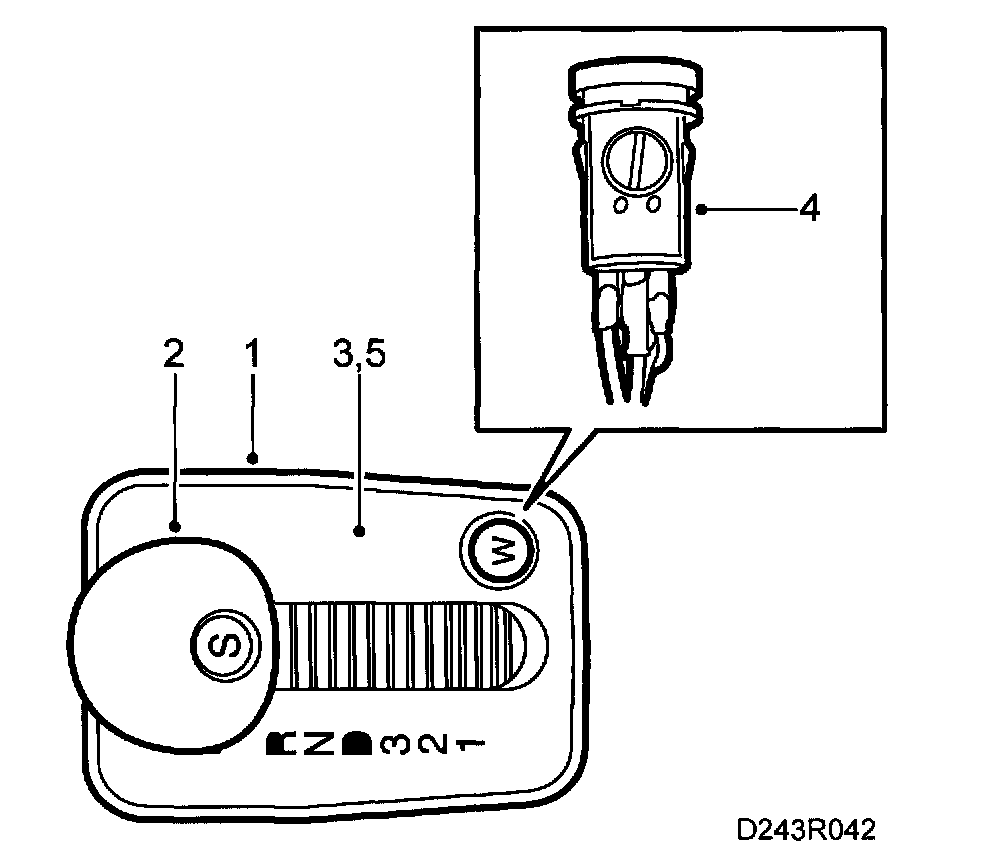

To remove





1. Remove the rim around the indicator display.
2. Dismantle the selector lever casing, see ->.
3. Lift up the indicator display.
4. Unsolder the WINTER button, see ->.
5. Lift off the indicator display.

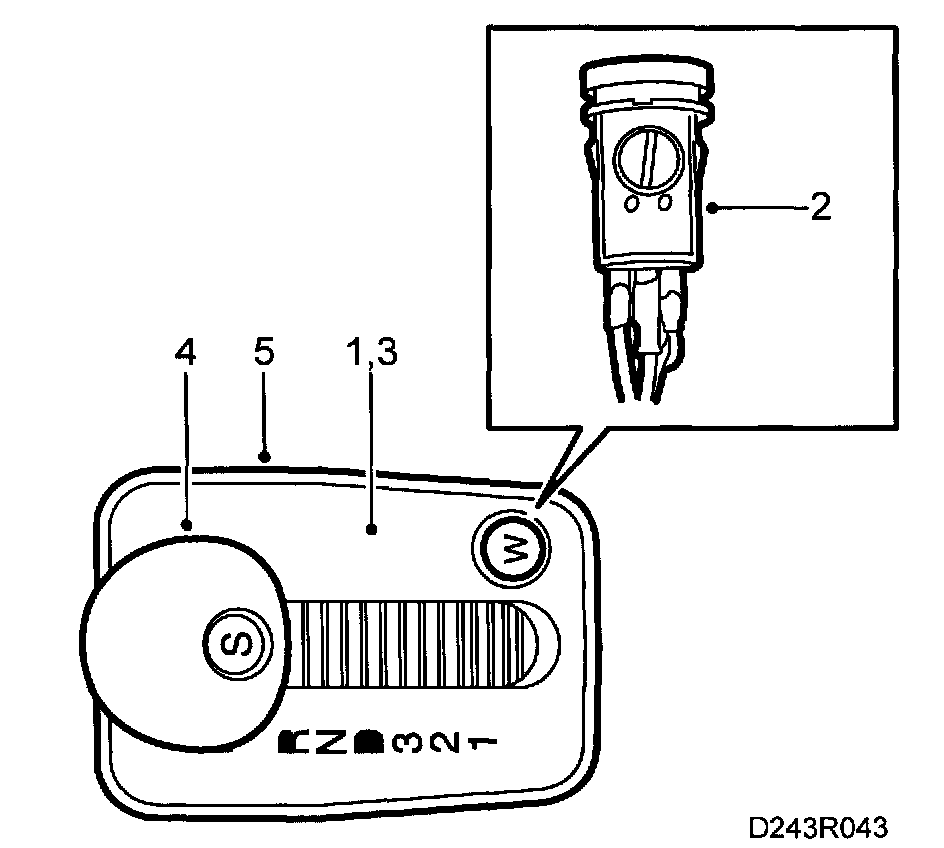

To fit





1. Place the indicator display over the lever.
2. Solder on the WINTER button, see ->.
3. Press on the indicator display.
4. Assemble the selector lever casing, see ->.
5. Fit the rim around the indicator display.
