Checking and Adjustment, Selector Lever Cable

Checking And Adjustment, Selector Lever Cable

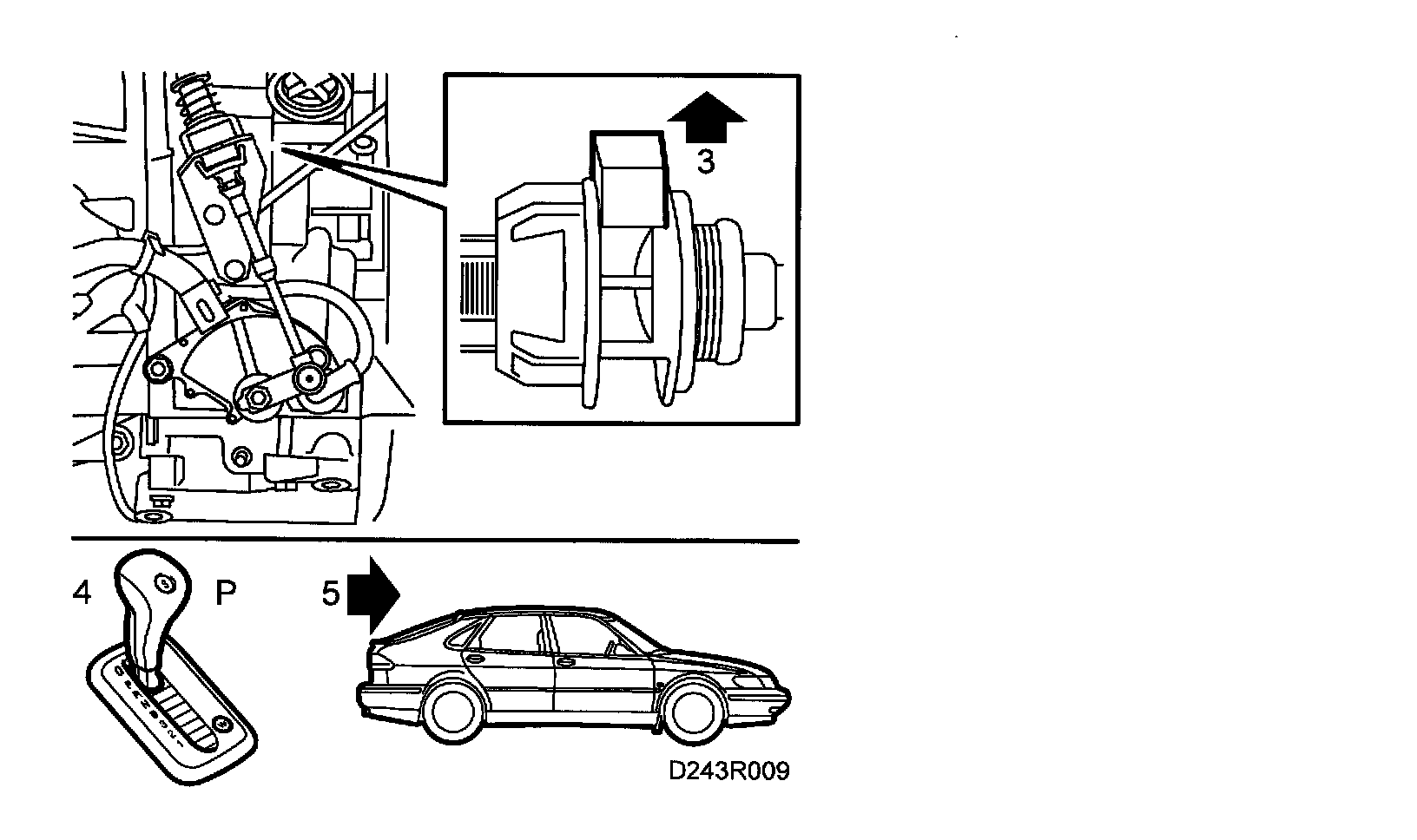

1. Check that the play in the selector lever is the same in position N as in position D. If it is not, adjust the cable as follows.
2. Move the selector lever to position P (inside the car).





3. Lift up the cable adjustment clasp.
4. Move the selector lever to position P.
5. Roll the car until the P interlock engages.
6. Press the selector lever (in the car) backwards and press down the adjustment clasp so that it locks the cable ferrule.

Note: There is play in position P (inside the car). Press the selector lever backwards while pressing down the clasp.

7. Make sure the play in position N and D is the same.
