Differential Side Seal, Automatic Transaxle

To remove
1. Right side: Remove the intermediate shaft.
Left side: Tilt out the drive shaft.

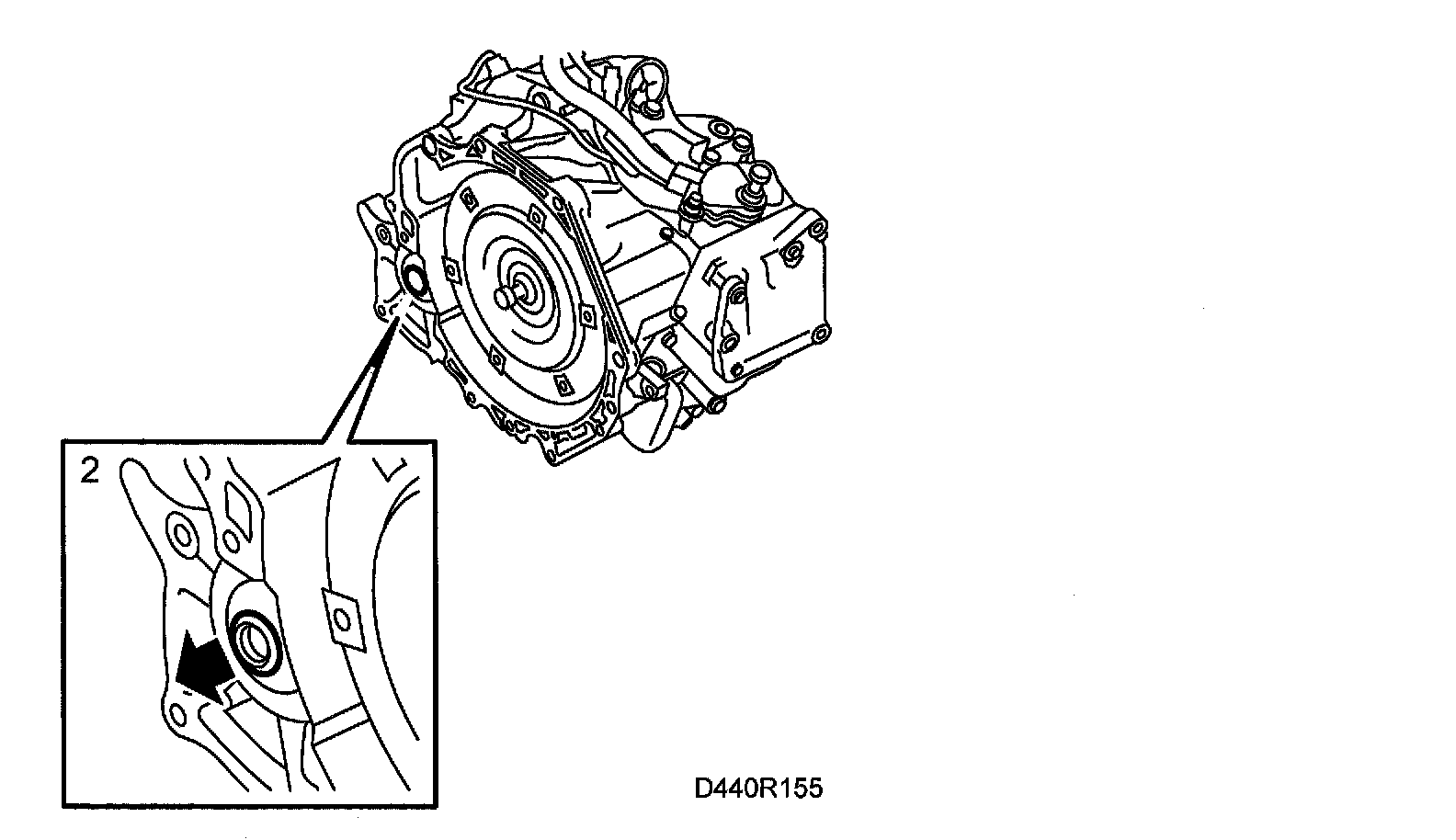

2. Remove the seal using a large, bent screwdriver.

To fit

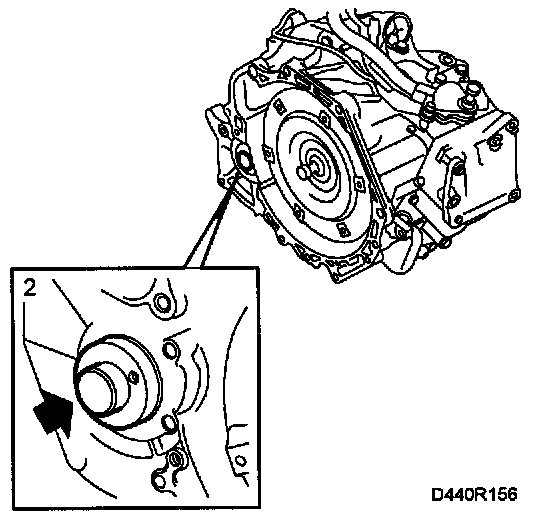

1. Lubricate the new seal and fit it using special tool 83 90 122.





2. Right side: Fit the intermediate shaft.
Left side: Position the drive shaft.
