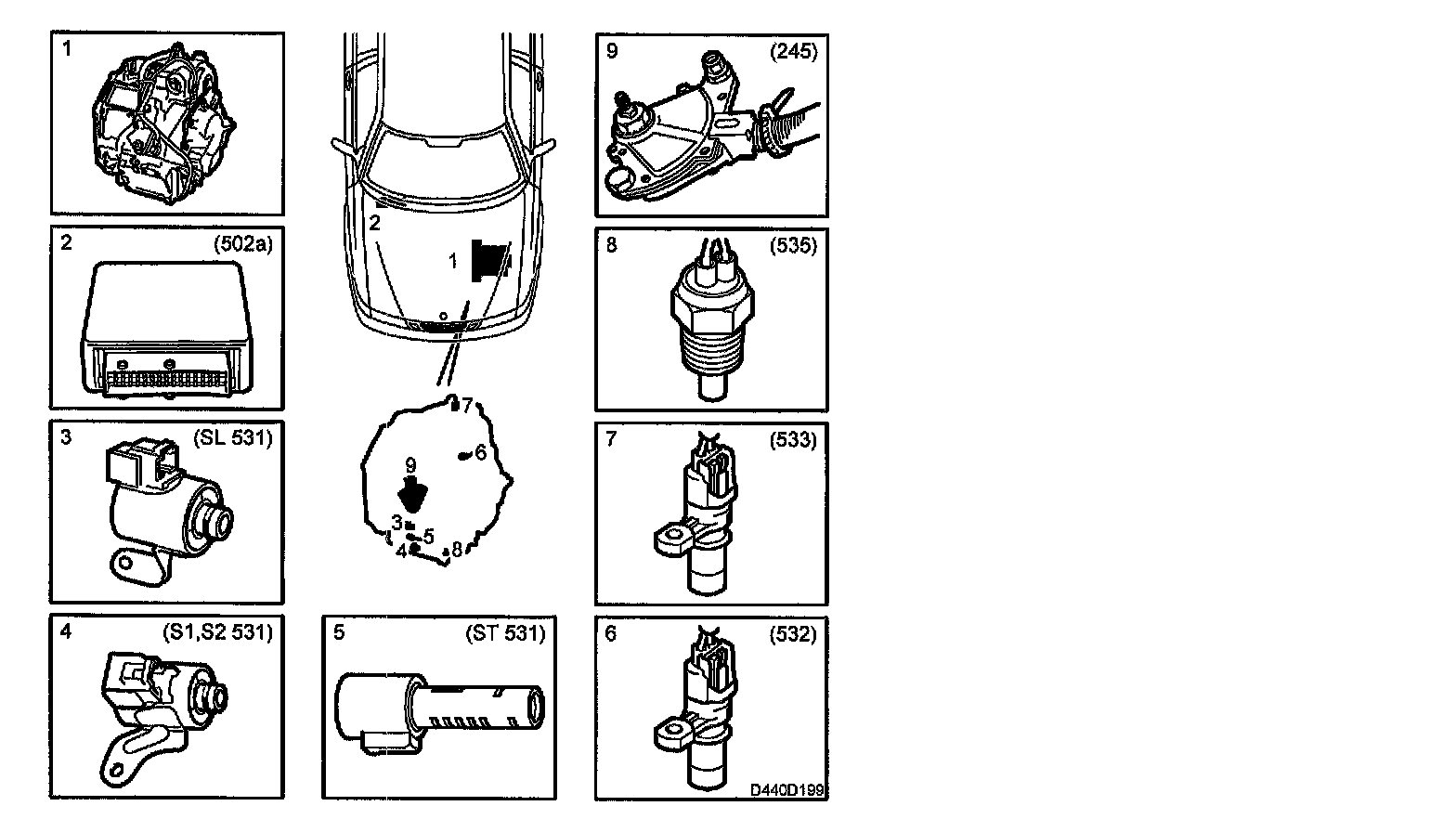

Main Components

The automatic transmission consists of the following main components.

1. Automatic transmission

2. Control module, (TCM) 502

3. Solenoid valves for shifting, (S1 and S2) 531

4. Solenoid valve for Lock-up, (SL) 531

5. Solenoid valve for system pressure, (ST) 531

6. Input shaft speed sensor, 532

7. Output shaft speed sensor, 533

8. Transmission fluid temperature sensor, 535

9. Selector lever position sensor, 245
