Control Module Ground

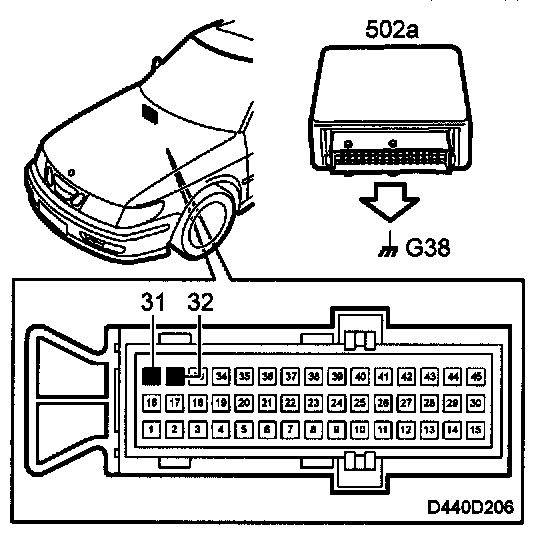

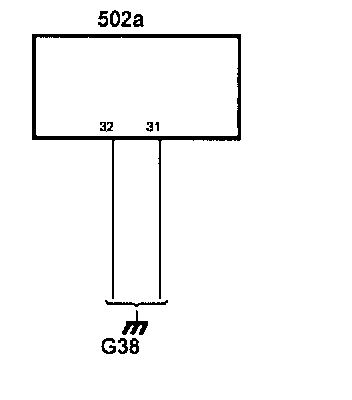

The control module is grounded through pin 31 and pin 32 to grounding point G38.
The grounding points are connected internally.

Diagnostics





If there is no ground connection, communication with the TCM will not be possible. No diagnostic trouble code is generated. TCM in Limp-Home mode.
