Plot

On the basis of the list of all available read values, an example of how the "Plot" function can be used is given below.

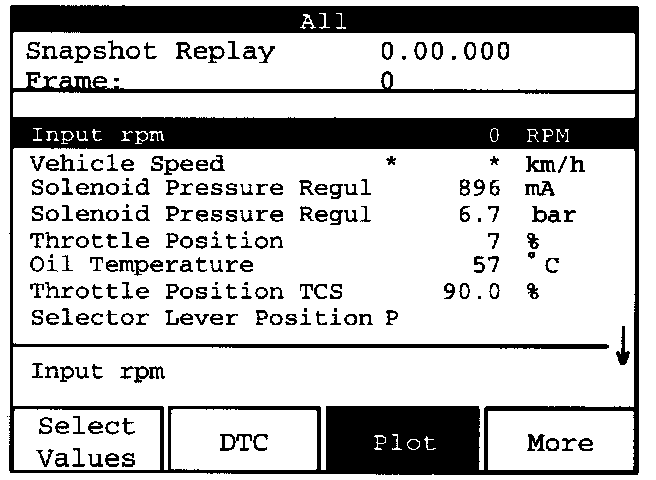

Press the "Plot" display key to access the list of values which can be displayed in "Plot" form.





Select up to 3 items for displaying simultaneously in "Plot" form. Position the cursor on the desired value and press "ENTER" to select it. The selected value will be marked with an asterisk "*" at the beginning of
the line.

The selected value can be removed by positioning the cursor on it and pressing "ENTER". When 3 values have been selected, one of the values must be removed before a new value can be selected.

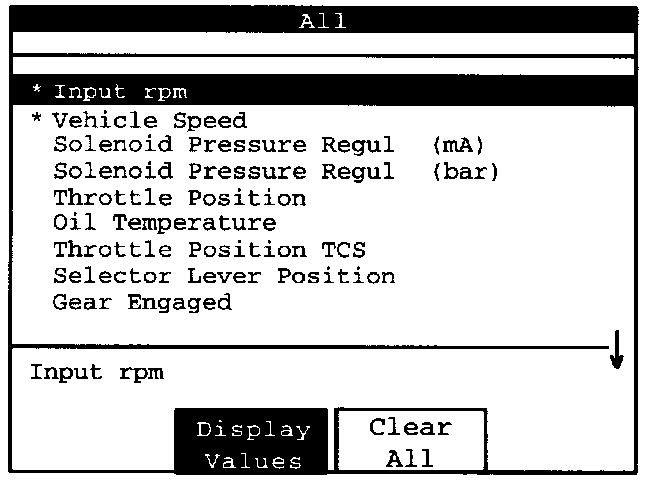

Select "Input rpm" and "Vehicle Speed".
Then press the "Display Values" display key to activate "Line Graph".





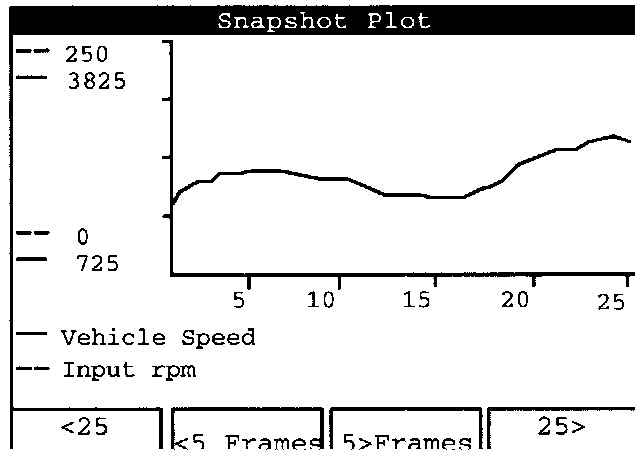

The values that are displayed are given on the left under Plot. The continuous line and broken line respectively on the left of the parameter name indicate which curve shows which parameter (value).

In this example the continuous line indicates "Input rpm" and the broken line shows "Vehicle Speed".

The minimum and maximum values on the vertical scale are differentiated in the same way.

The horizontal scale shows how many "Frames" of the values concerned have been retrieved since the "Snapshot" function was activated.

The maximum and minimum values that have been obtained in respect of the marked value during the current recording are shown at bottom left in the display.

<25 Frames
Press the "<25 Frames" display key to show the values concerned in "Plot" form 25 steps earlier in the recording.

<5 Frames
Press the "<5 Frames" display key to show the values concerned in "Plot" form 5 steps earlier in the recording.

5>Frames
Press the "5> Frames" display key to show the values concerned in "Plot" form 5 steps further on in the recording.

25>Frames
Press the "25 >Frames" display key to show the values concerned in "Plot" form 25 steps further on in the recording.

Press "EXIT" to return to the "Plot" list. Press "EXIT" again to return to the read values list.
