System Overview

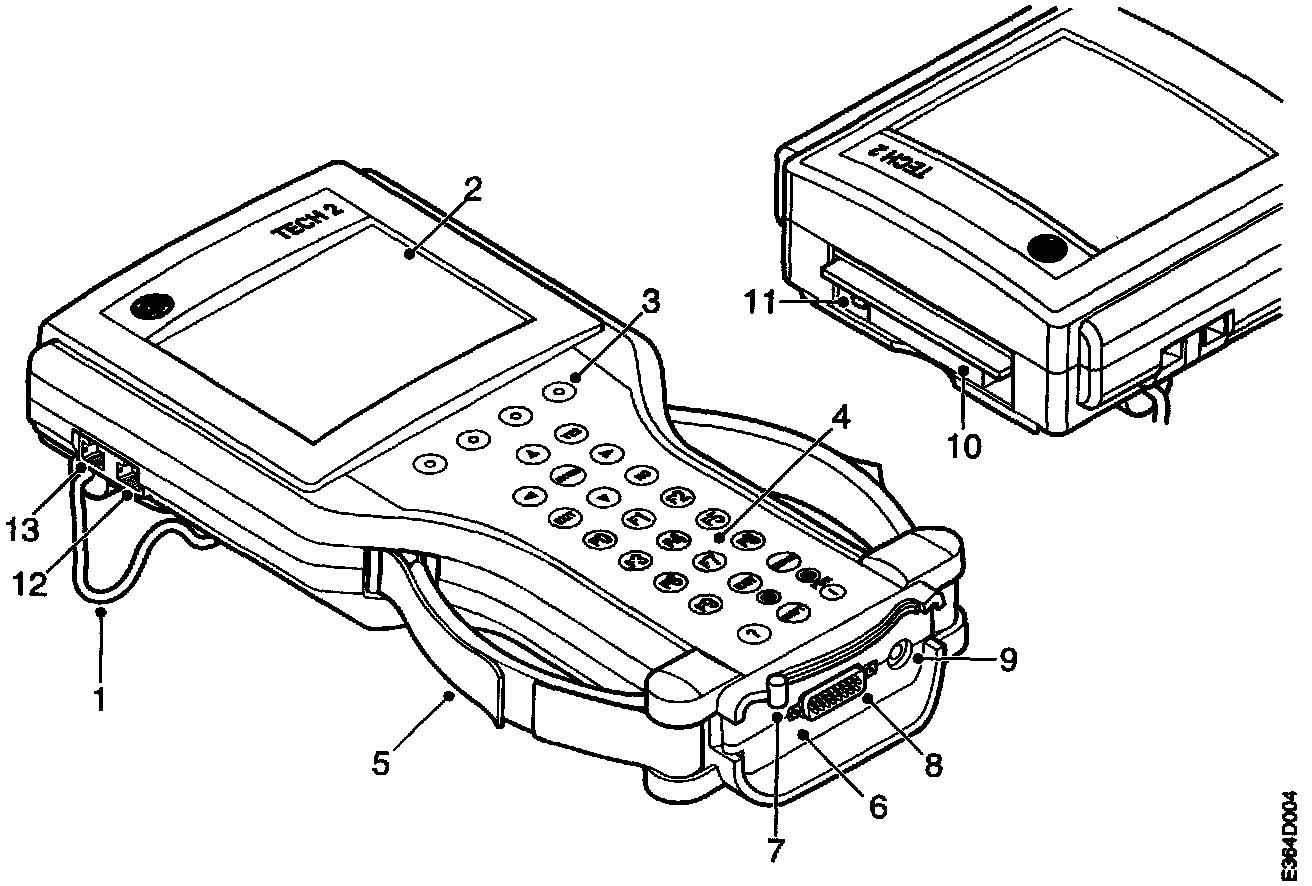

The main components are:
1. Support
2. Display
3. Display keys
4. Keypad
5. Adjustable hand clasps
6. Communications module (VCI)
7. Locking arm for communications module
8. Connector for diagnostics cable
9. Socket for power supply plug
10. Port for PCMCIA card
11. Release button for PCMCIA card
12. RS232 communications port
13. RS485 communications port

1 Support
The support can also be folded out 90° or 180° when the instrument is used on a flat surface or in a suspended position.

2 Display
Large LCD display showing 16 rows of 40 characters.

3 Display Keys
Four display keys providing different functions, depending on which system is used.

4 Keypad
Keypad with diaphragm which keeps grease and liquids from entering the instrument.

5 Adjustable Hand Clasps
Adjustable hand clasps with Velcro fasteners for easy adjustment to give the best grip.

6 Communications Module (VCI)

7 Locking Arm For Communications Module
Locking arm for securing a communications module to the Tech 2.

NOTE: The communications module cannot be removed when the diagnostics cable is connected.

8 Connector For Diagnostics Cable
26-pin connector for diagnostics cable with threads for mounting screws.

9 Socket For Power Supply Plug
Socket for power supply from any of the power supply sources.

NOTE: When the Tech 2 is connected to the car, it should not be connected to any external power source.

10 Port For PCMCIA Card
Covered slot for PCMCIA memory card (Personal Computer Memory Card Industry Association).

11 Release Button For PCMCIA Card
Release button for PCMCIA card. The arrow on the button indicates which slot is in use.

12 RS232 Communications Port
The RS232 communications port is used when the Tech 2 is upgraded via a PC.

13 RS485 Communications Port
The RS485 communications port is not used at present.





Brief Description
The Tech 2 is a portable diagnostics instrument designed for fault diagnosis and adjustment of the car's electronic systems.

Power for the Tech 2 can be supplied:
^ via a cable from the vehicle's data link connector.
^ by connection with a battery cable.
^ via a cable from the vehicle's cigarette lighter socket.
^ from a wall outlet via a transformer.

The guarantee for the Tech 2 is in the form of a replacement programme, which in the shortest possible time ensures that this important item of equipment will be available at your workshop with the least possible delay.
