Cellular Phone and Antenna - Installation: Overview
SI No. 391-1965PI No.
Date: March 1999
Distr. US
9-3
Nokia hands-free mobile telephone and glass-mounted antenna installation
Cars affected
Saab 9-3 M99-
Background

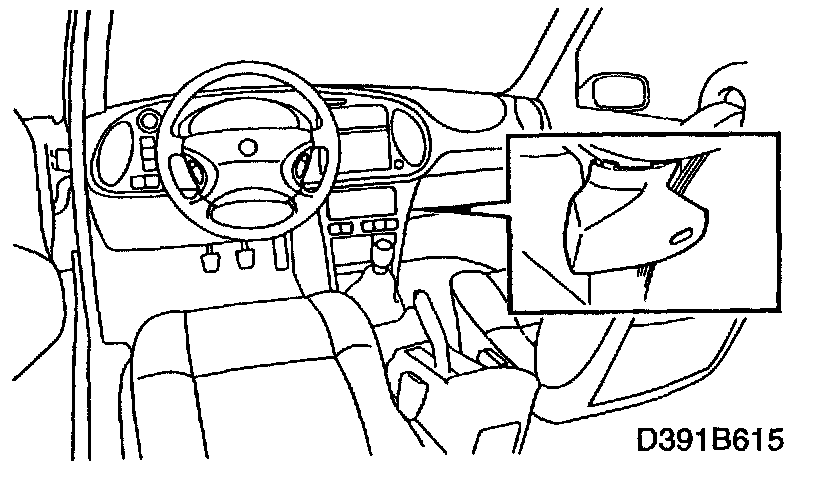

To facilitate the installation of a mobile telephone, the Saab 9-3 is pre-wired with a 10-pin wiring connector located at the right-hand side of the center console.
This SI provides a description of the system and its operation, recommended telephones and installation Instructions for those phones. It is intended to be given to an installer for use in installing these telephones in Saab 9-3 models.
READ THROUGH COMPLETE SI BEFORE BEGINNING INSTALLATION.

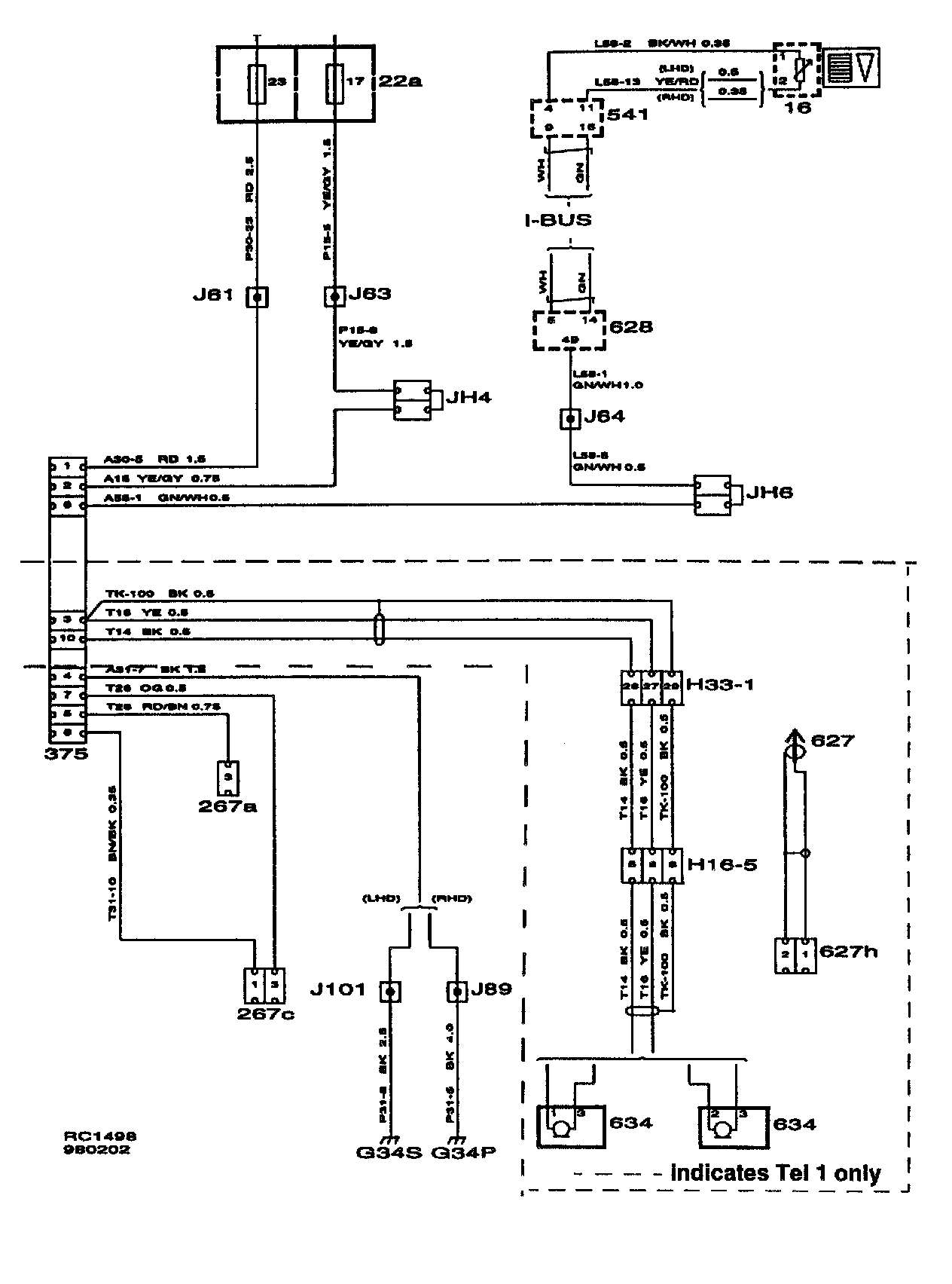

There are two different levels of pre-wiring:
^ Standard telephone connection (Tel 0)
^ Hands-free telephone connection (Tel 1)
NOTE:
Tel 1 only fitted on 9-3 SE 5-door models during M99 from X2000000 to X2020000.
Tel 0 is the designation for the telephone pre-wiring that includes the following functions:
1 Auto muting of the Saab's sound system for incoming and outgoing calls.
2 Power supply and battery recharging for the mobile telephone. Also charges the phone's battery even when the ignition is turned off.
3 The TELEPHONE message displayed on SID during the telephone call.
Tel 1 is the designation for the telephone pre-wiring that includes all of the functions of Tel 0 plus:
^ Telephone sound is broadcast through the audio system, with adjustable volume control.
^ Pre-wired microphone in the rear view mirror console
^ Telephone antenna cable. Note: the pre-wired antenna cable ends are not a standard U.S. configuration. Because of this, Saab Cars USA, Inc. recommends using a locally sourced antenna cable.
When any of the recommended phones are Installed, using the directions outlined in this S.I., the Tel 0 will have all the functions of the Tel 1. This will require the additional components supplied in the Nokia car adapter kit.
This SI contains detailed directions for connecting the following telephones:
- Nokia 2100 series: Models 2160, 2170, 2180, 2190
- Nokia 5100 series: Models 5120, 5160, 5170, 5180, 5190
- Nokia 6100 series: Models 6120, 6160, 6161, 6162, 6185, 6190
- Nokia Models 9000, 252 and 282
For other models of telephones, use the wiring diagram with the telephone and the hands-free kit diagrams supplied by phone manufacturer.
The following mobile telephone features are required to utilize all of these listed features:
1 A GROUNDED mute signal from the telephone when the phone is in use. This circuit is necessary to signal the audio system to mute the radio volume and look for input from the telephone.
2 External positive and negative speaker outputs so the sound from the telephone can be played through the car's stereo system speakers.
3 External microphone connection.
4 Provision for unswitched (B+), switched power, and ground.
Of the many types of mobile telephones that are available, Nokia is the make that has proven to be most compatible.
Nokia may be contacted directly at 1-888-NOKIA-2U, or at their website at www.shopnokia.com to help in finding the availability in your particular area.
Materials required for installation:

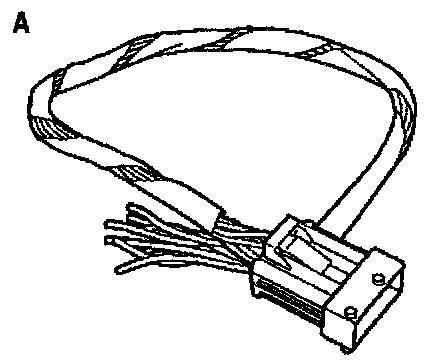

A Saab 10-pin Accessory Adapter cable 5036454
This adapter cable/pigtail allows connection to the 10-pin connector in the car's wiring harness.
B Saab phone mount 02 62 541
This allows the phone's cradle to be mounted in the right-hand side of the console.
C Antenna with cable (minimum 2 meters)

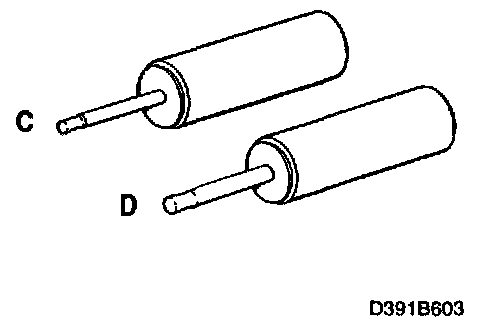

D 3.5 mm loudspeaker jack plug (mono) (purchase from Radio Shack, Cat. No. 274-286A - set of 2)
E 2.5 mm microphone jack plug (mono) (purchase from Radio Shack, Cat. No. 264-289C - set of 2) (TEL 1 ONLY)
F 3 mm heat shrink tubing, approx. 150 mm long
G Soldering gun, solder
H T25T Torx driver
I 10 mm socket/wrench
J Additional wiring as required
K In addition, a car adapter from Nokia for the specific model mobile telephone being installed will be required:
^ Nokia CARK-11US for 2100 series telephones
^ Nokia CARK-91US for 5100 and 6100 series telephones
^ Nokia CARK-90US for 252 model
^ Nokia CARK-103 for 9000 series
^ Nokia CARK-105 for 282 model
NOTE:
The Nokia phone installation kit may come with an additional handset to accommodate semi-private calls. Saab Cars USA, Inc. cannot recommend a location for this handset. It is best to ask the customer if, and where, they want it mounted. The handset does not have to be installed for proper phone operation.
