Rubber Bush, Rear Shock Absorber

To remove
1. Remove the damper.

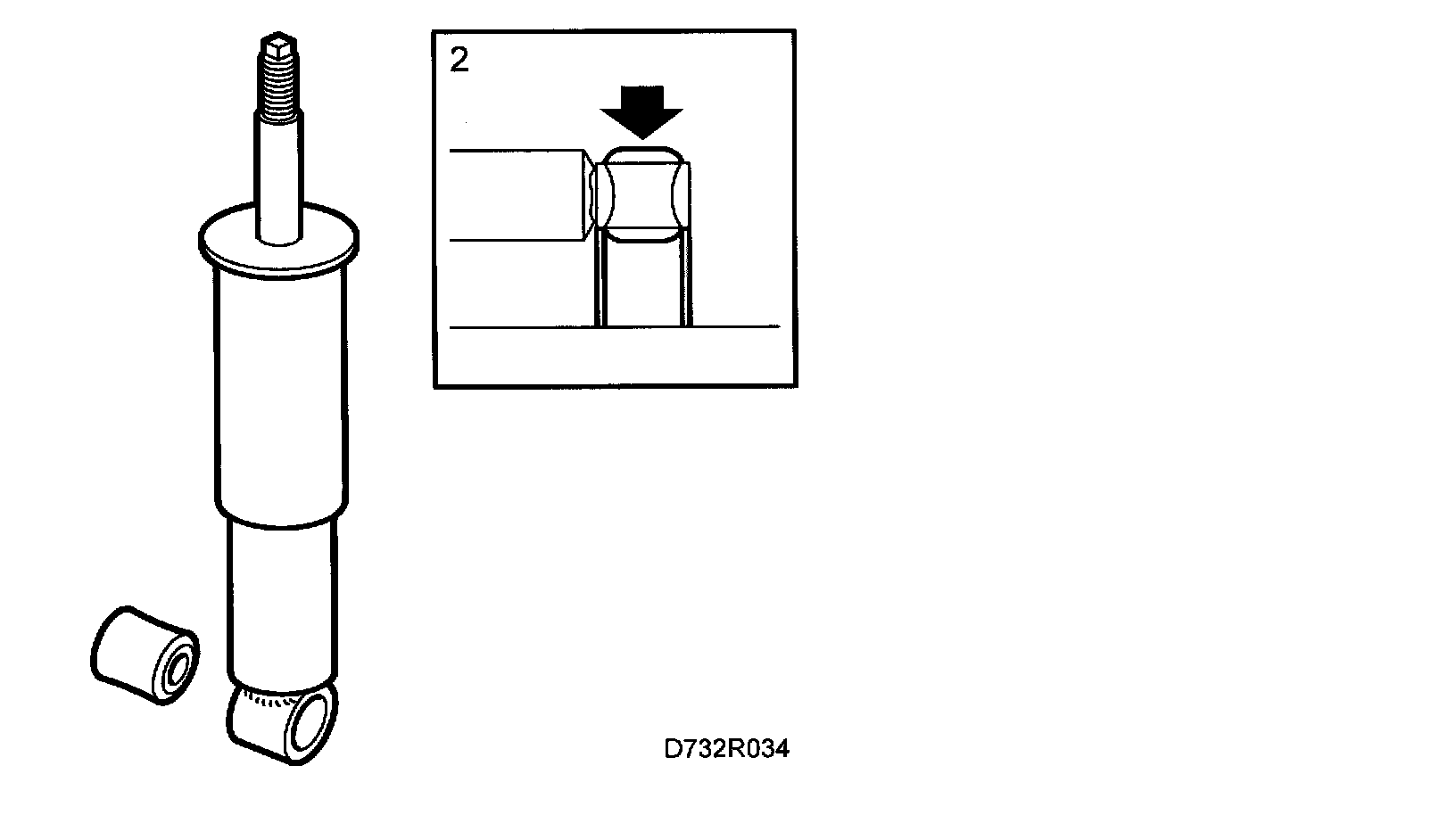

2. Place the damper, an 18 mm socket and special cool 89.96.720 in a press.
3. Press out the bush.

To fit
1. Lubricate the bush and compression tool, if used, with petroleum jelly (Vaseline) or the like.





2. Press the compressed bush into place using special tool 89.96.720, seen, as a counterstay.
3. Fit the damper.
