Outer Mountings

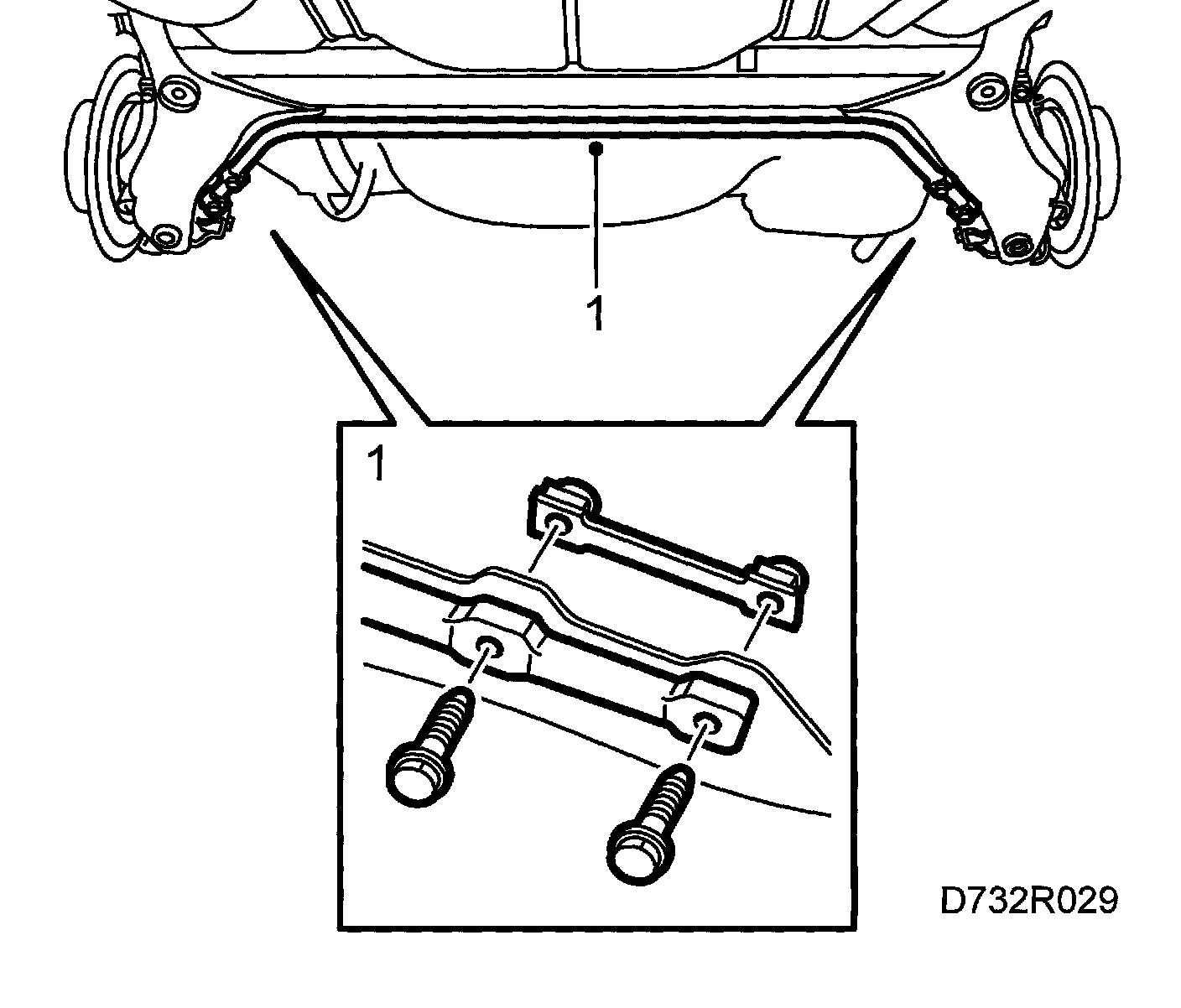

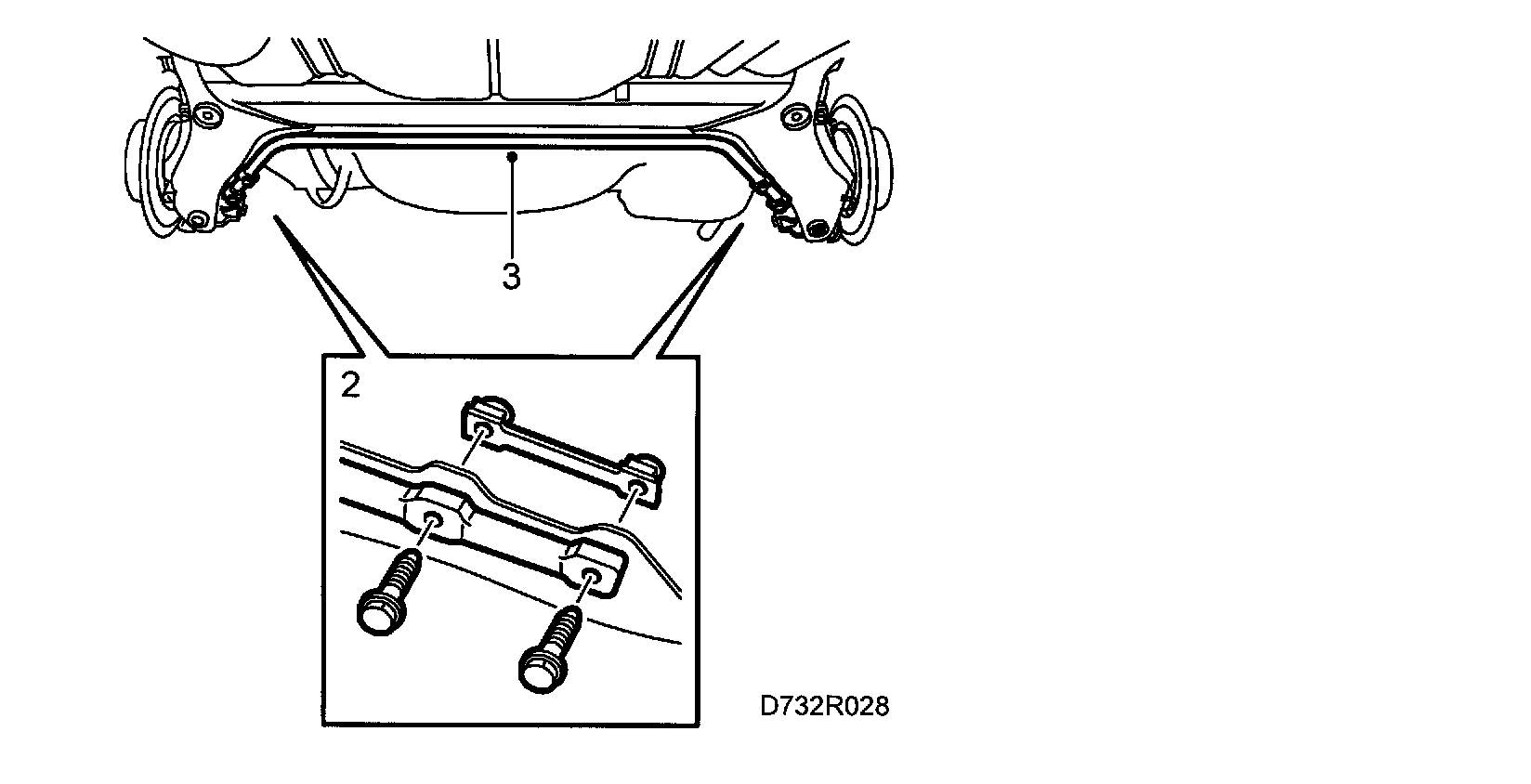

Rear anti-roll bar, outer
To remove
1. Raise the car.





2. Unscrew the four anti-roll bar retaining bolts.
3. Lower the anti-roll bar.


To fit





1. Position the anti-roll bar on the car and fit all retaining bolts.
2. Tighten the bolts, using a torque wrench.
Tightening torque 24 Nm (18 ft. lbs.)
