Dust Excluder, Steering Gear

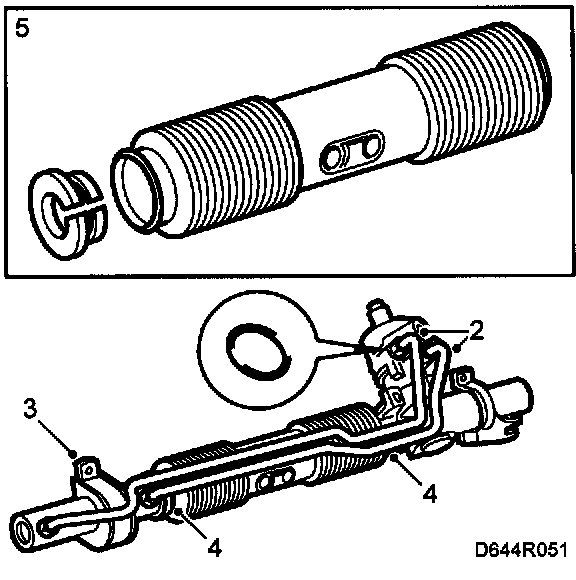

To remove
1. Remove the steering gear.
Steering Gear Assembly





2. Remove the equalization pipe.
3. Remove the mounting bracket and rubber bushing.
4. Remove the clamps.
5. Pull off the bellows from the steering gear.

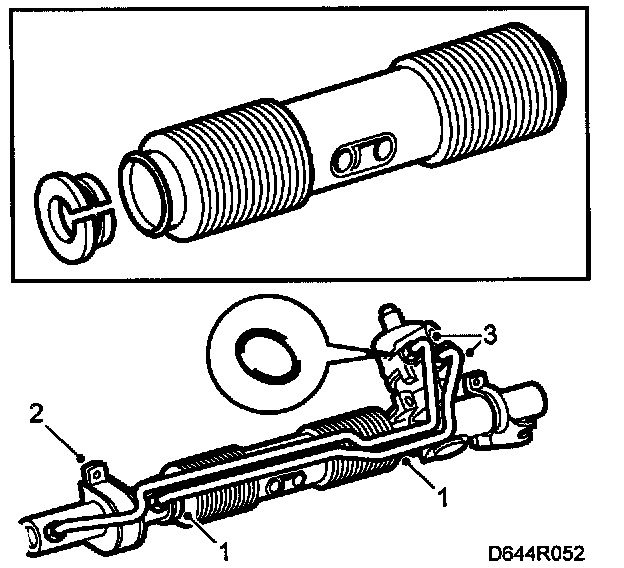

To fit





1. Fit the new bellows and secure with the clamps.
2. Fit the rubber bushing and mounting bracket.
3. Fit the equalization pipe.
4. Fit the steering gear.
