Crimp Schedule (J1 - J180)

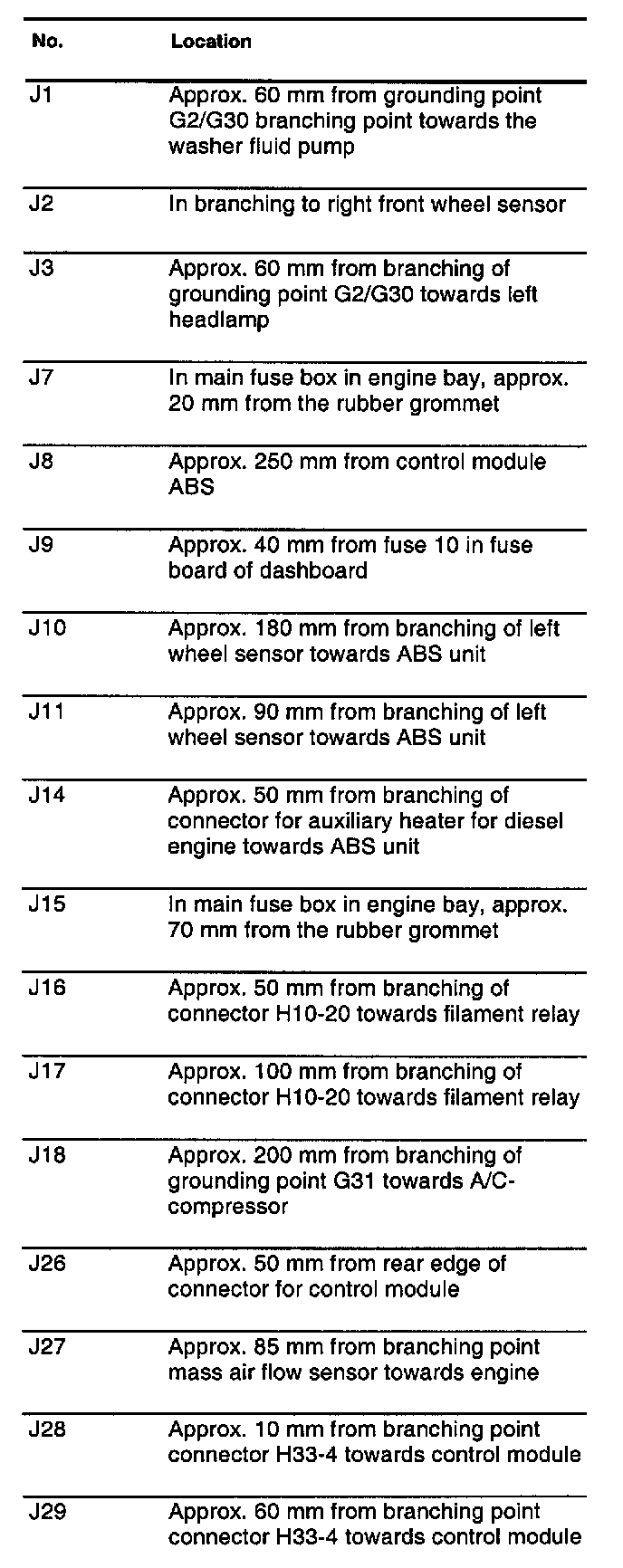

J1 - J29:

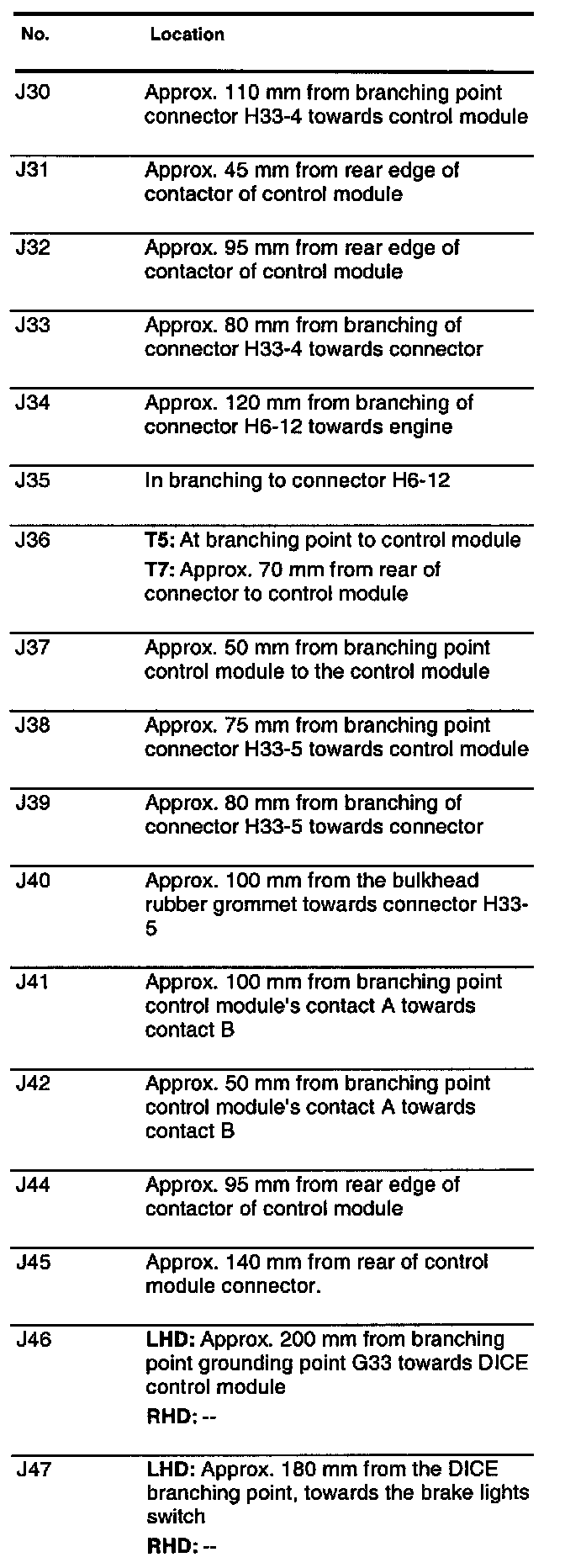

J30 - J47:





J48 - J57:

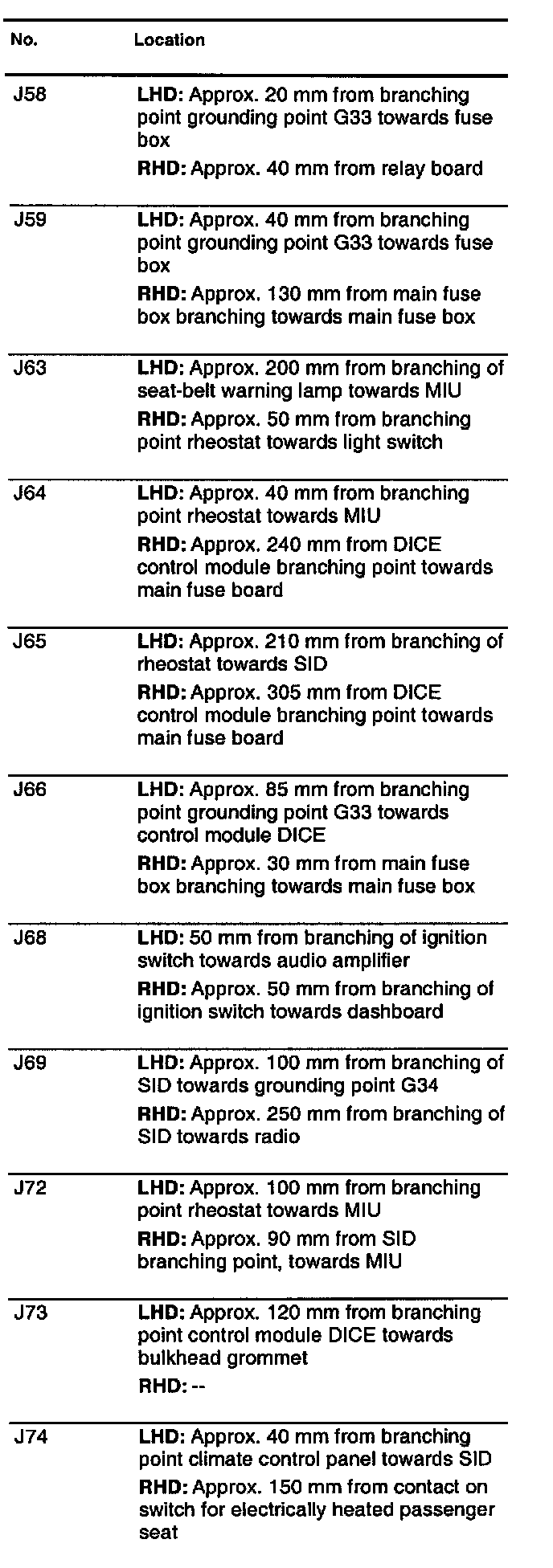

J58 - J74:

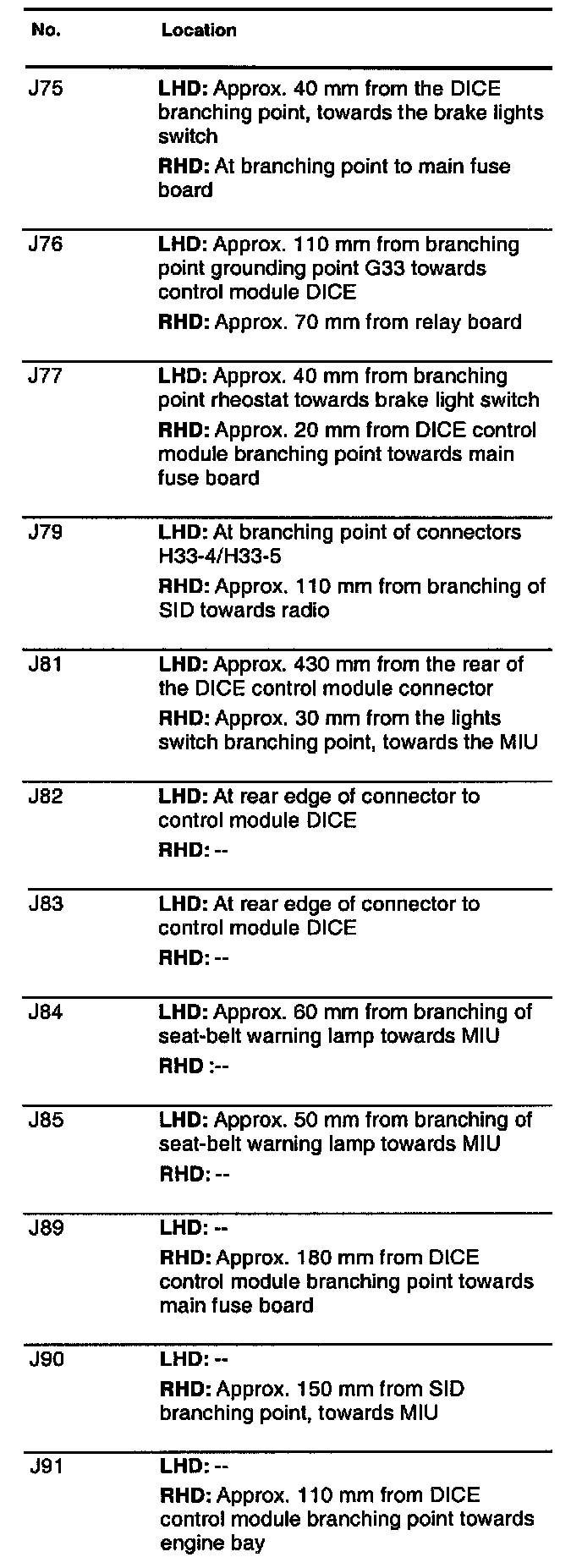

J75 - J91:

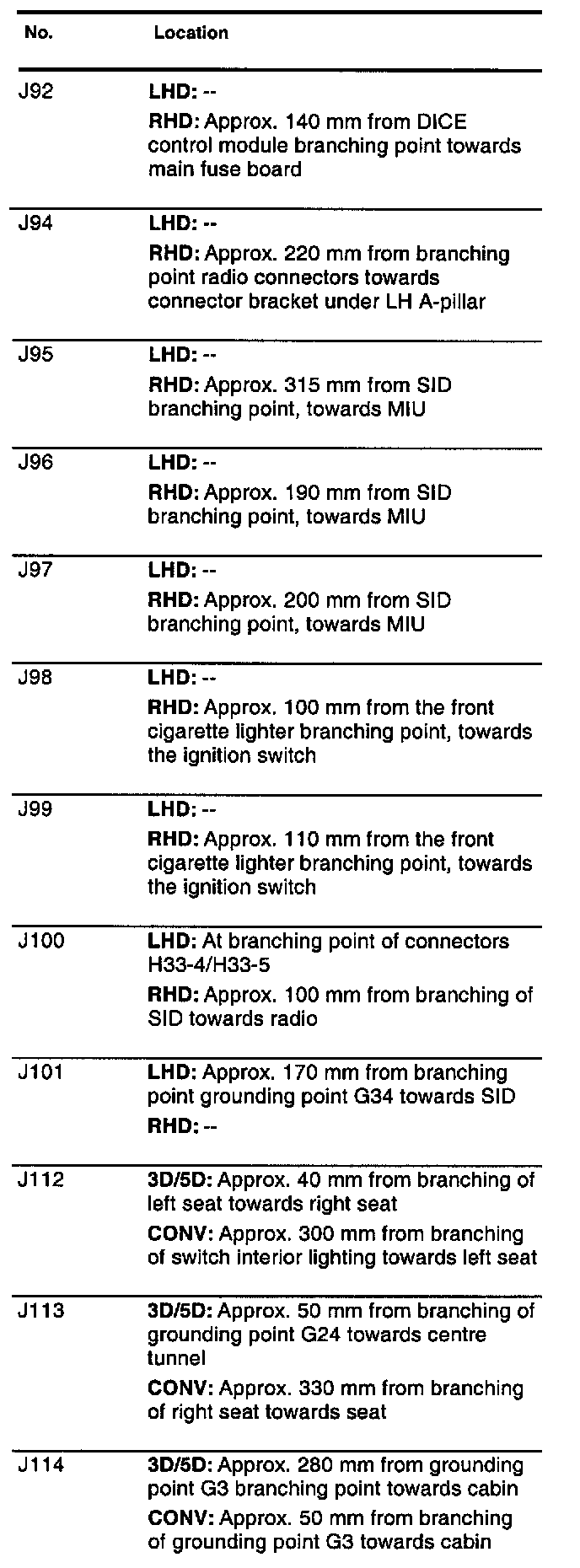

J92 - J114:

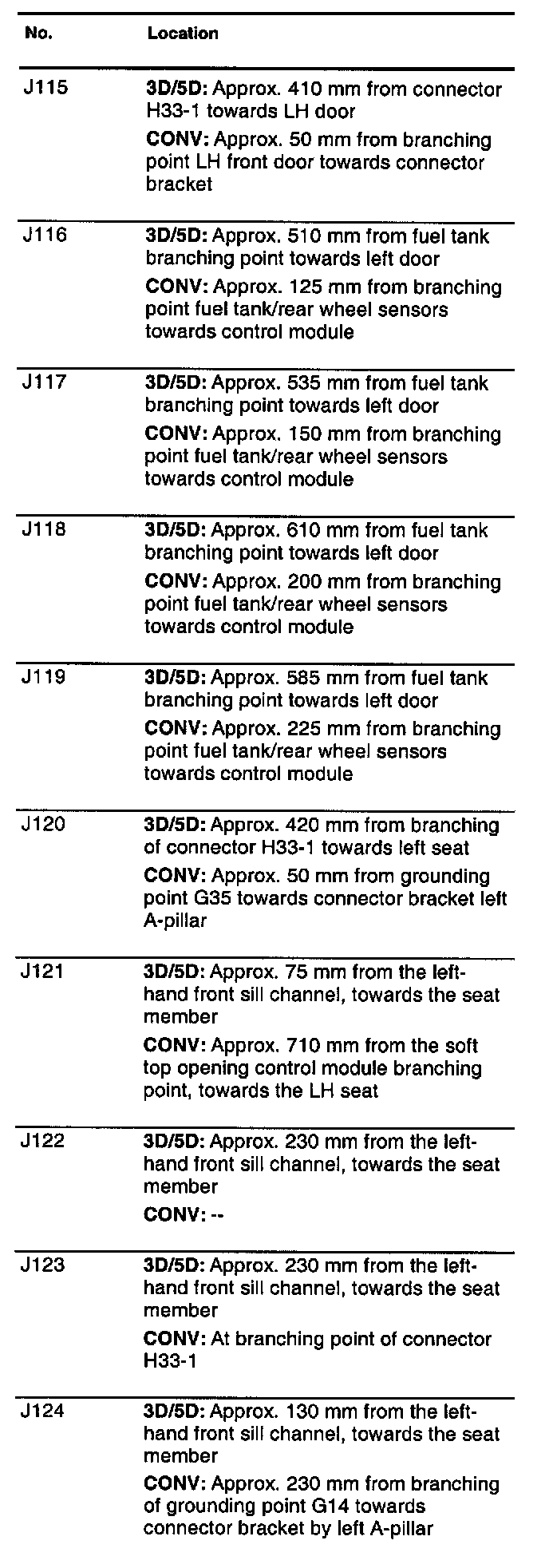

J115 - J124:

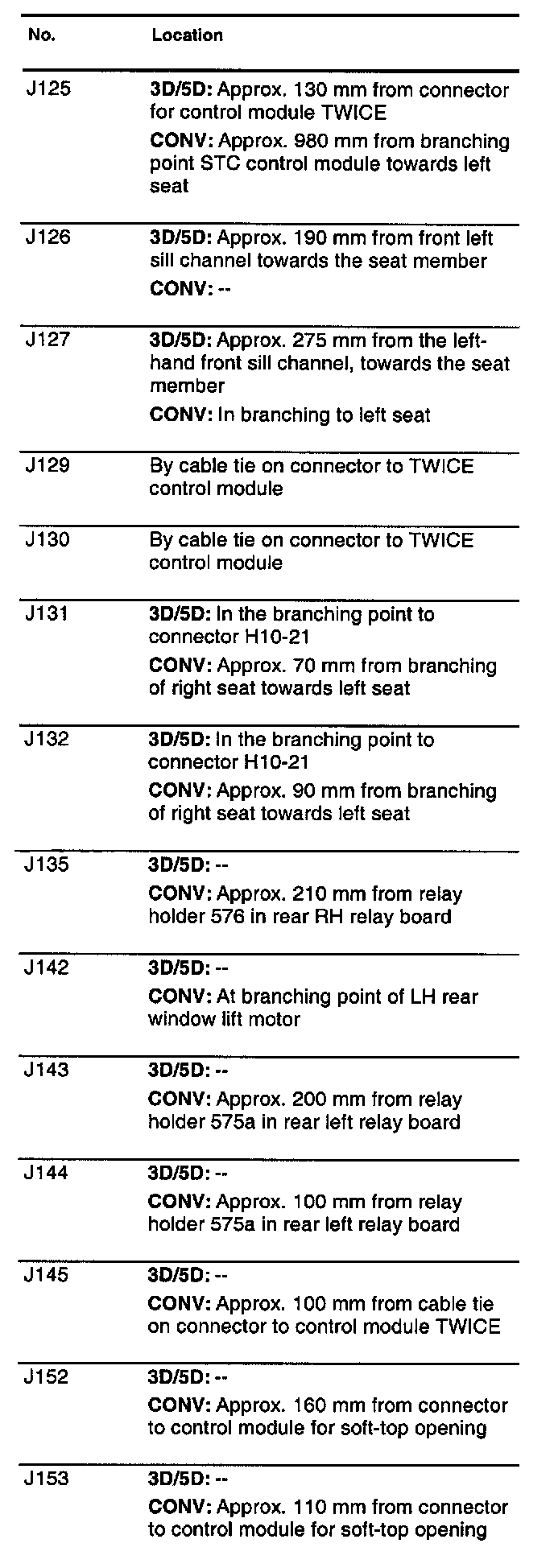

J125 - J153:

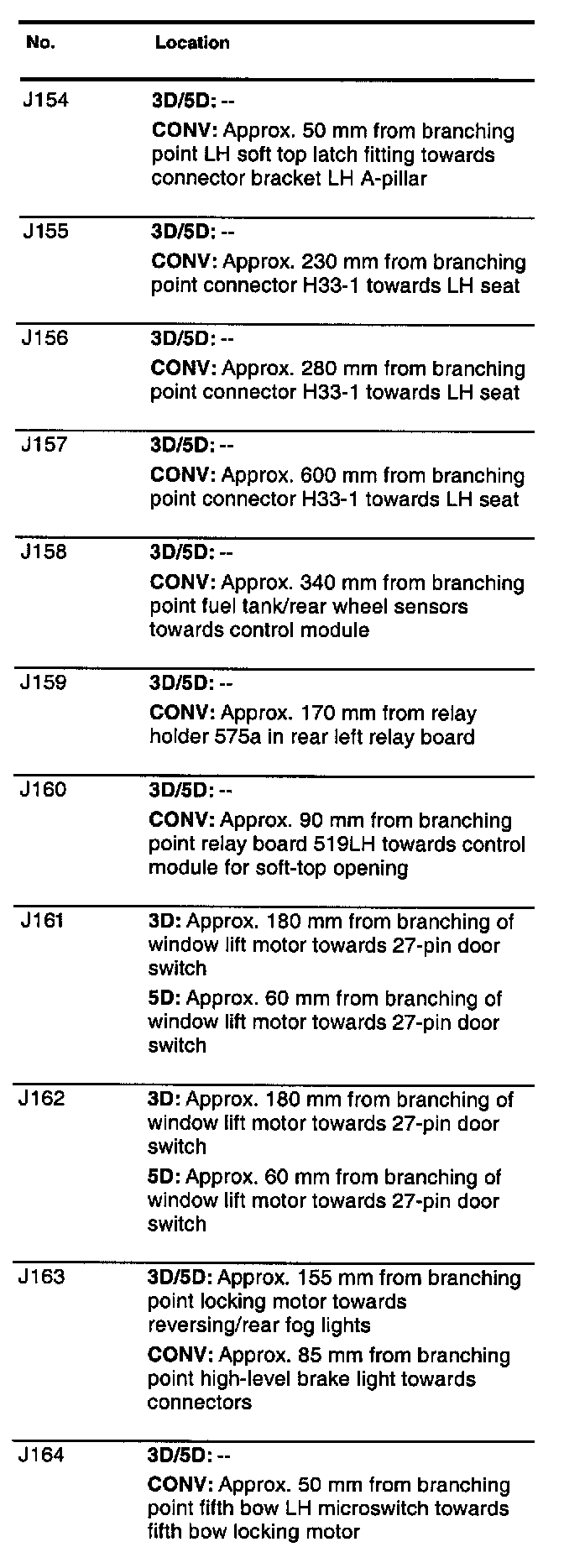

J154 - J164:





J165 - J180:





For crimp circuit schematics, Electrical Diagrams
