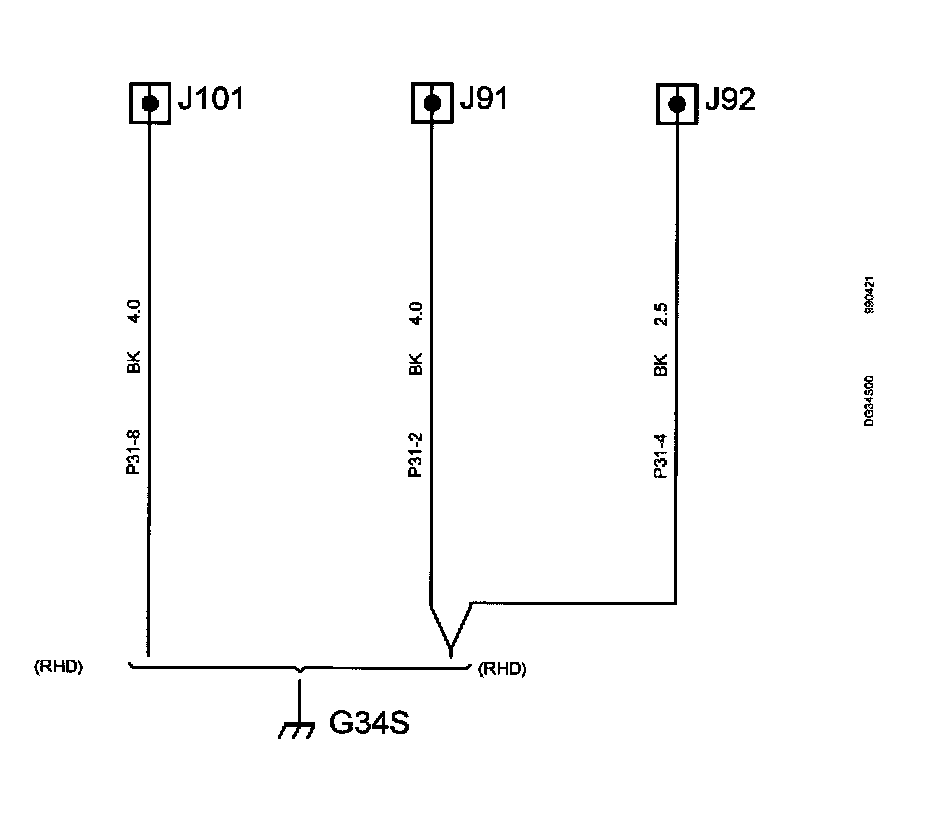

Grounding Point G34S




Grounding Point G34S

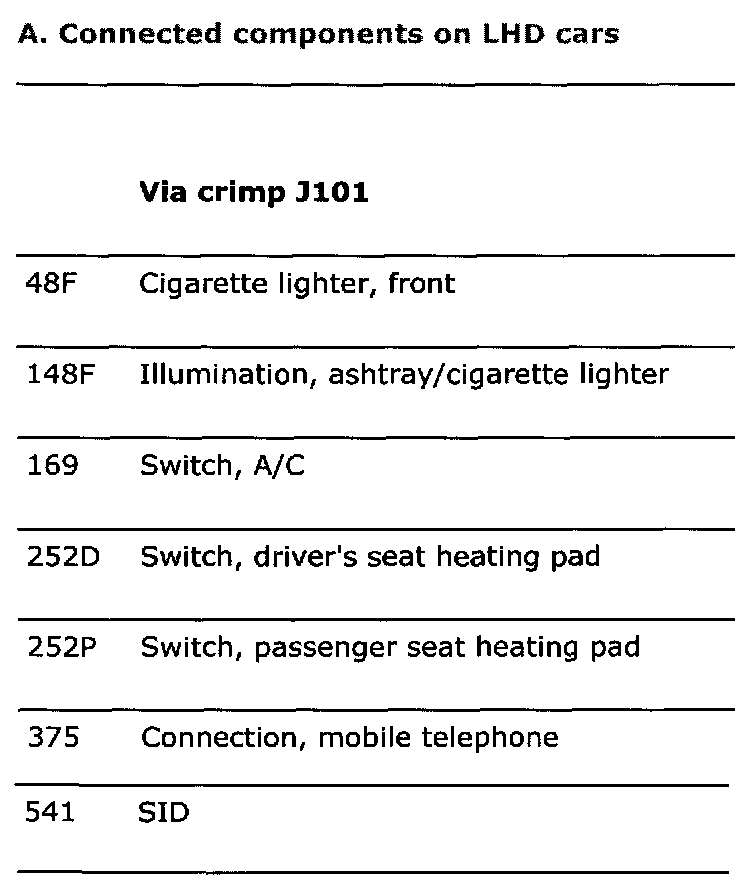

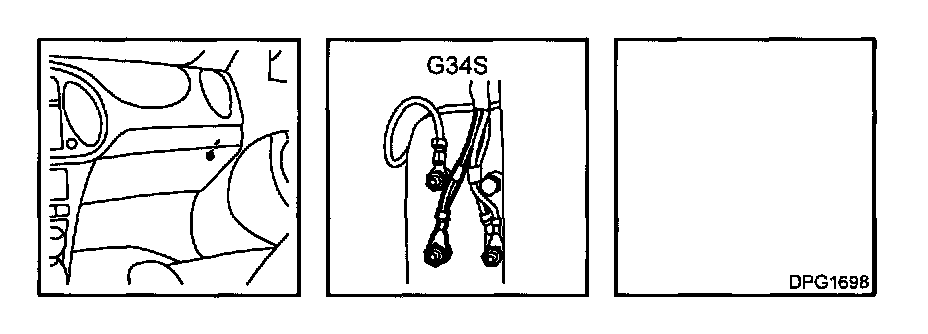

Location: in cabin below right A-pillar. A. Connected components on LHD cars







Part 1:






Part 2:
