Grounding Point G34P
Grounding Point G34P

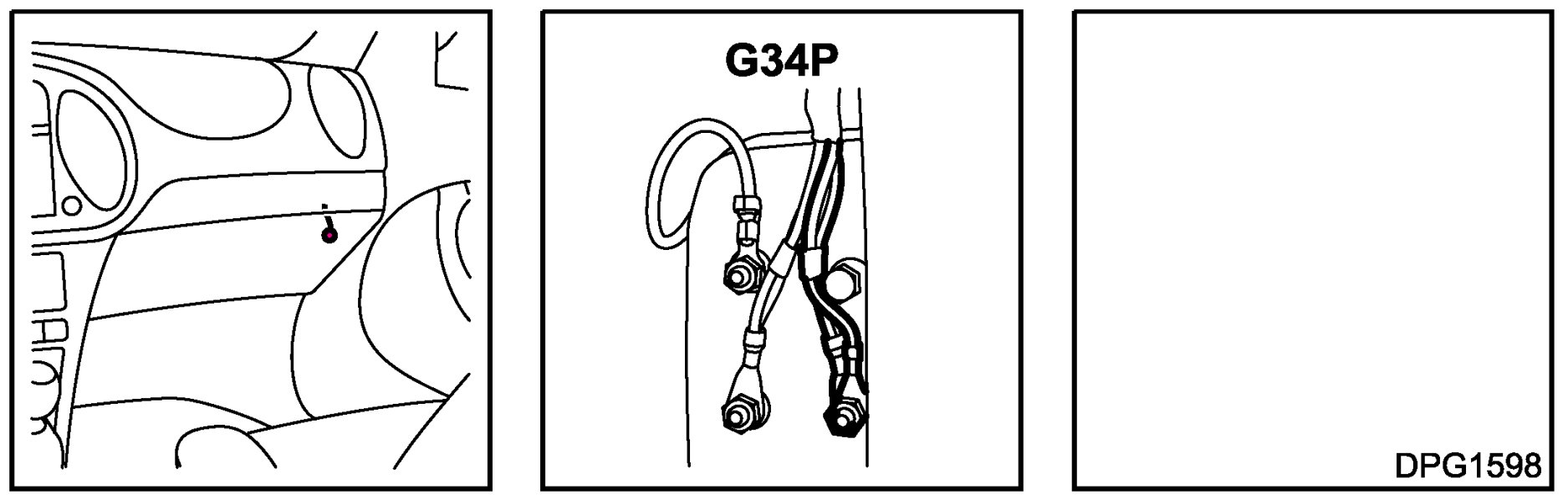

Location:
in cabin below right A-pillar

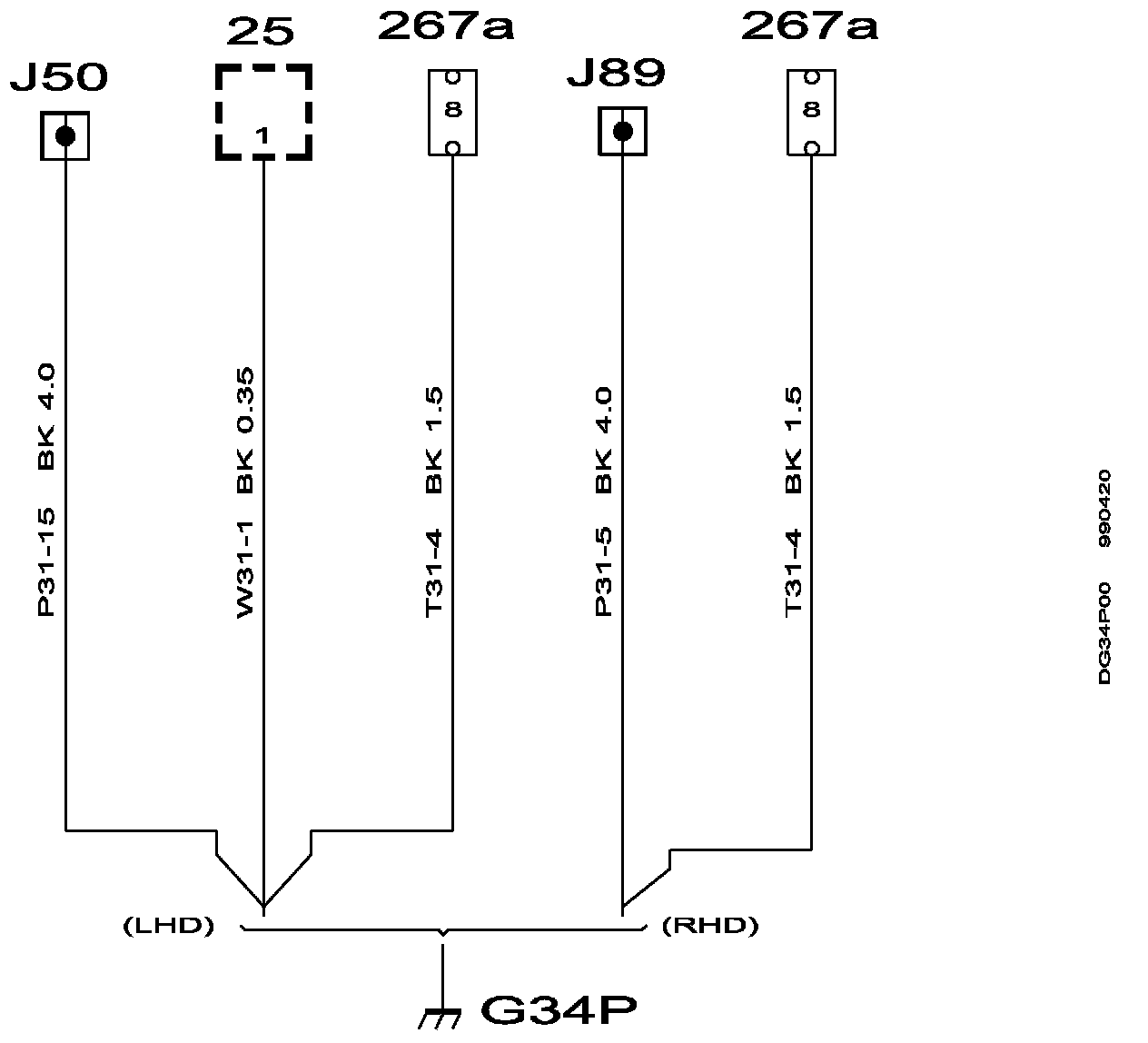

Grounding Point G34P:

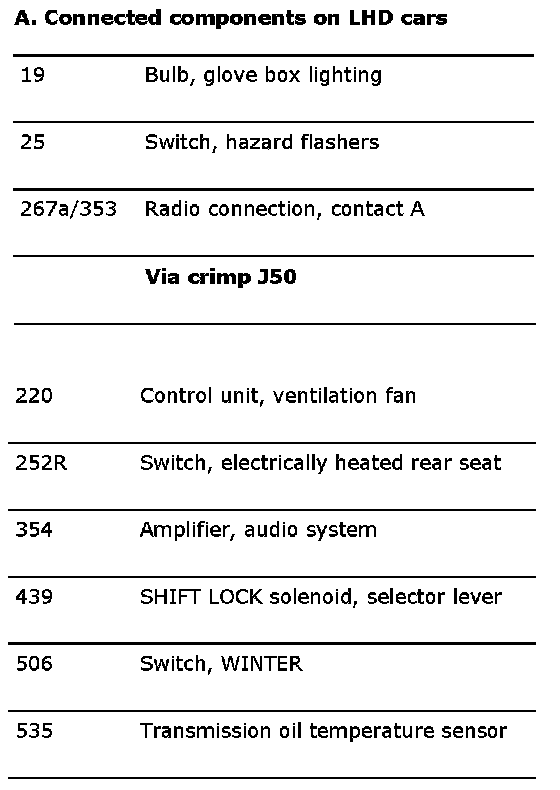

Connected Components (Part 1):

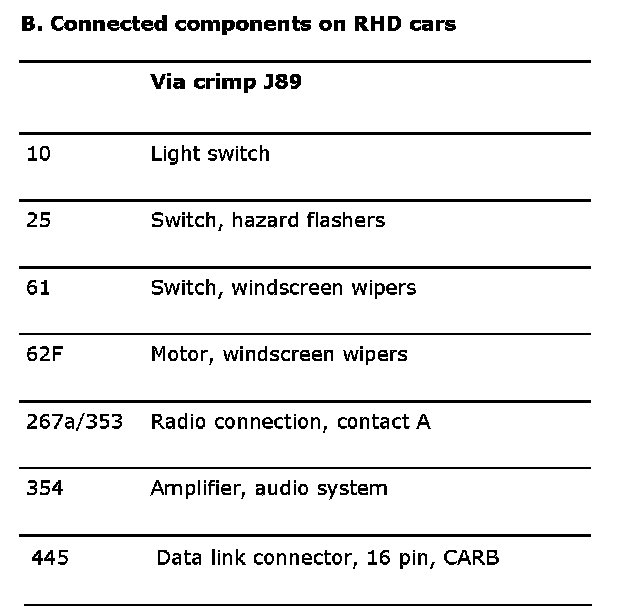

Connected Components (Part 2):
