Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Ground Locations >> Grounding Point G33P

Grounding Point G33P




Grounding Point G33P

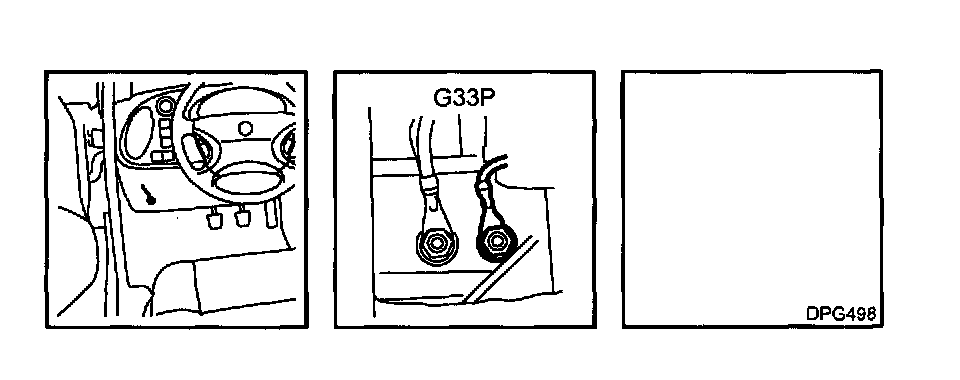

Location: in cabin below left A-pillar.
Cable marking: black adhesive tape.


Part 1:






Part 2:
