9-3 Convertible (9400) L4-2.0L Turbo (B204)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>
Ground Locations
>>
Grounding Point G31
Grounding Point G31
Grounding Point G31
Location:
in engine bay on side plate in front of right wheel housing.

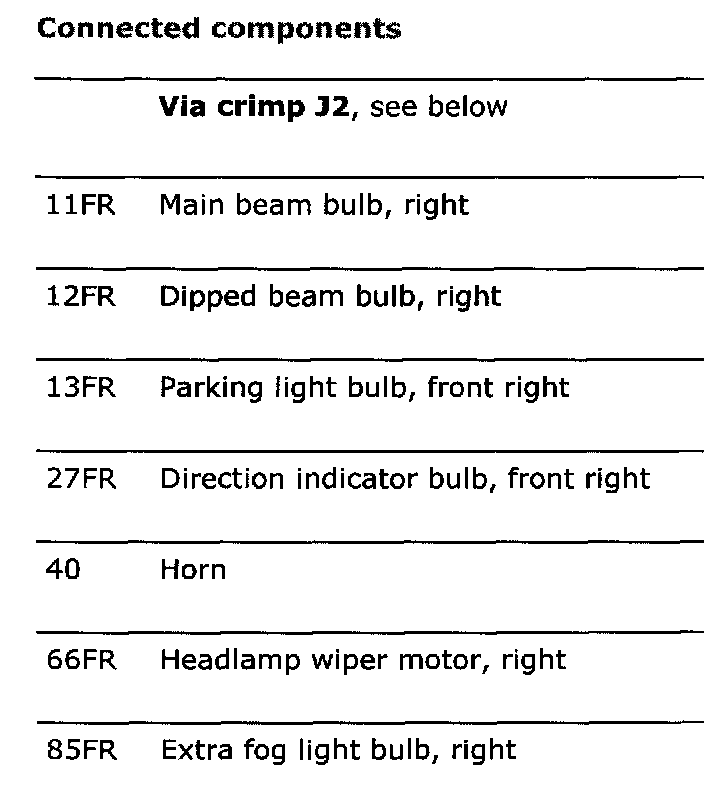

Part 1:

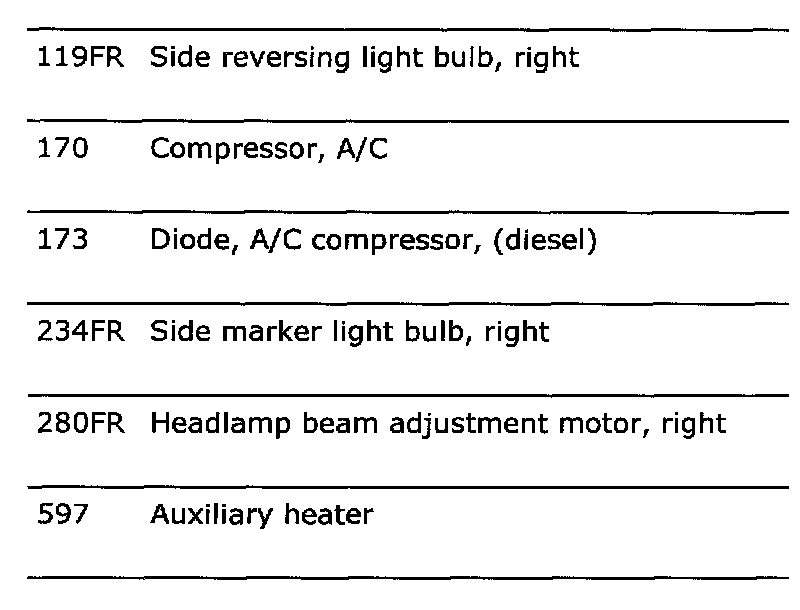

Part 2:
