Grounding Point G3
Grounding Point G3

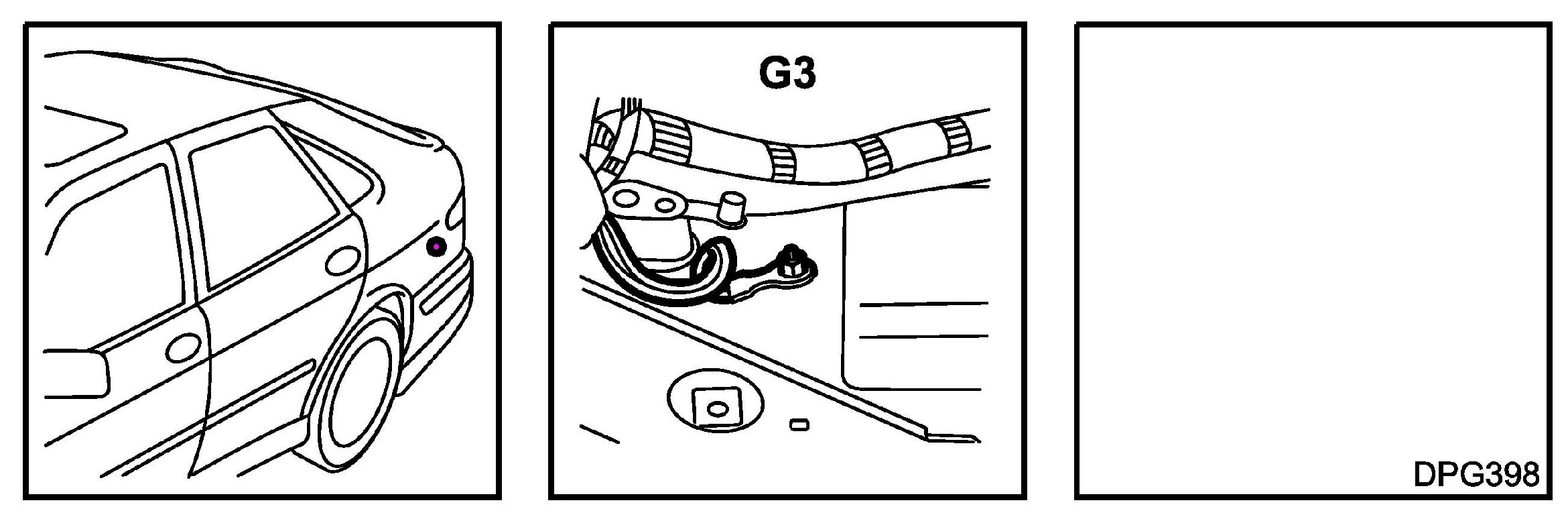

Location:
in luggage compartment under rear left light cluster.

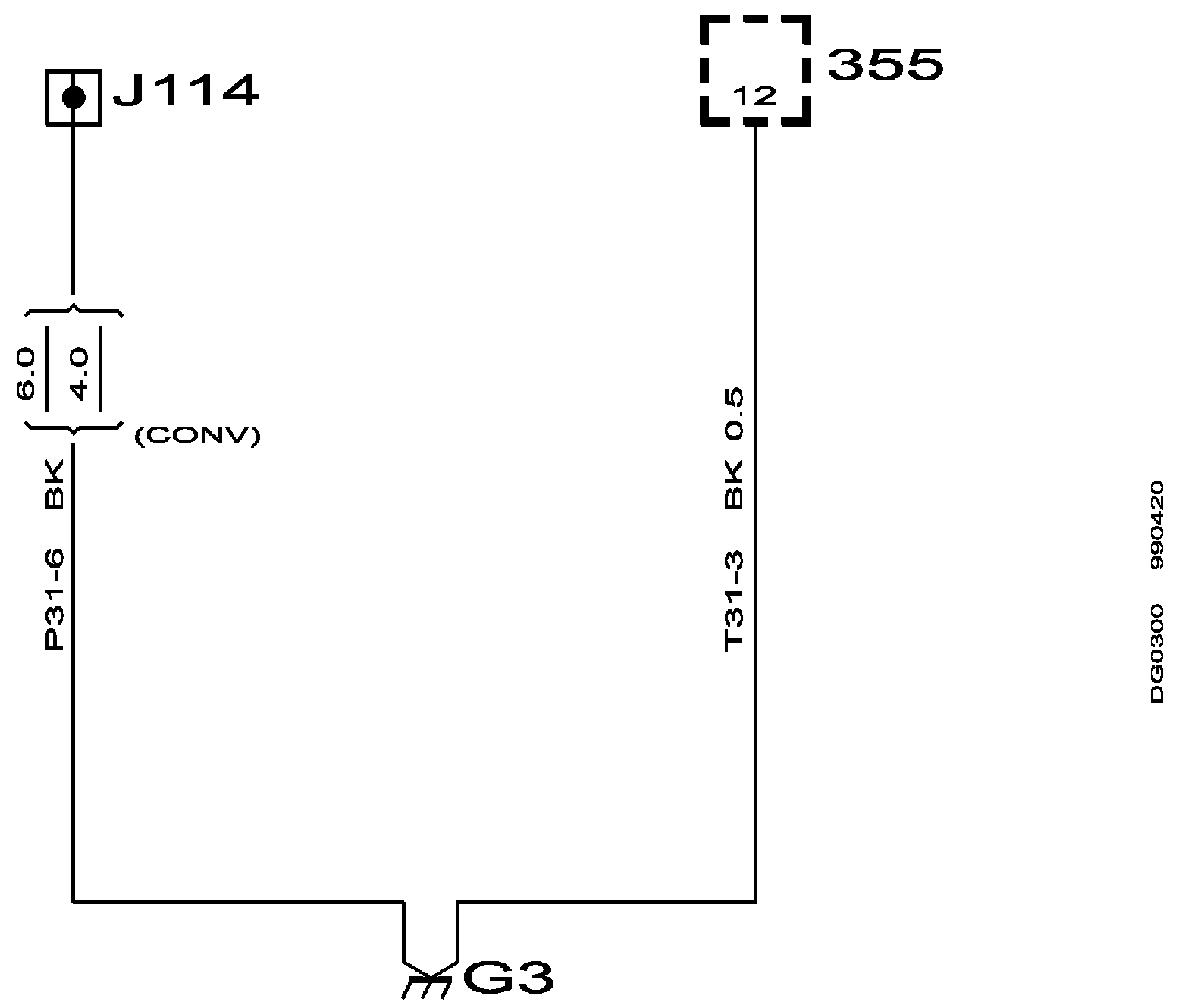

Grounding Point G3:

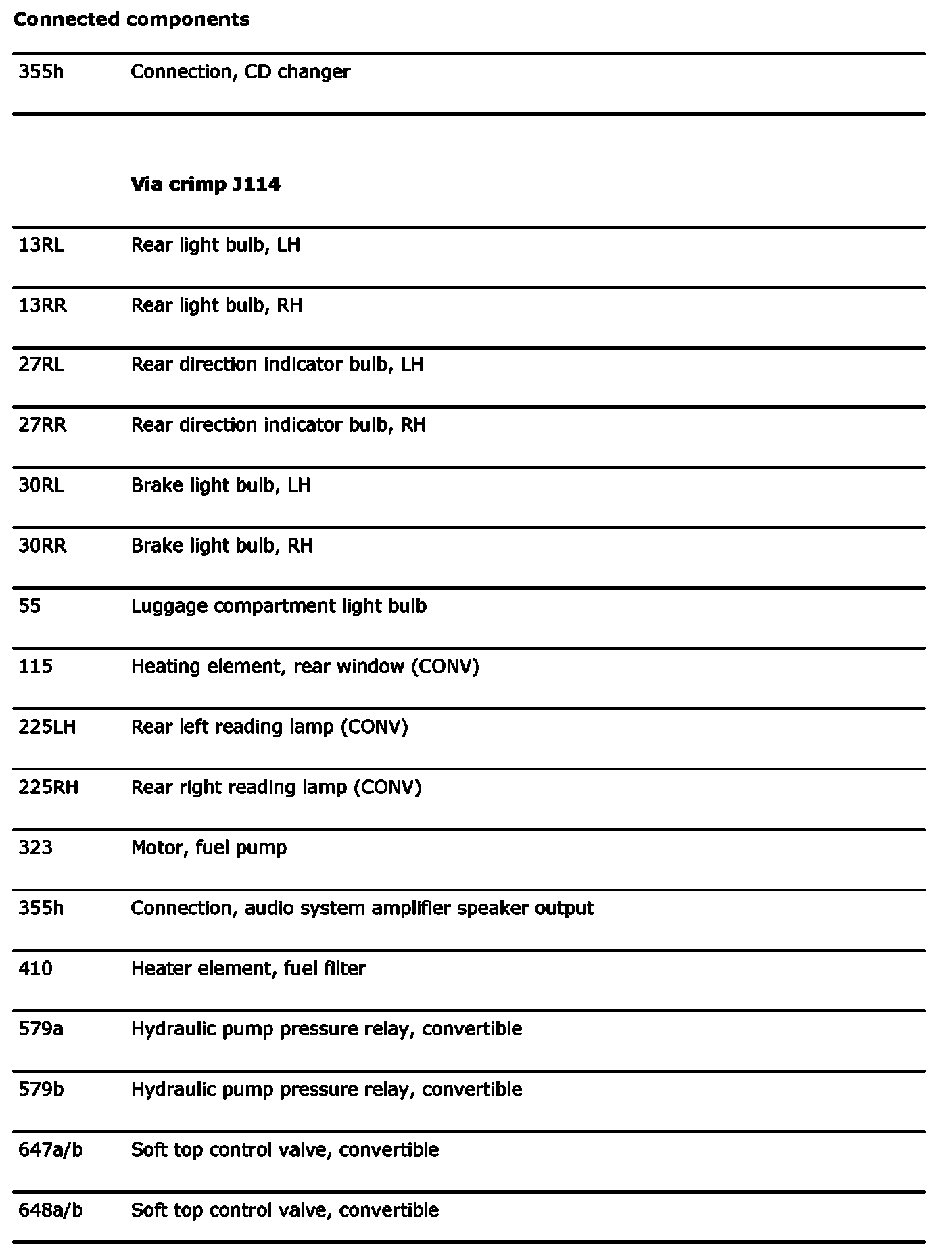

Connected Components (Part 1):

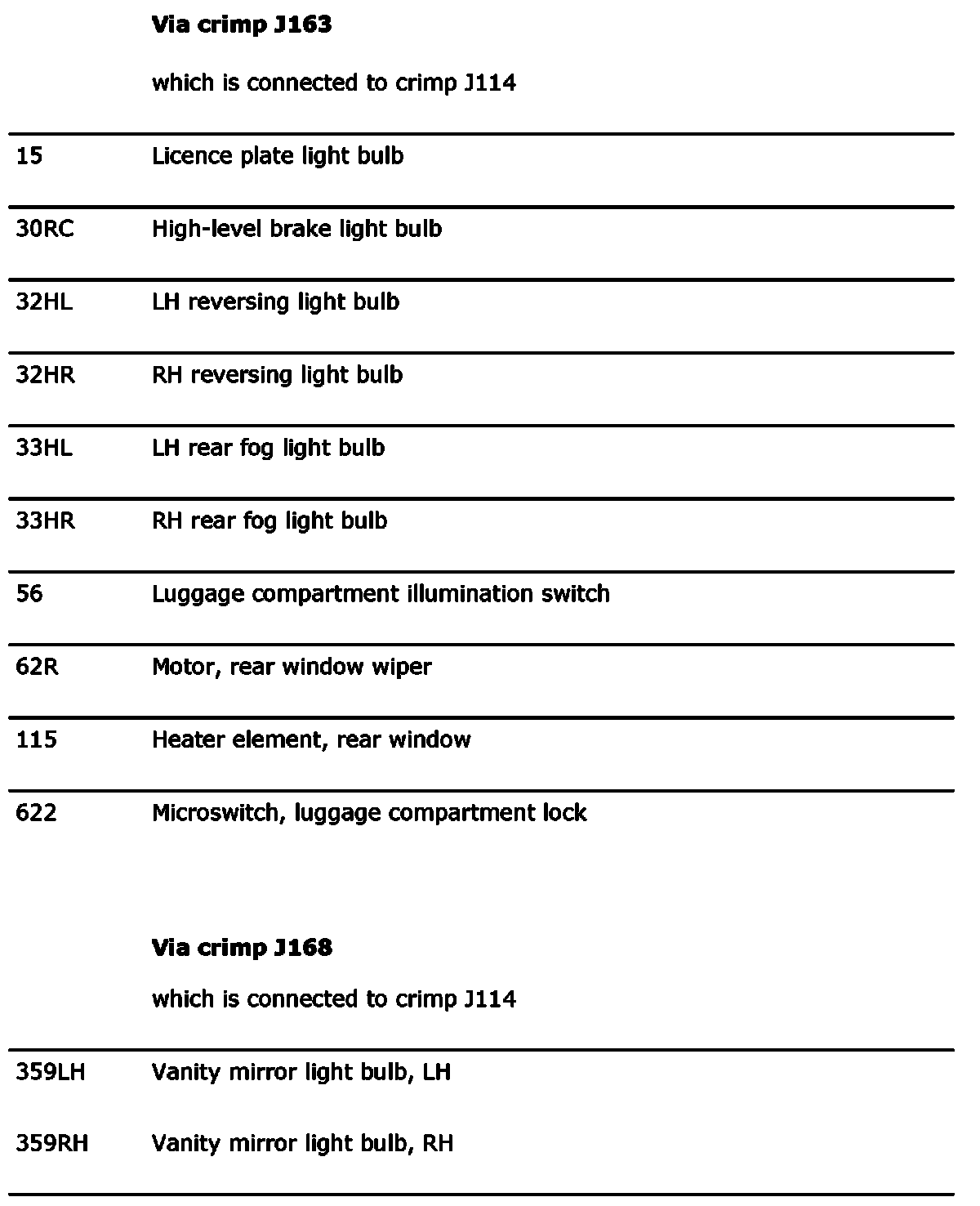

Connected Components (Part 2):
