G7S

Location:

Location: on side of intake manifold at cylinder 4

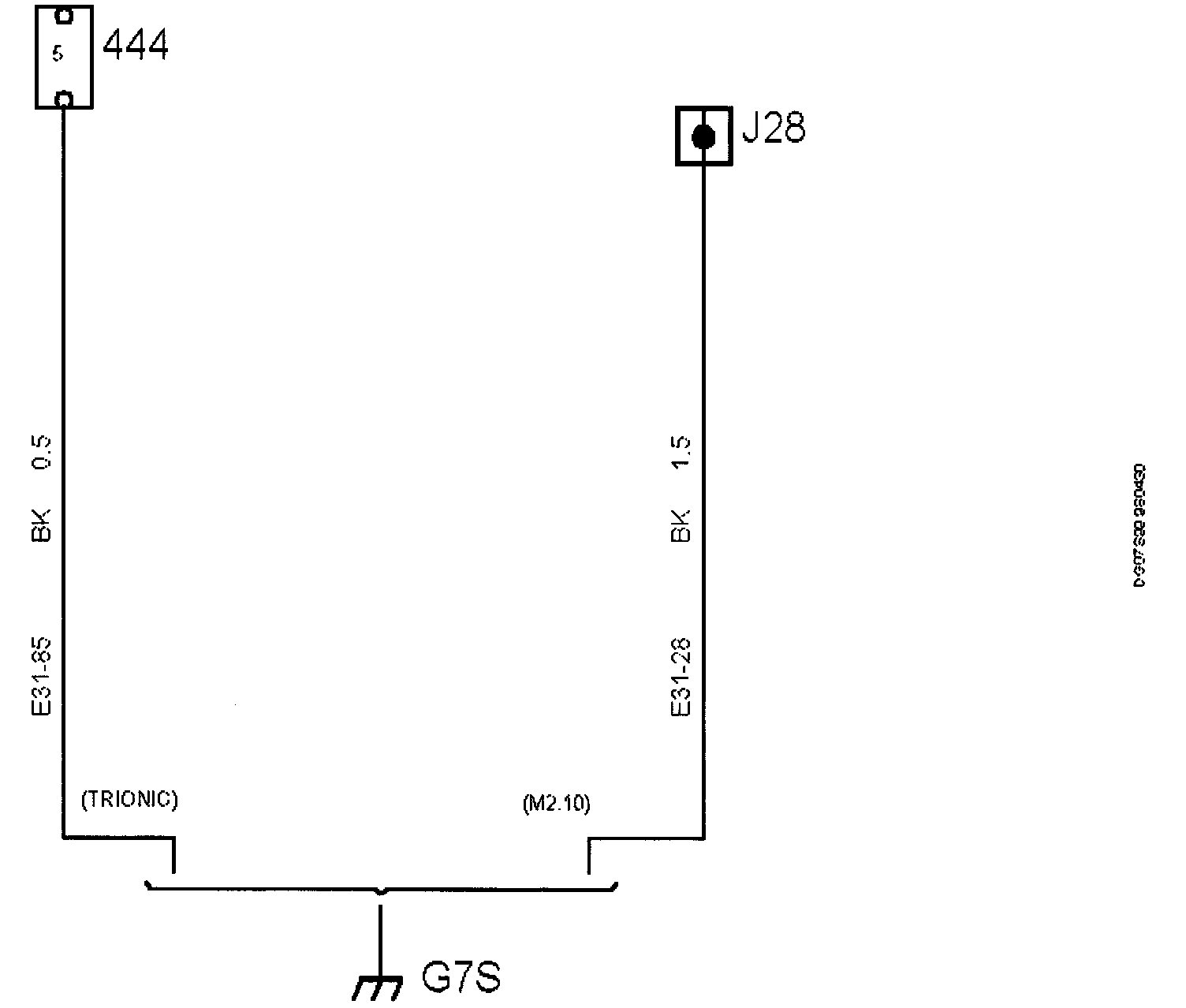

Schematic:

Components connected:

444 Test socket, diagnostics PC
Via crimp J28 LINK Splice Locations
322 Connector, codification
505 Control module, Motronic 2.10.3
