G39

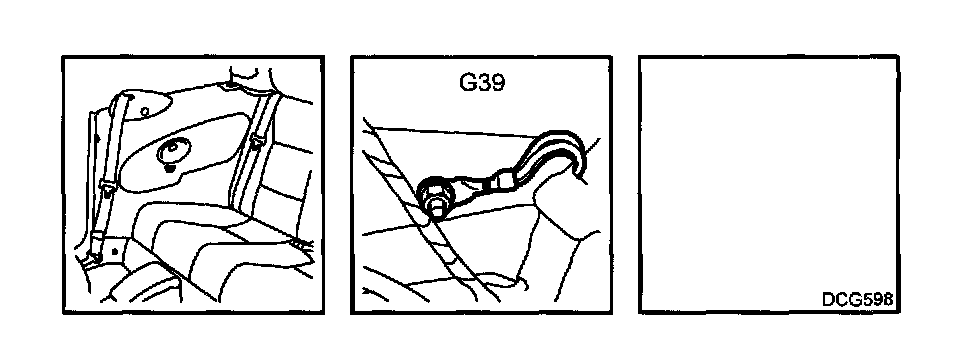

Location: beneath RH rear-seat loudspeaker

Components connected:

Via crimp J135 Splice Locations
575a Relay, electrically operated window lift, LH front
575d Relay, electrically operated window lift, RH rear
576 Relay, fifth hoop

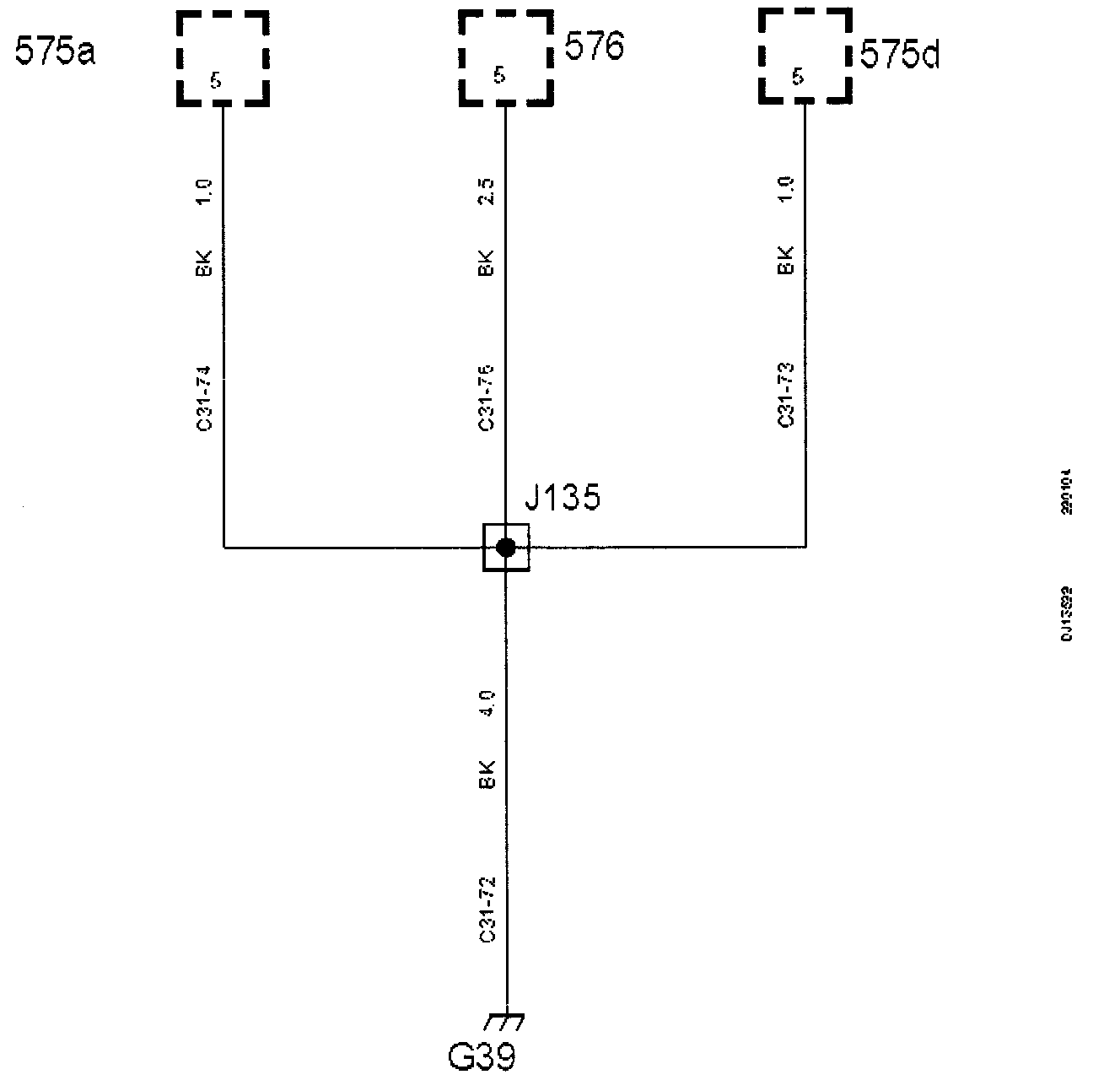

Schematic:
