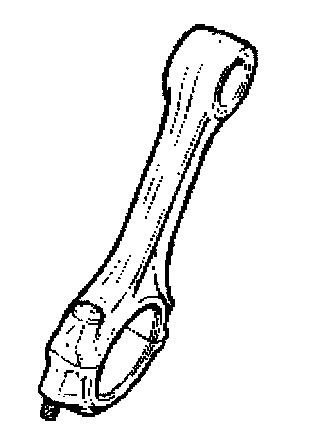

Connecting Rods

Connecting Rods





Diameter Of Big-End
B204 56.000-56.019 mm
B235R 56.000-56.019 mm

Diameter of Small-End Bushing (Bushing Fitted)
B204 24.005-24.010 mm
B235R 24.012-24.017

The difference in weight between big-ends in the same engine must not exceed:
B204 6 g (0.21 oz.)
B235R 6 g (0.21 oz.)

Length
B204 153 mm
B235R 153 mm
