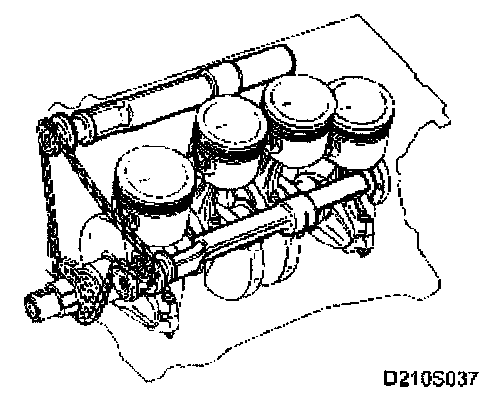

Balancer Shaft

Balancer Shafts





General Data

Diameter of Balancer-Shaft Journal (Inner)
B204 39.908-39.924 mm
B235 38.892-39.908 mm

Diameter of Balancer-Shaft Bearing (Inner)
B204 39.988-40.043 mm
B235 39.988-40.043 mm

Bearing Clearance, Journal Bearing (Inner)
B204 0.064-0.135 mm
B235 0.080-0.151 mm

Maximum Permissible Bearing Clearance (Inner)
B204 0.16 mm
B235 0.18 mm

Diameter of Balancer-Shaft Journal (Outer)
B204 19.947-19.960 mm
B235 19.947-19.960 mm

Diameter of Balancer-Shaft Bearing (Outer)
B204 20.000-20.021 mm
B235 20.000-20.021 mm

Bearing Clearance, Journal Bearing (Outer)
B204 0.040-0.074 mm
B235 0.040-0.074 mm

End Float
B204 0.06-0.46 mm
B235 0.06-0.46 mm
