Transmission Temperature Sensor/Switch, A/T
Transmission Temperature Sensor/Switch, A/T
Transmission Fluid Temperature Sensor

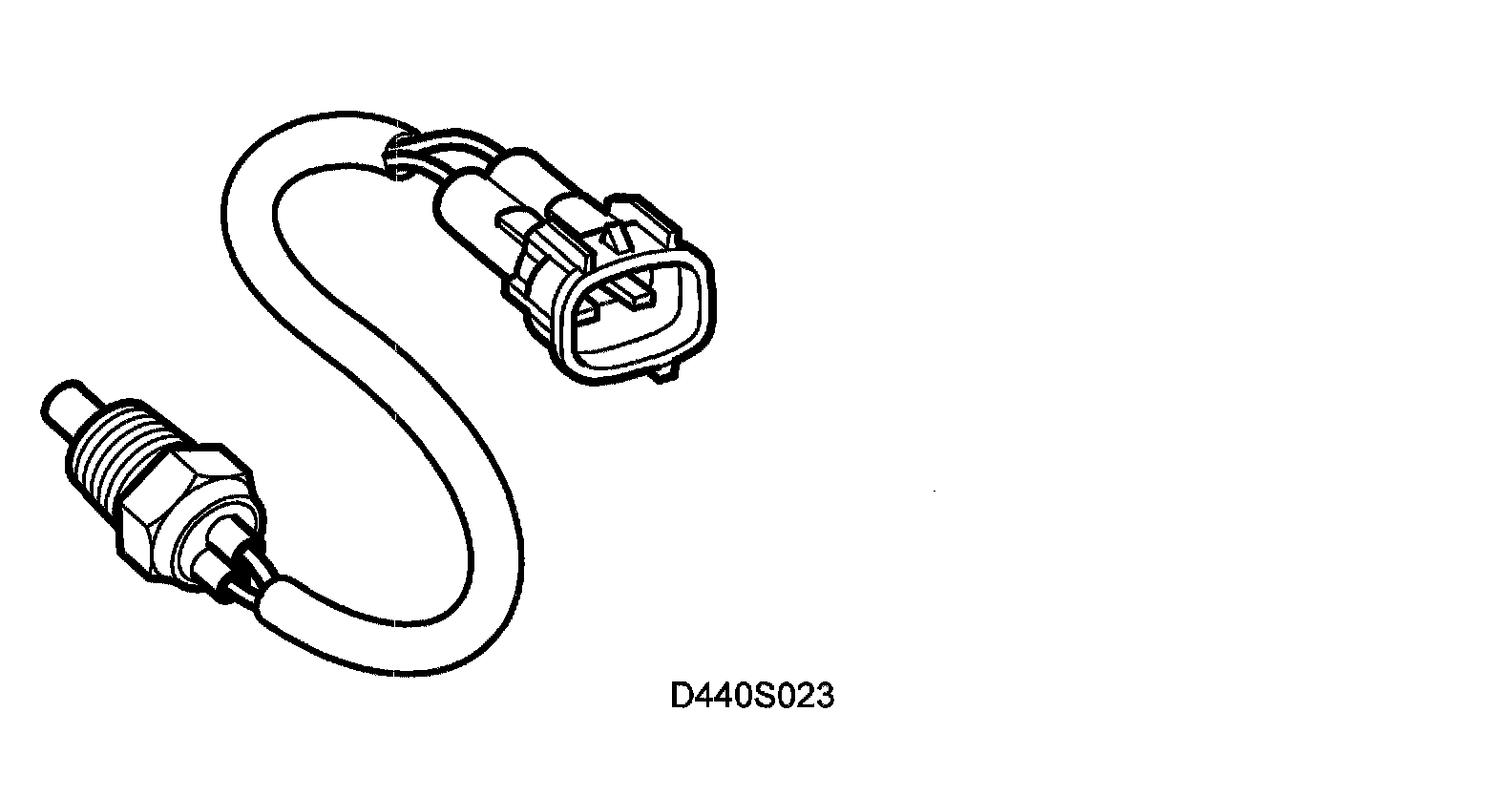

Component Illustration:

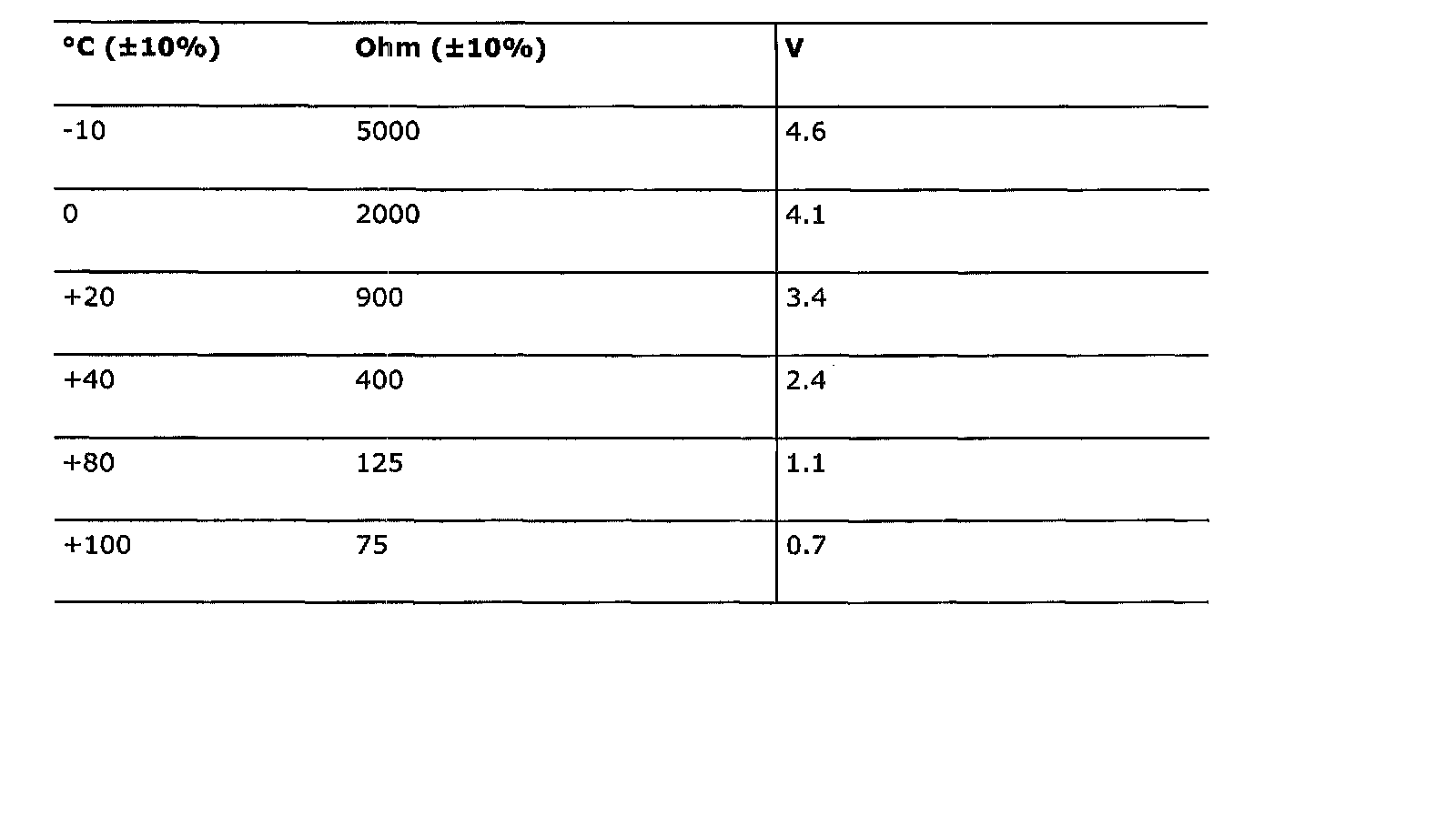

Temperature/Resistance/Voltage Specifications Table:

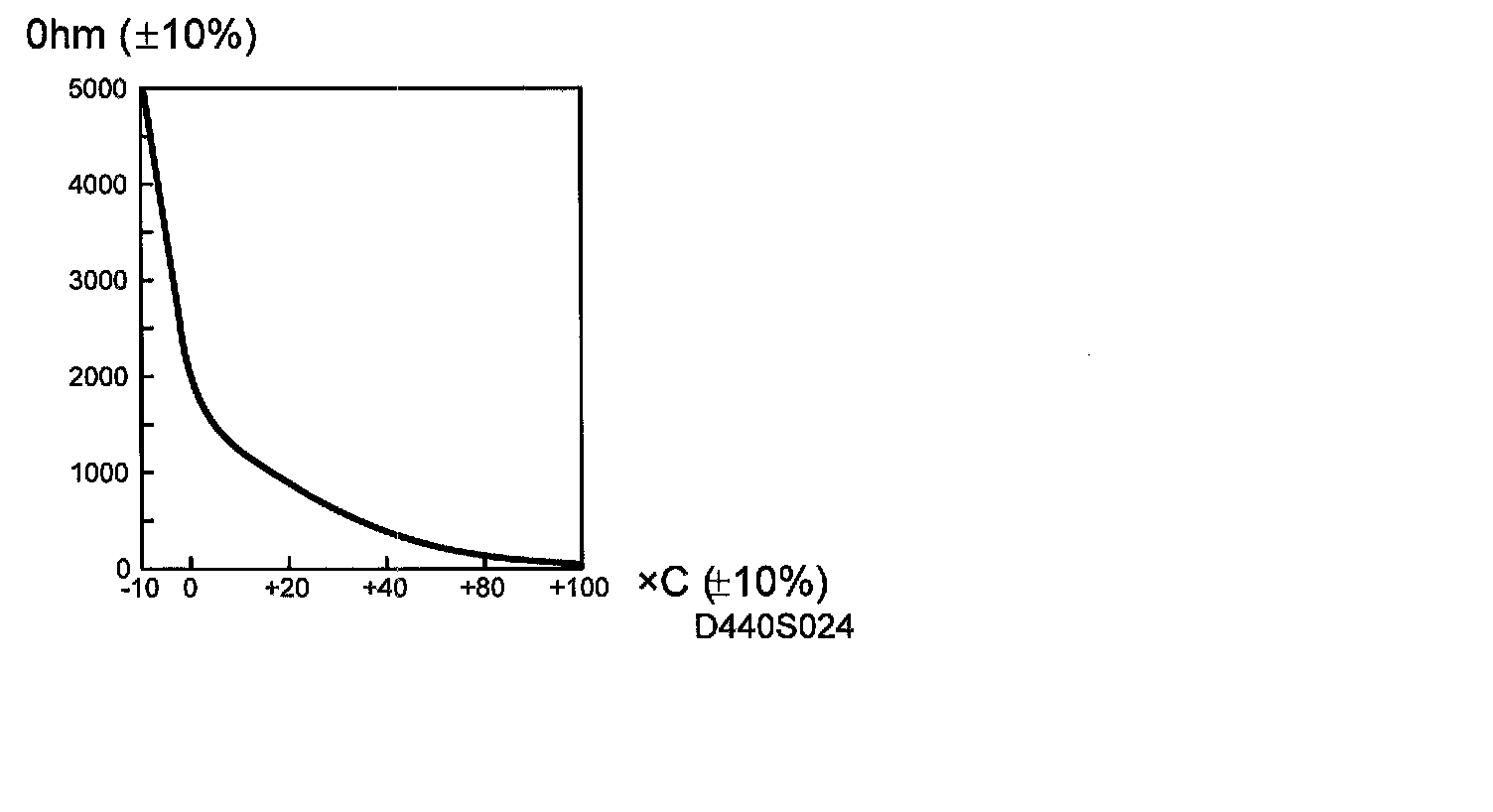

Temperature/Resistance Graph:
