Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Power Trunk / Liftgate Lock Actuator

Power Trunk / Liftgate Lock Actuator

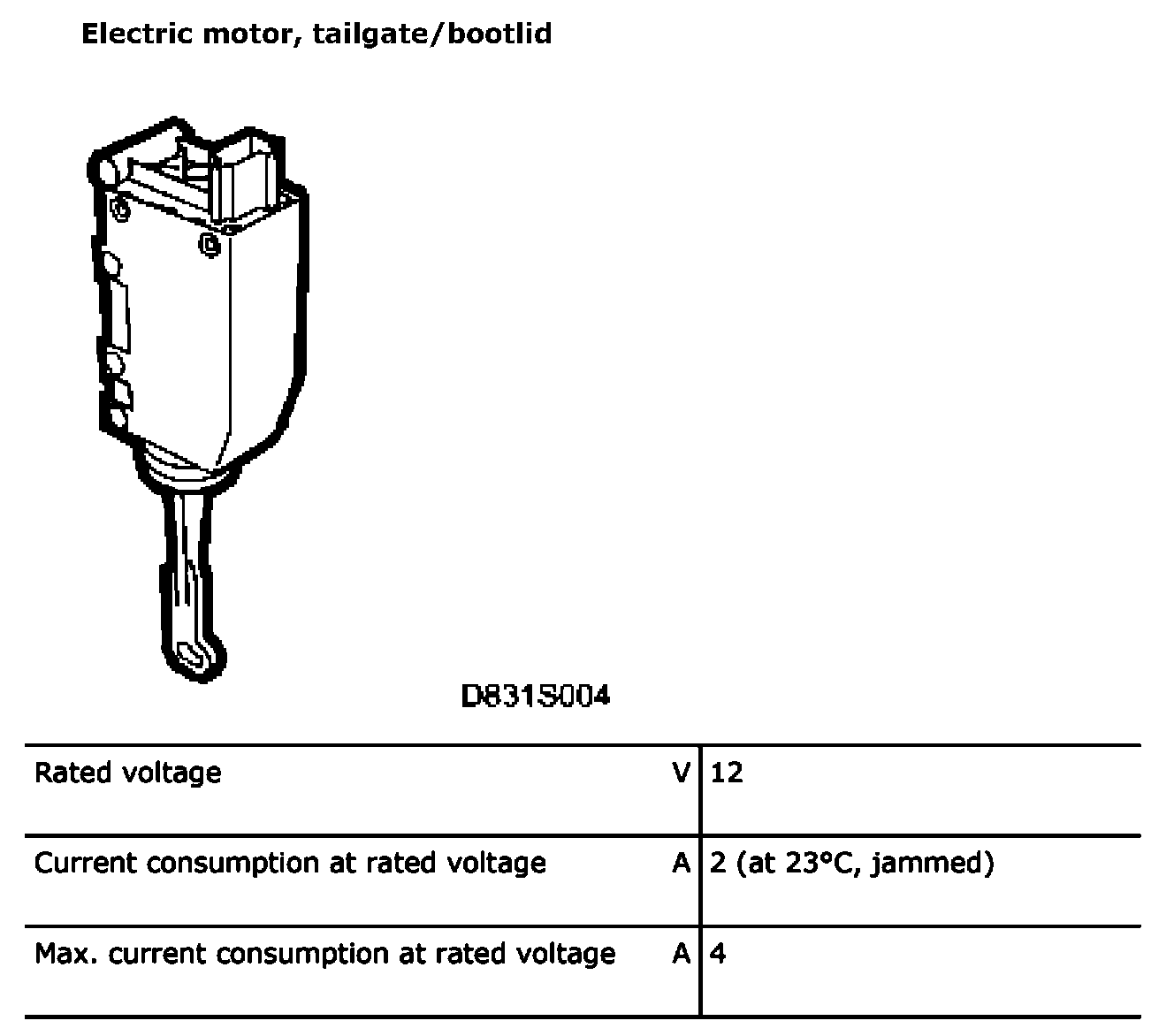

Electric Motor, Tailgate/bootlid


Electric Motor, Tailgate/bootlid:






IMPORTANT: Electric motor must not be supplied with current for more than 45 seconds, the motor will overheat and malfunction.
