Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Power Door Lock Actuator >> Solenoid, Fuel Hatch

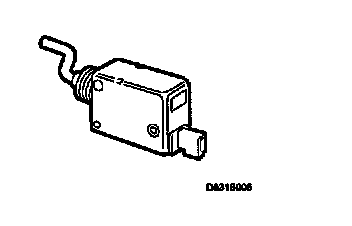

Solenoid, Fuel Hatch

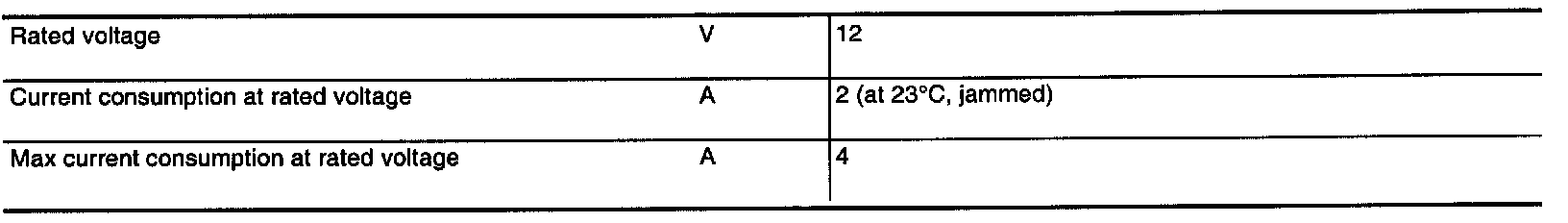

Solenoid, Fuel Hatch:











IMPORTANT
Electric motor must not be supplied with current for more than 45 seconds, the motor will overheat and malfunction.
