Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Power Door Lock Actuator >> Electric Motor, Central Locking System, Driver's Door

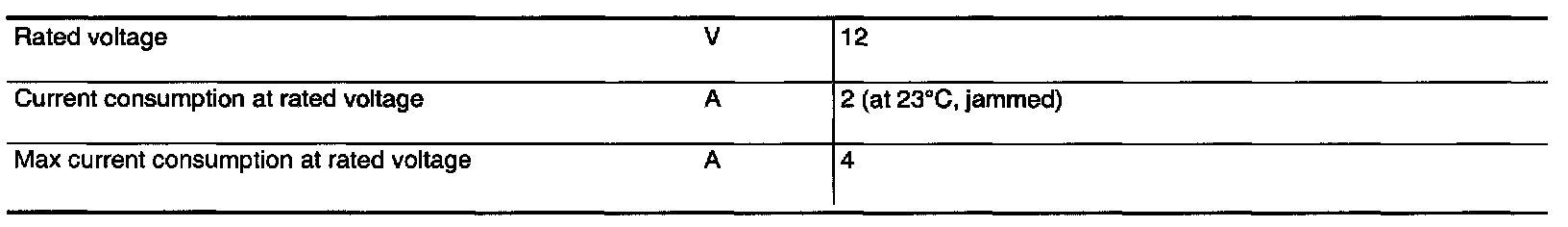

Electric Motor, Central Locking System, Driver's Door




Electric Motor, Central Locking System, Driver's Door












IMPORTANT
Electric motor must not be supplied with current for more than 45 seconds, the motor will overheat and malfunction.
