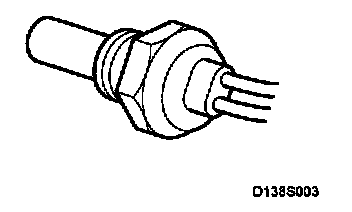

Engine Coolant Temperature Sensor

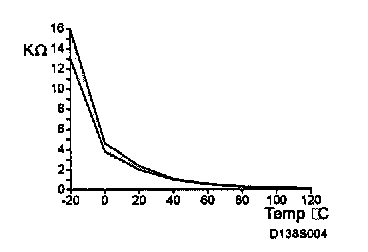

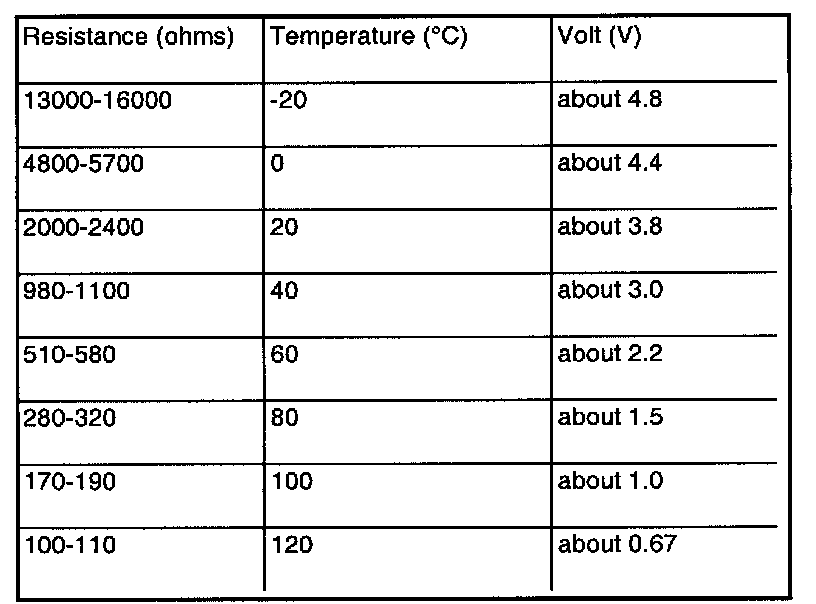

Engine Coolant Temperature Sensor:











Power supply 5 V through 0.68 kohm resistor in the control module.
