Outside Temperature Display Sensor
Outside Temperature Display Sensor

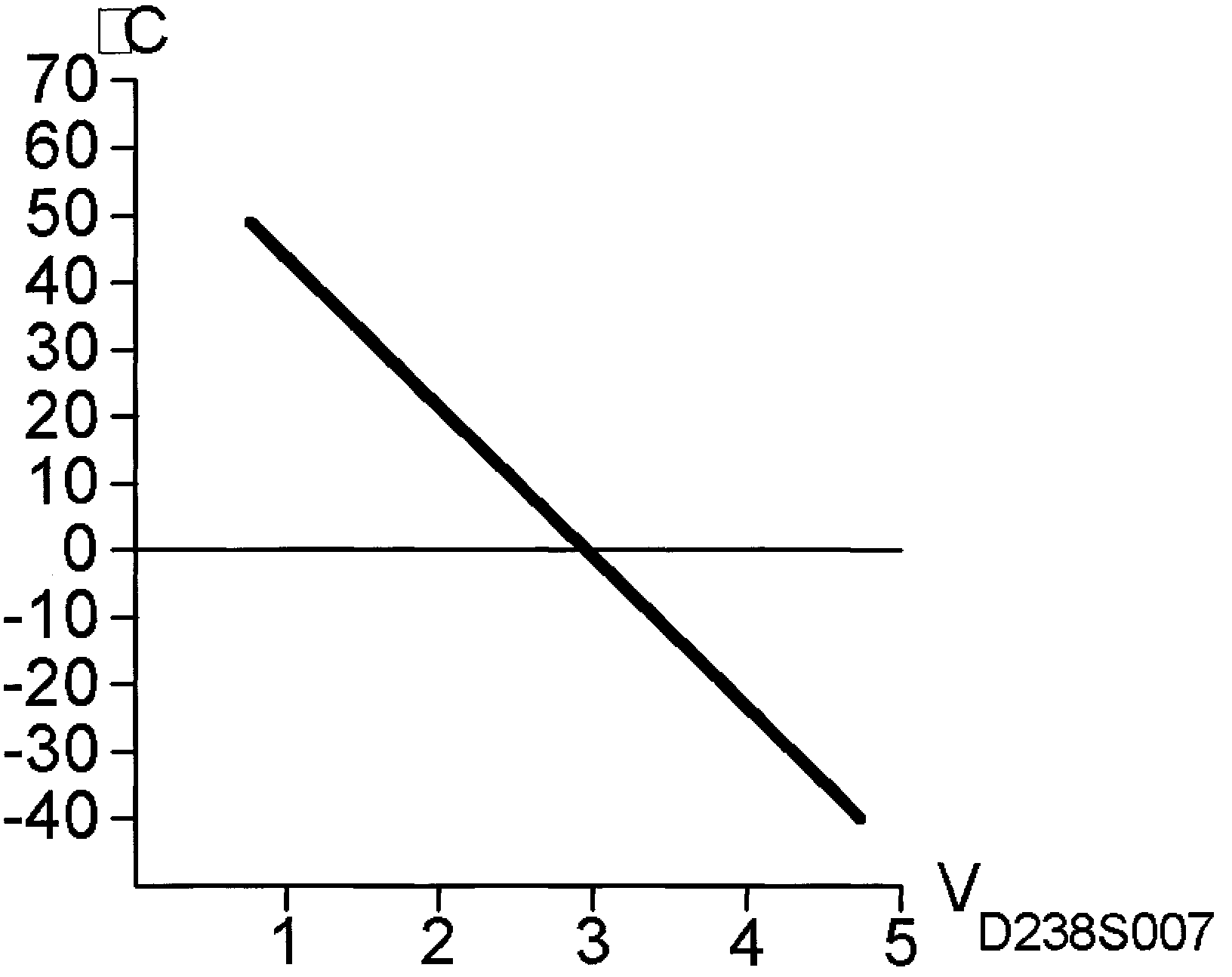

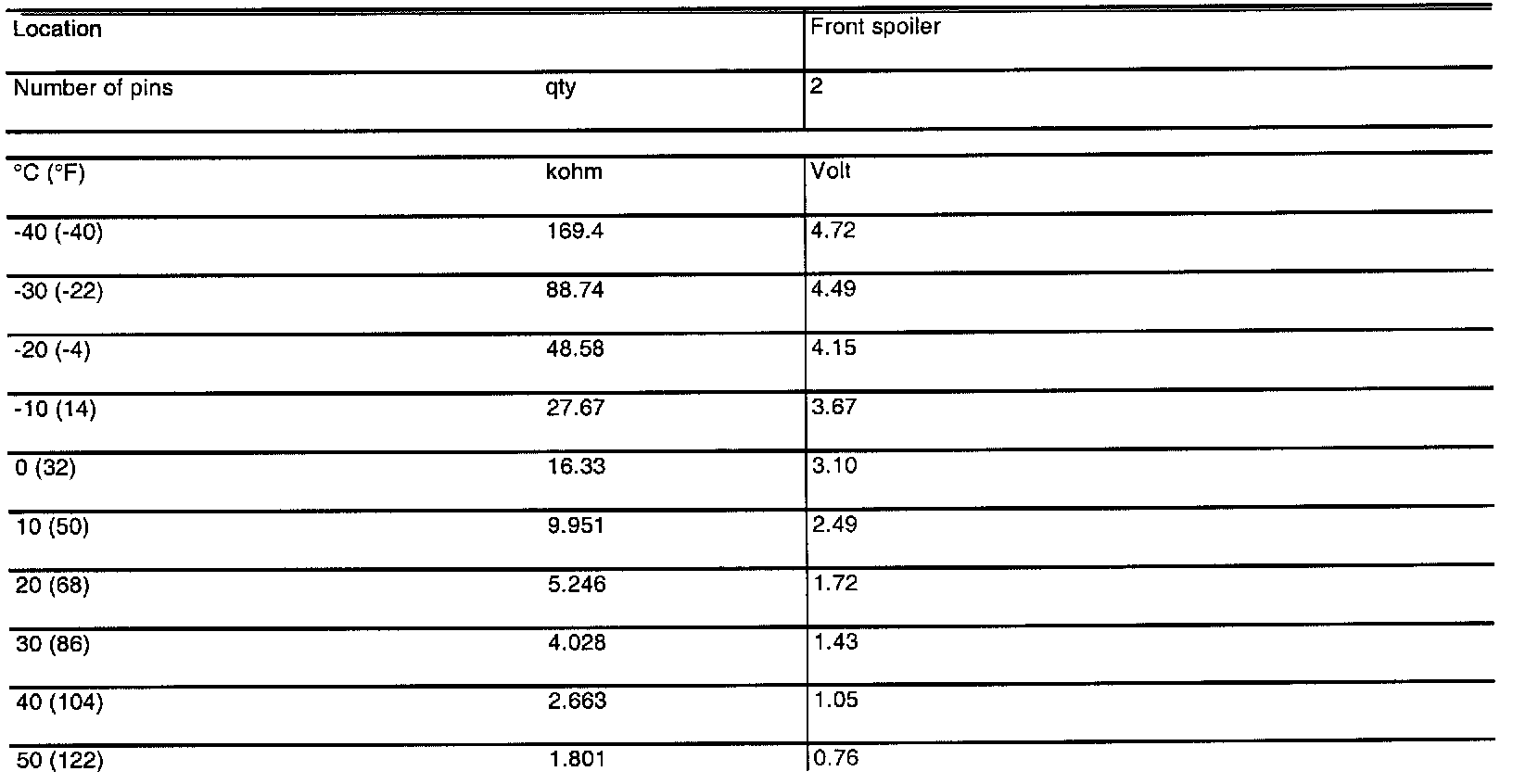

Temperature Sensor, Outdoor:
Power supply
5 V
through a
10 kohm
resistor in the control module.
