Impact Sensor



Side Impact Sensor

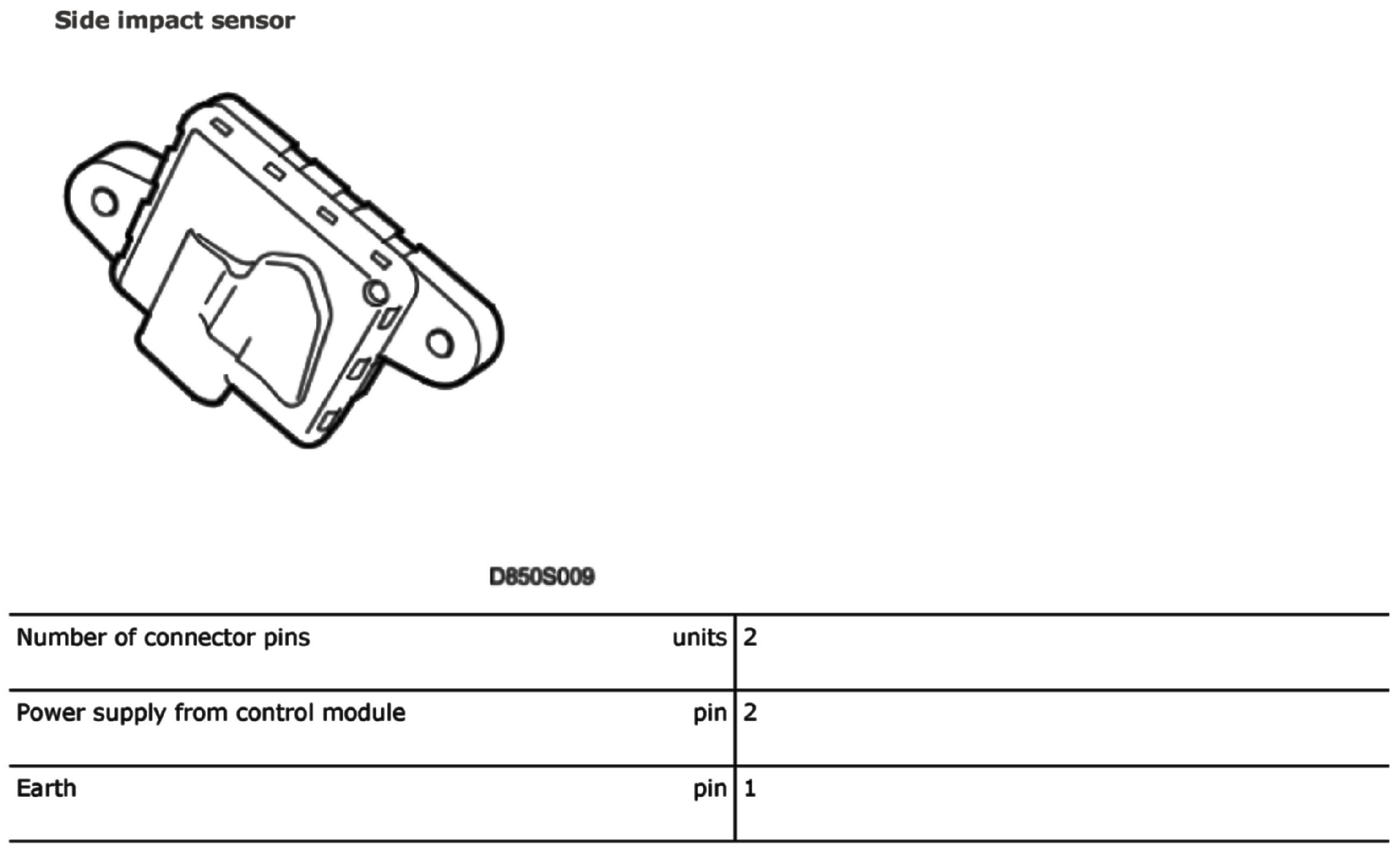

Side Impact Sensor:






The side impact sensor is specific to the door and the car on which it is fitted. There are four different side impact sensors.
- Driver, 5D
- Passenger, 5D
- Driver, 3D
- Passenger, 3D
