Specifications
>>
Electrical Specifications
>>
Heating and Air Conditioning
>>
High Pressure Sensor / Switch, HVAC
>>

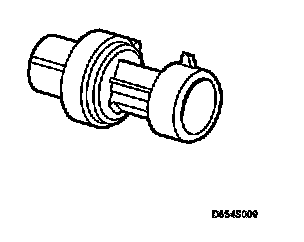

Pressure Sensor (620)

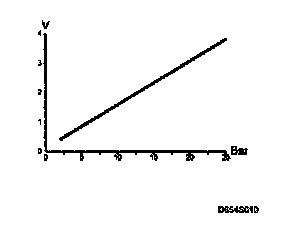

Pressure Sensor (620)
Bar
V
2
V0.4
10
V1.6
15
V2.35
20
V3.1
25
V3.85
