Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Heating and Air Conditioning >> Cabin Temperature Sensor / Switch >> Cabin Temperature Sensor, ACC

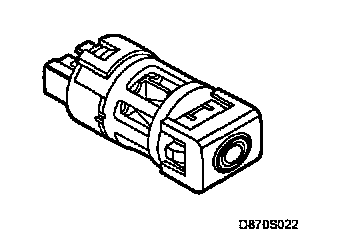

Cabin Temperature Sensor, ACC

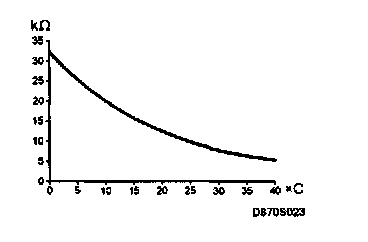

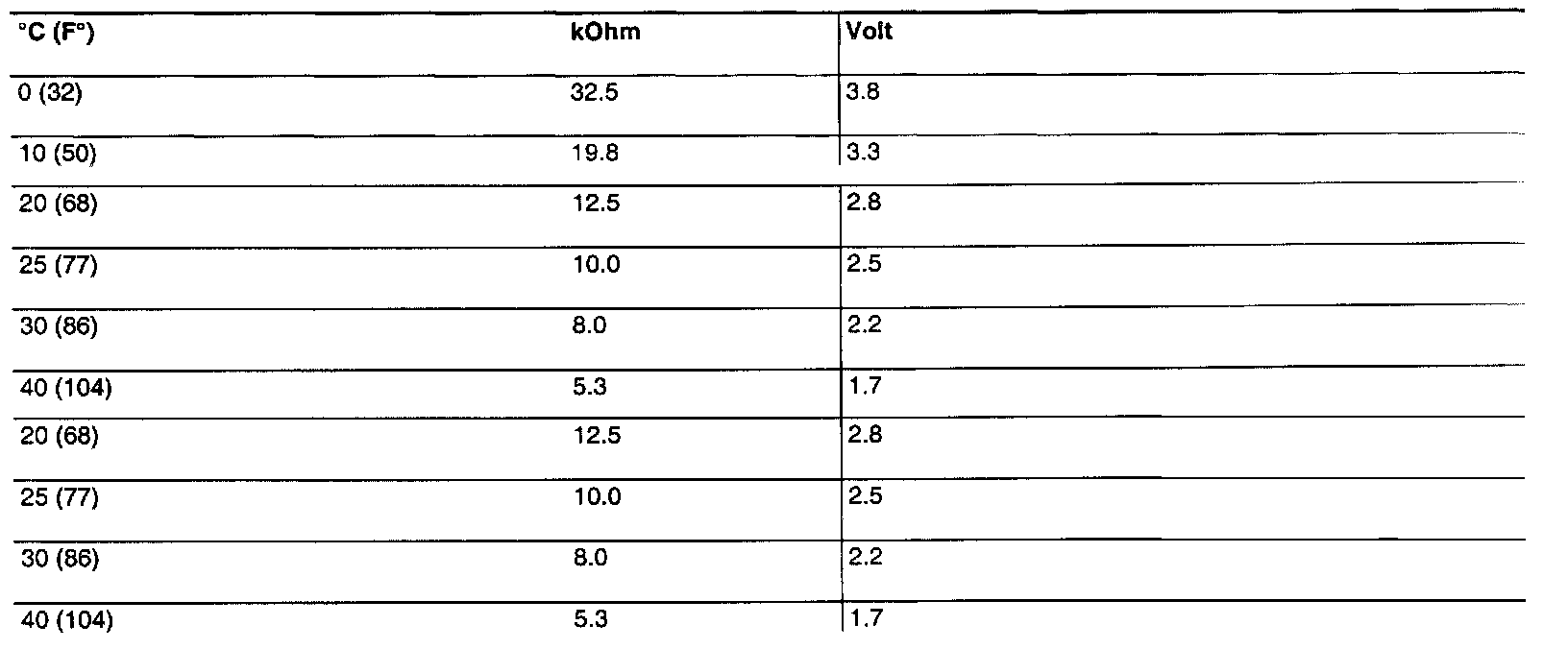

The cabin temperature is supplied with a 5 V current through a 10 kOhm resistor in the control module.
