Trionic T7, 4-Cyl OBD II

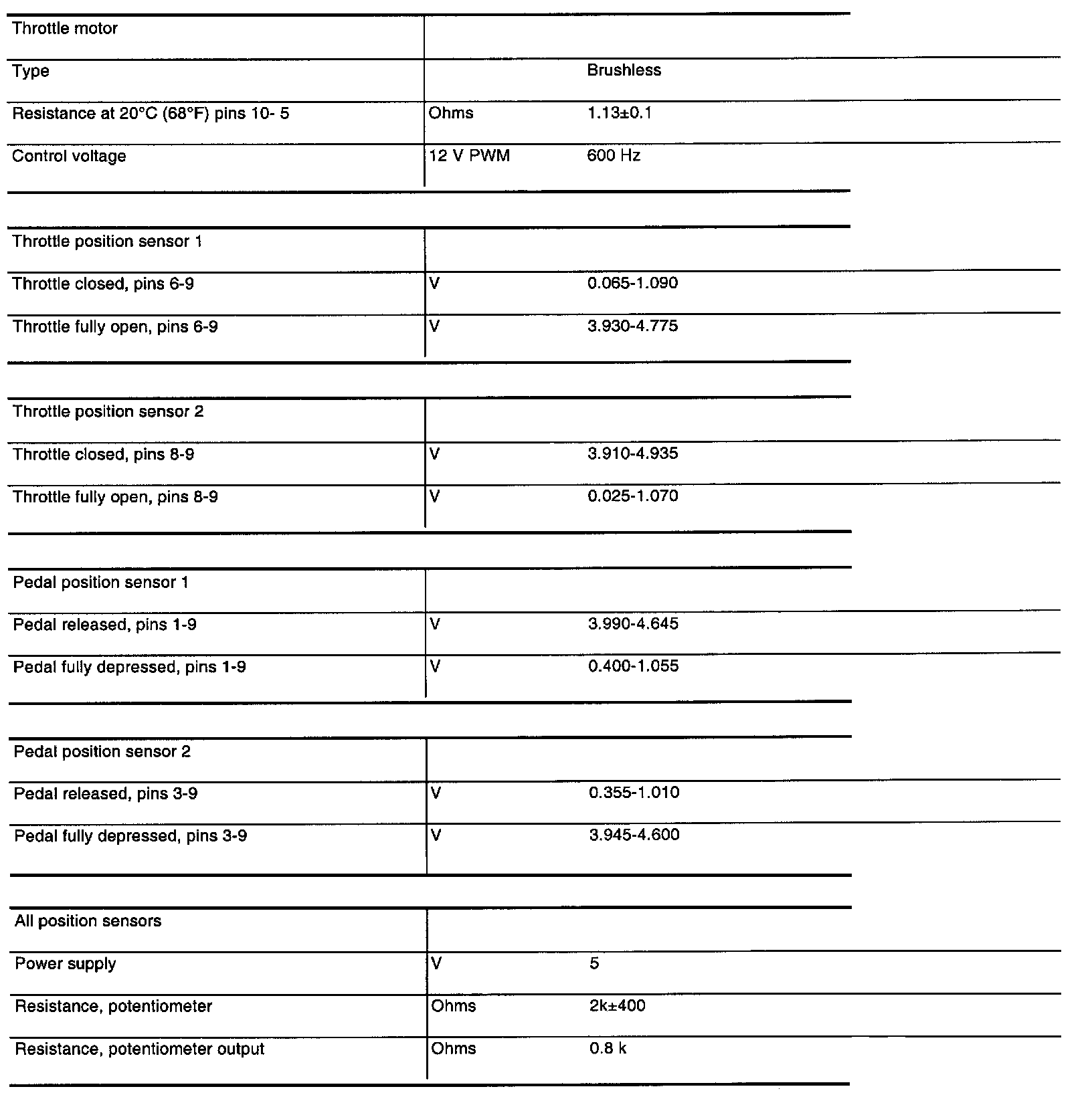

All the potentiometers are connected in parallel between 5 V and ground. The total resistance is therefore approx. 500 ohms ± 100 ohms.
Avoid taking resistance reading during fault diagnosis. Use voltage readings for the respective position sensors instead.
