Mixed-Air Temperature Sensor, ACC

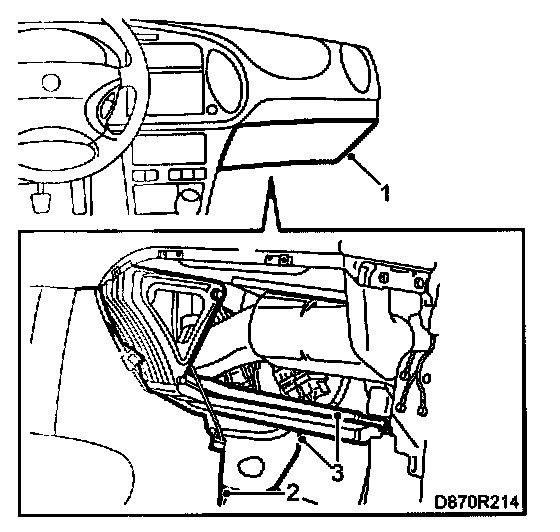

Removing







1 Remove the glove box.
2 Remove the side panel from the centre console.
3 Remove the floor air duct.
4 Unhook and pull out the mixed-air temperature sensor.







5 Remove the connector and press out the sensor leads.

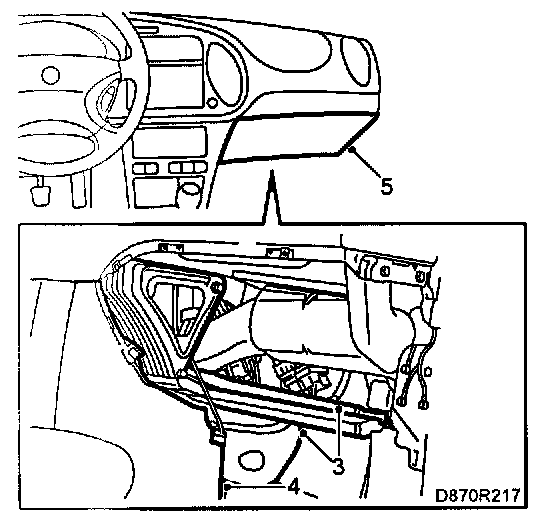

Fitting
1 Fit the leads in the connector and plug in the connector.
2 Ft the mixed-air temperature sensor in the climate control unit. Check that the sensor snaps into position.
3 Refit the fear air duct.







4 Refit the side panel on the centre console.
5 Refit the glove box.
Calibrate the ACC-system by simultaneously pressing the buttons "AUTO" and "OFF".


IMPORTANT
All previous diagnostic trouble codes are erased when calibrating. Obtain readouts of stored diagnostic trouble codes before calibrating.
