Impact Sensor: Application and ID

Side Impact Sensor:

Number of connector pins 2 units
Power supply from control module 2 pin
Ground 1 pin

NOTE: The Side Impact Sensor Is Specific To The Door And The Car On Which It Is Fitted. There Are Four Different Side Impact Sensors.

- Driver and passenger, 5D
- Driver and passenger, 3D

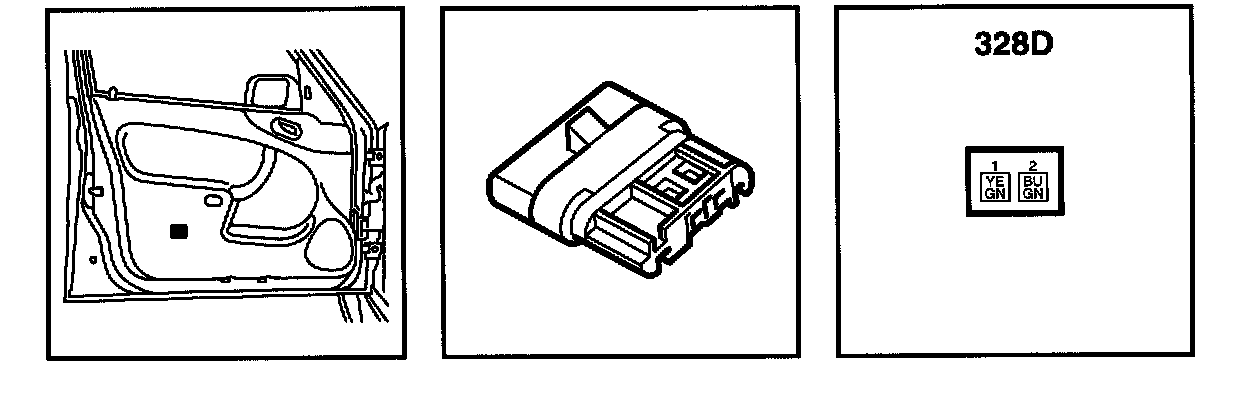

Side-Collision Sensor, Driver, (328D)

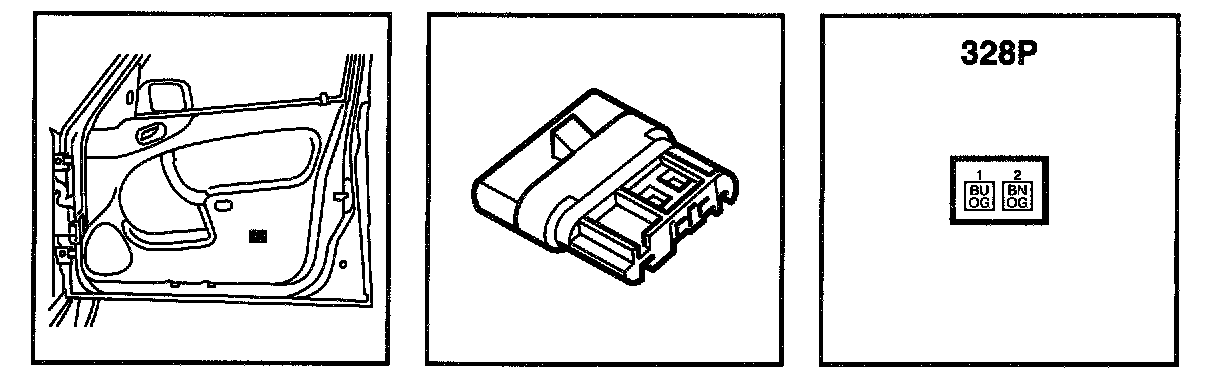

Side-Collision Sensor, Passenger, (328P)
