Seat-Belt Member

To remove







1 Remove the rear belts. Service and Repair
2 Lower the entire backrest with the belt member.
3 Undo the three nuts securing the belt member to the backrest plates and lift off the member.


NOTE: Let the 40% backrest bracket hang in locked position in the lock. This will facilitate the lock function when fitting.


To fit

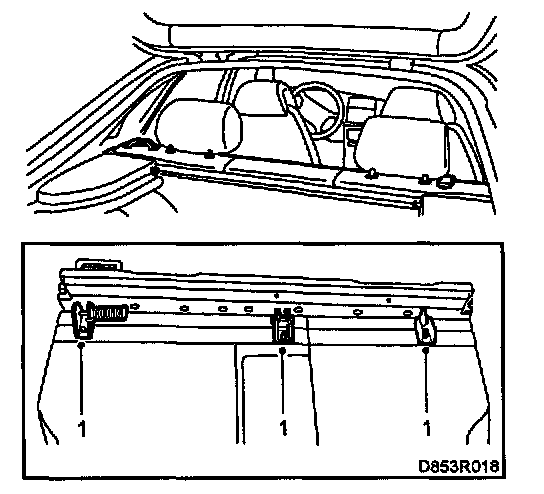

1 Refit the member and tighten the three nuts securing the belt member to the backrest plates.
2 Raise the entire backrest with the belt member.
3 Fit the rear belts.

NOTE: To facilitate correct fitting, press the belt member into the brackets before fitting the member to the backrest. Make sure the indicator showing that the member is properly locked is in working order.
