Strap Guide Cover, CV

Strap Guide Cover, CV

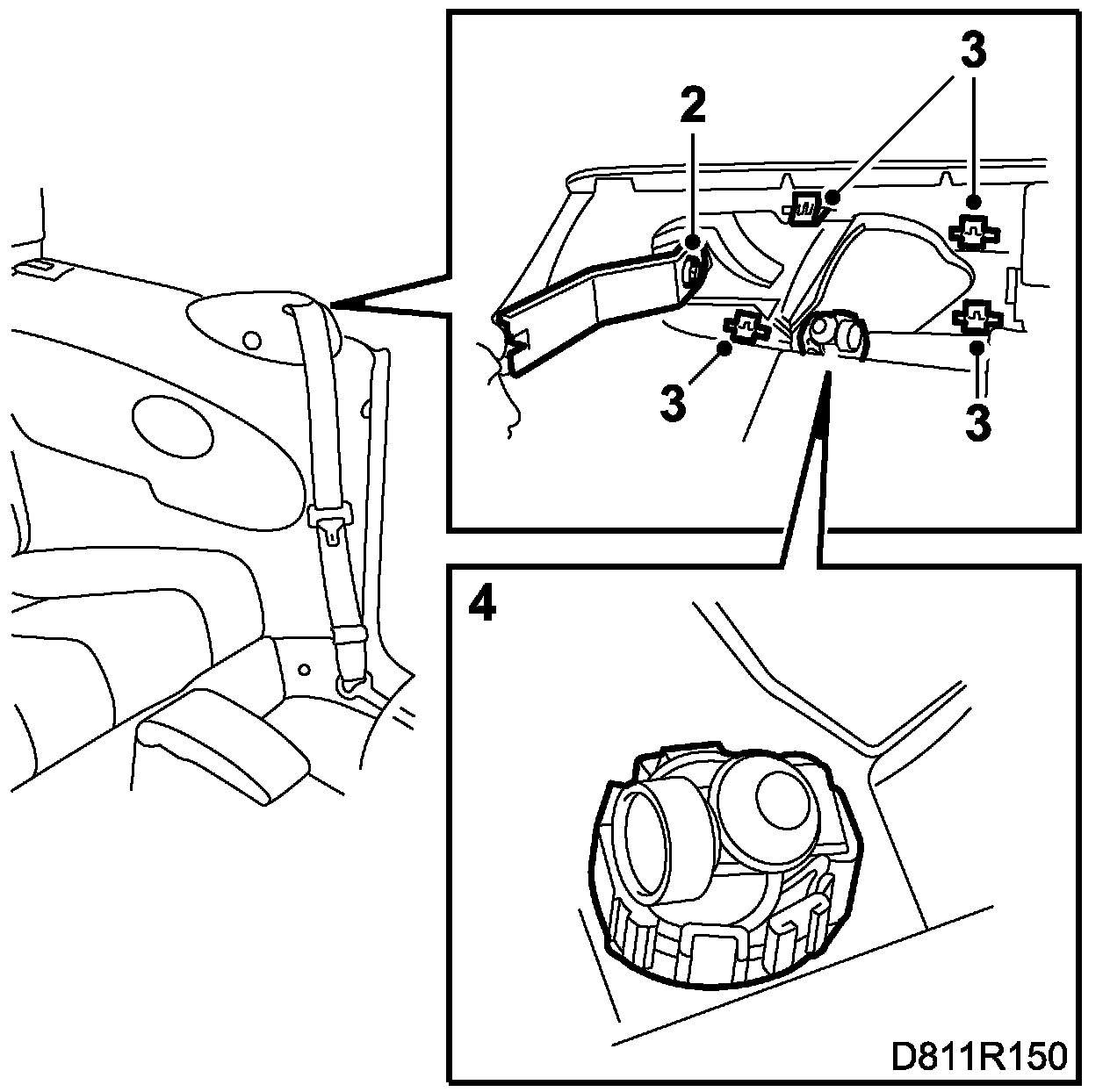

To remove







1. Remove the rear side trim.
2. Remove the bolt that secures the strap guide cover.
3. Remove the clips securing the strap guide cover and remove it from the trim.
4. Remove the interior lighting from the strap guide cover.

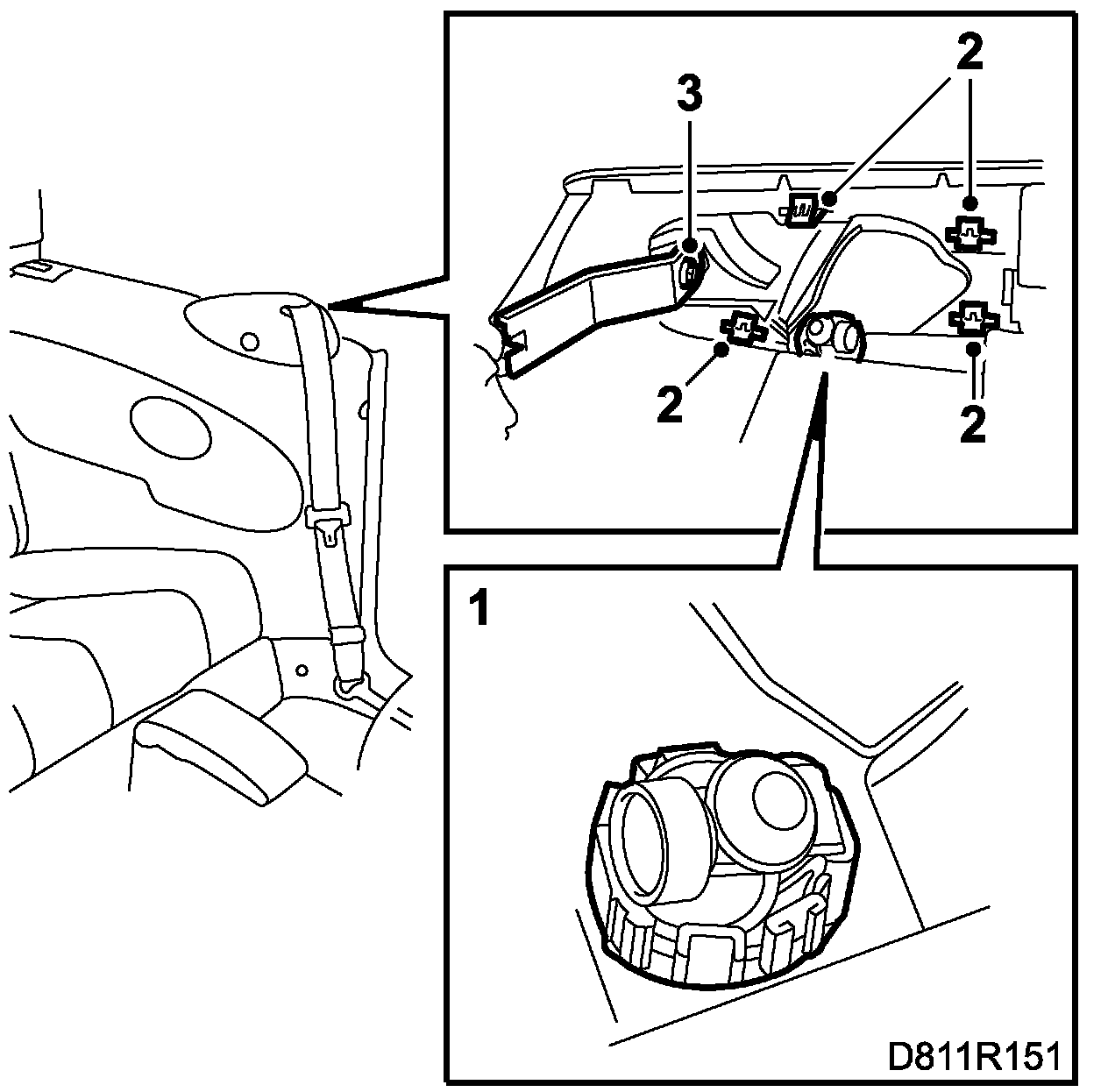

To fit







1. Fit the interior lighting in the strap guide cover.
2. Fit the strap guide cover on the trim and fasten the clips.
3. Tighten the bolt.
4. Refit the side trim.
