Front Seat Belts, CV

Front Seat Belts, CV

To remove

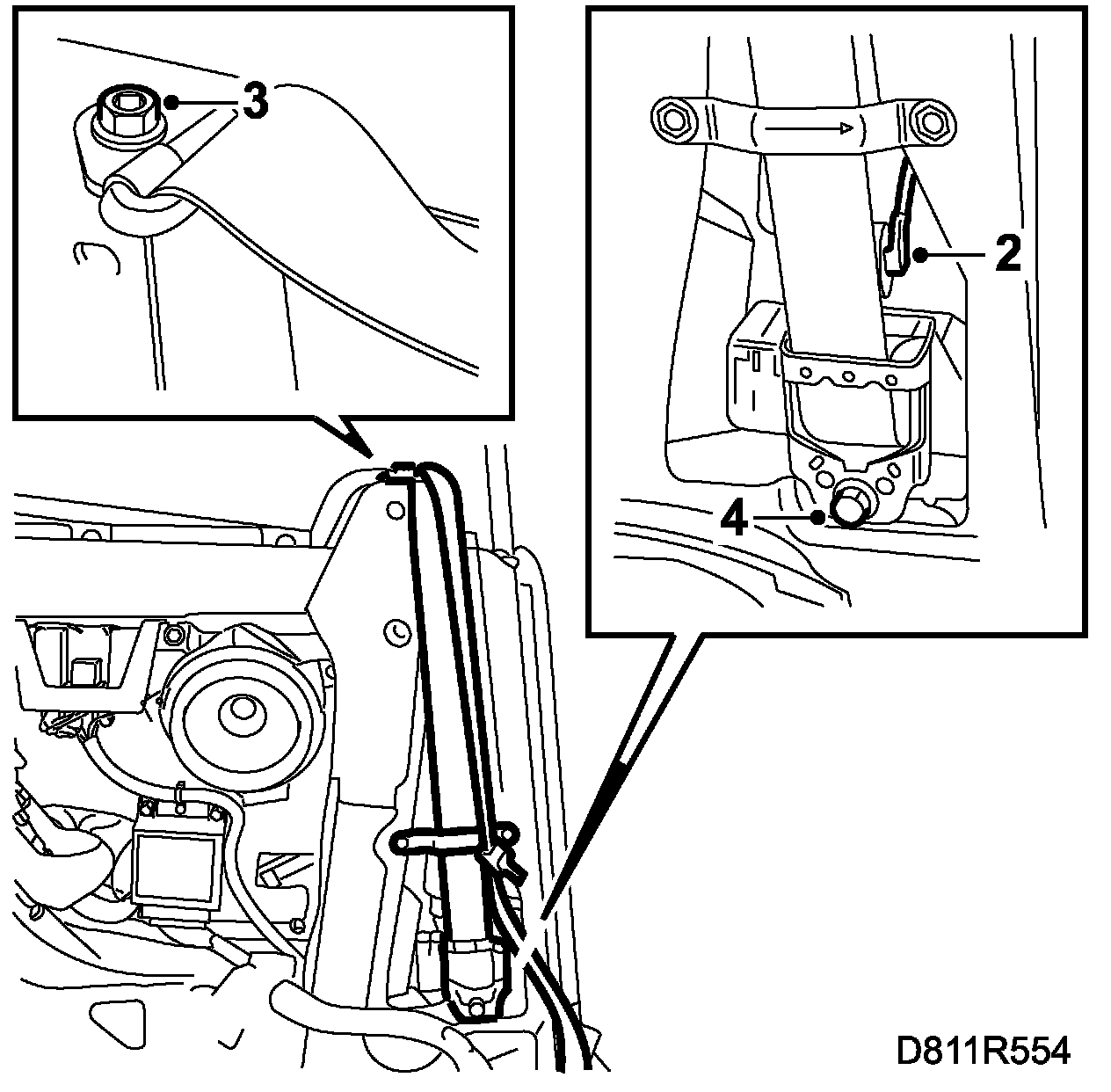

1. Remove the rear side trim.
2. Unplug the connector for the belt tensioner.







3. Remove the bolt securing the strap guide.
4. Remove the bolt securing the seat belt reel. Remove the seat belt and the belt tensioner.

To fit







1. Fit the seat belt reel and tighten the bolt securing it to the body.

Tightening torque: 45 Nm (33.3 lbf ft)

2. Tighten the bolt securing the strap guide.

Tightening torque: 45 Nm (33.3 lbf ft)

3. Plug in the connector for the belt tensioner.
4. Refit the side trim.
