Seat-Belt Buckle, Front

Seat-belt Buckle, Front

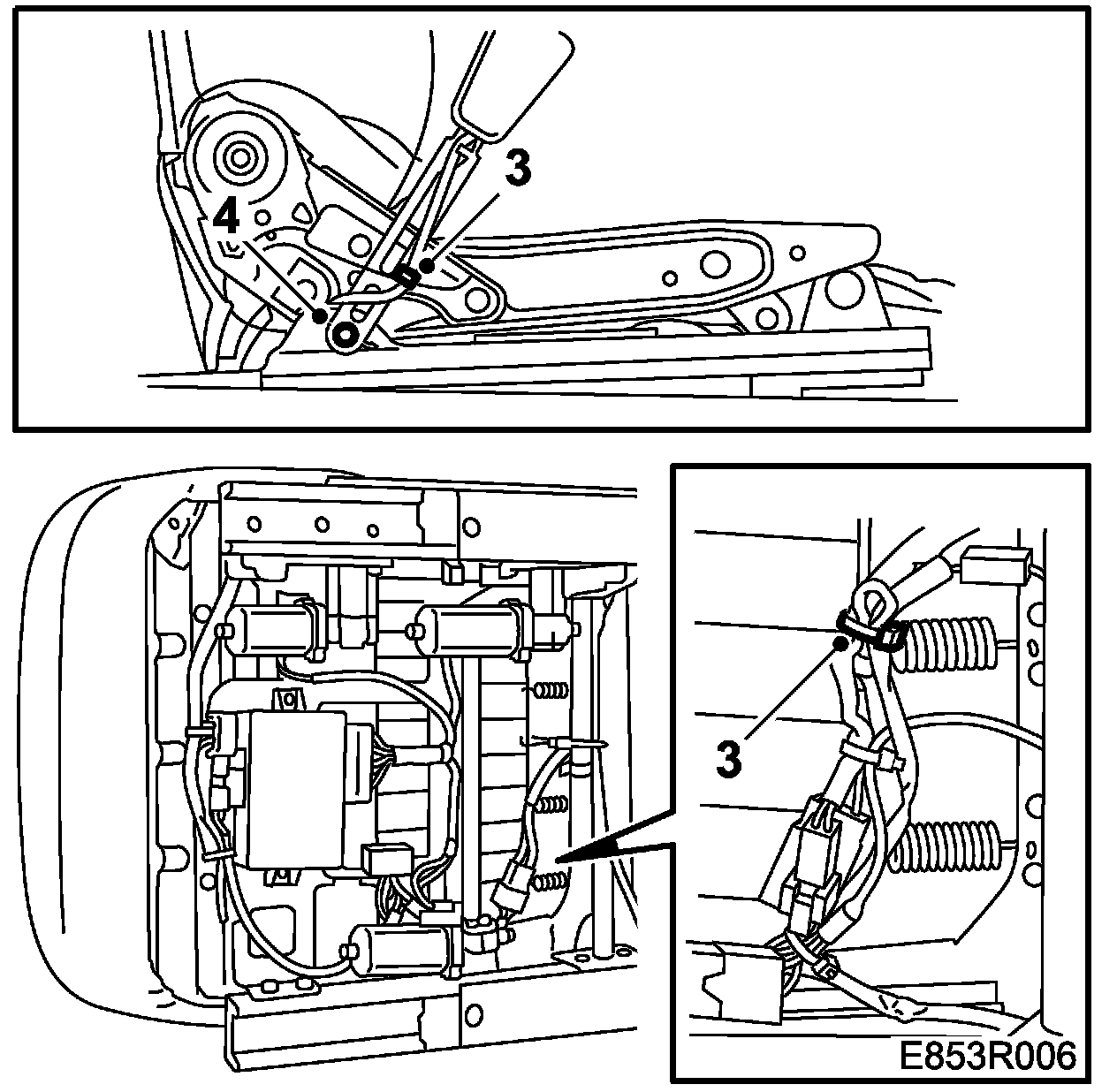

To remove







1. Remove the front seat.
2. Loosen the strip on the back of the seat base.
3. Cut off the cable tie and unplug the connector.
4. Unscrew the belt buckle.

To fit

Fit in reverse order.

Tightening torque: Belt buckle retaining screw 33 Nm (24.4 lbf ft)

Fit the front seat
