Rear Seat Belt Buckle, CV

Rear Seat-belt Buckle, CV

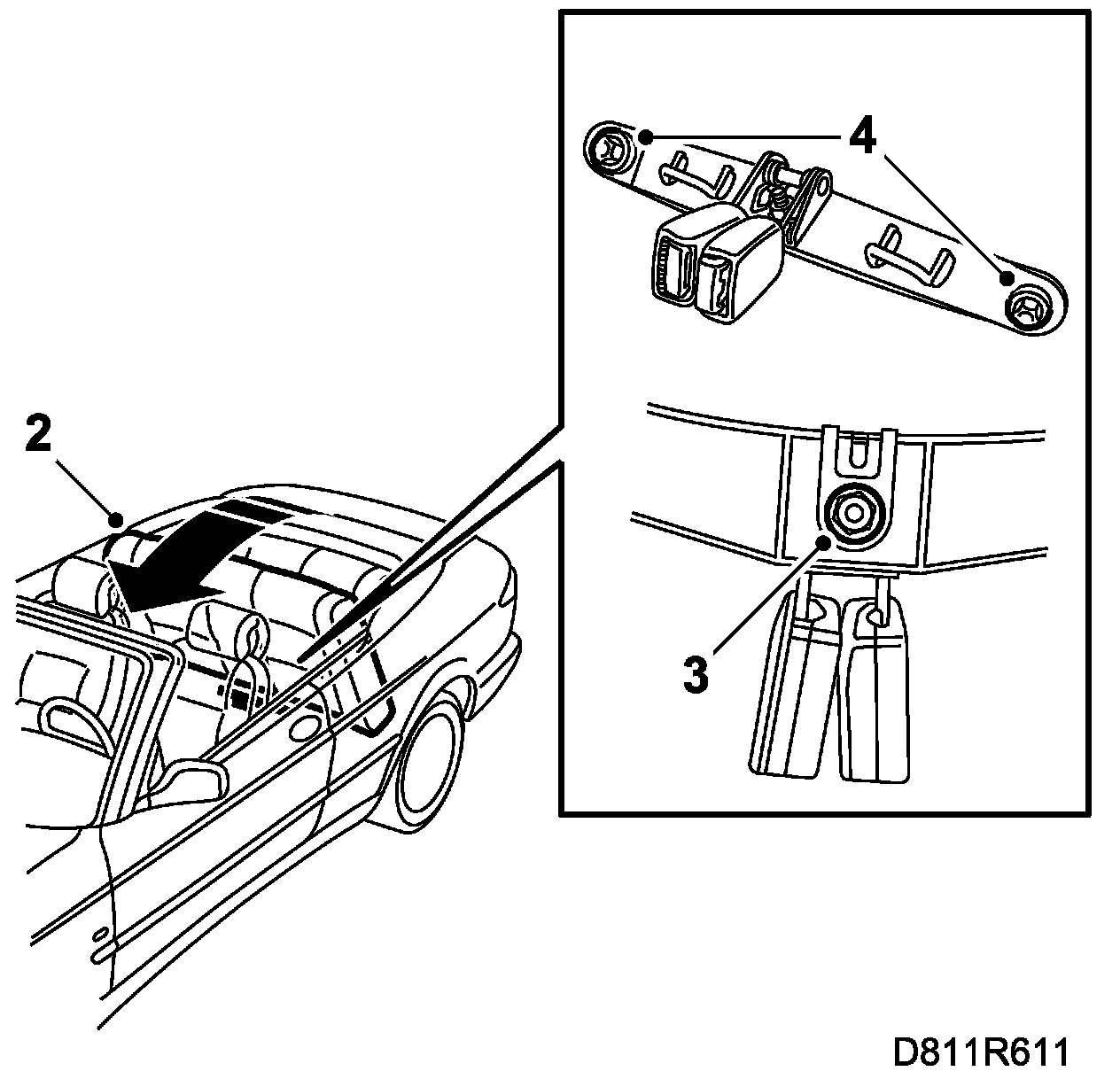

To remove







1. Remove the rear seat cushion.
2. Fold the backrest cushion forward halfway so that the bolts securing the belt-buckle are accessible.
3. Remove the nut securing the belt-buckle.
4. Remove the bolts securing the belt-buckle bracket.

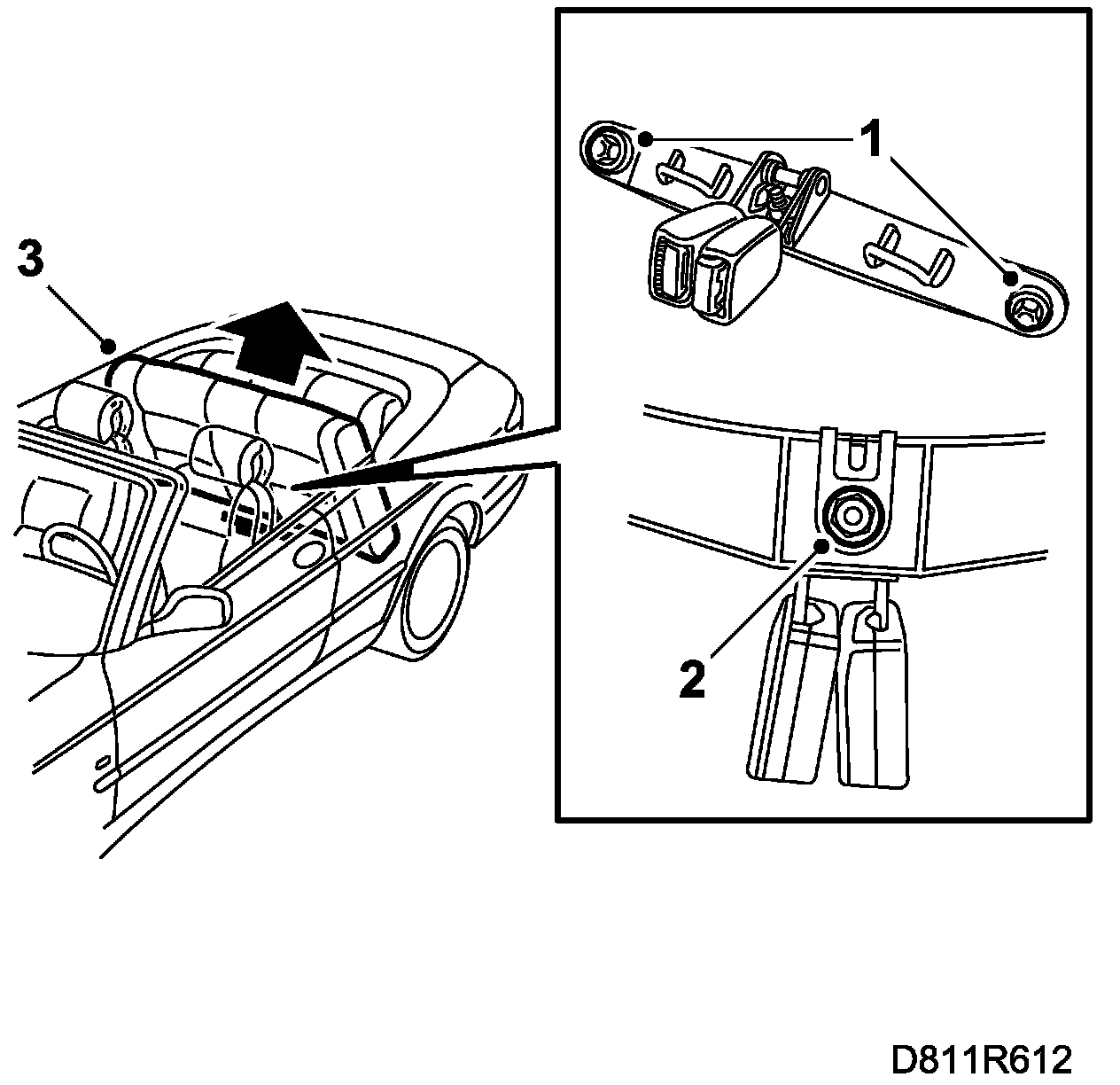

To fit







1. Fit the belt-buckle bracket and tighten the bolts.

Tightening torque: 45 Nm (33.3 lbf ft)

2. Fit the belt-buckle and tighten the nut.

Tightening torque: 45 Nm (33.3 lbf ft)

3. Refit the seat cushion.
