Component Index

Component Index

22a Fuseboard, dashboard; on end of
dashboard next to driver's door
47t Warning lamp, SRS/AIRBAG; on
main instrument display panel
236D Seat-belt tensioner, driver, in B pillar.
236P Seat-belt tensioner, passenger, in B.
pillar
328D Collision sensor, driver's door; in the
door
328P Collision sensor, passenger's door; in
the door

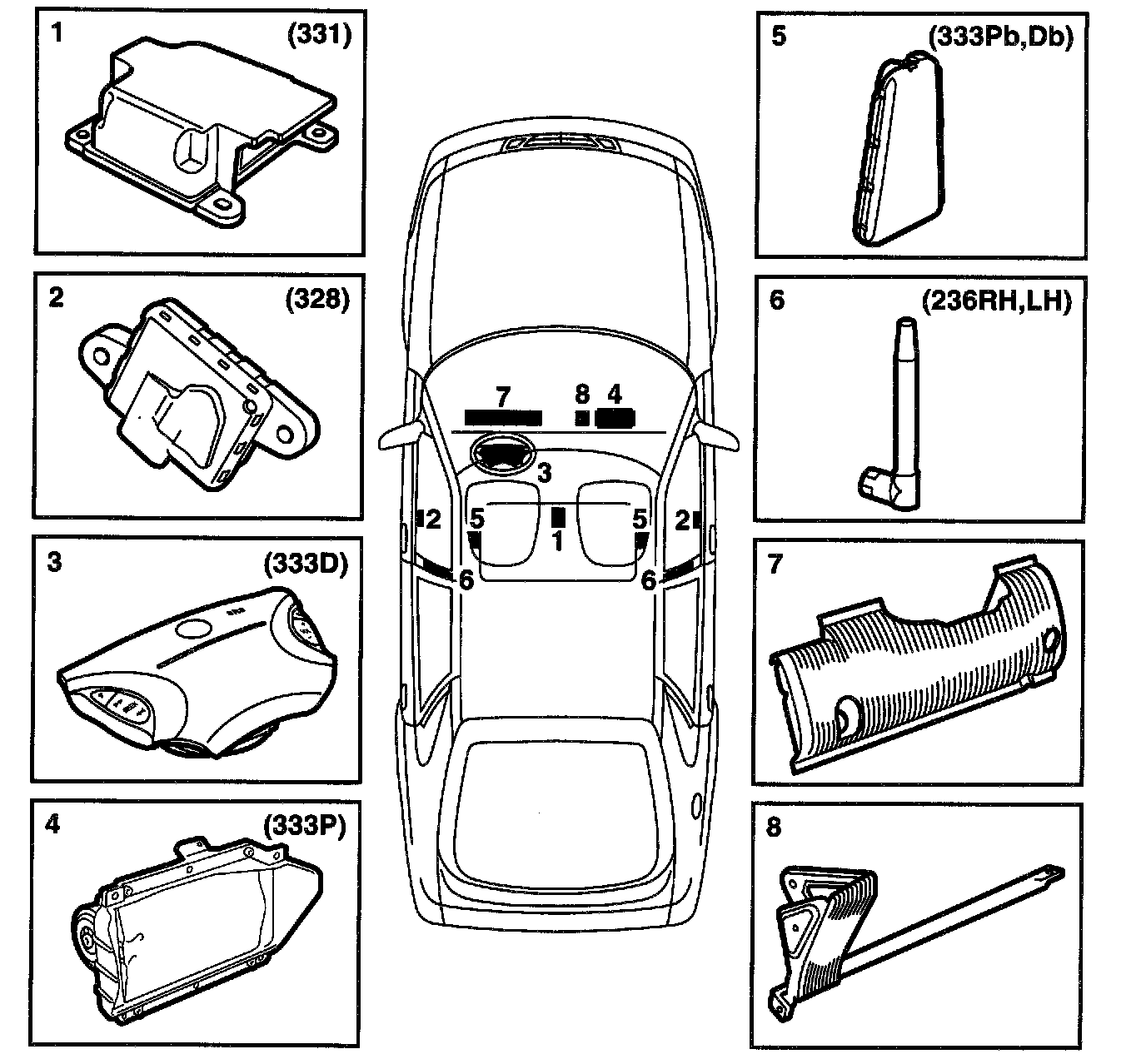

331 Control module SRS/Airbag; under
the floor console behind the parking
brake
333D Airbag, driver; in the steering wheel
333Db Airbag, side, driver; in the driving seat
333P Airbag, passenger; in the dashboard
333Pb Airbag, side, passenger front: in the
passenger seat
336a Contact unit, steering wheel, airbag;
in the steering wheel behind the
shock protector
445 Diagnostic socket, 16-pin, CARB; under the
dashboard next to the steering column
540b Main instrument display panel; ahead
of the driver in the dashboard
540c Main instrument display panel, diesel;
ahead of the driver in the dashboard
