Knee Shield, Driver



Knee Shield, Driver

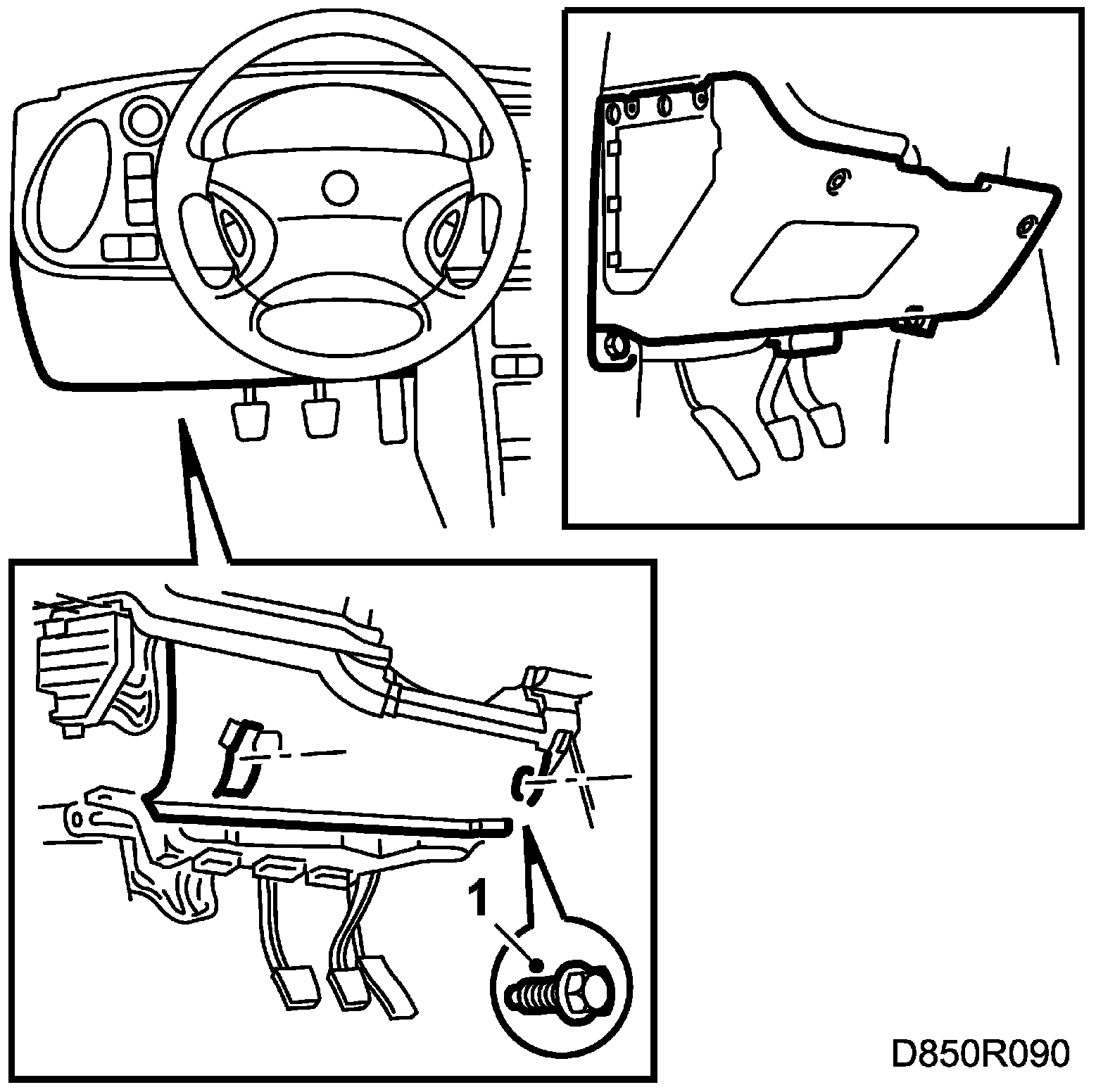

To remove







1. Remove the panel below the steering wheel.
2. Remove the two screws that hold the knee beam and lift it clear.

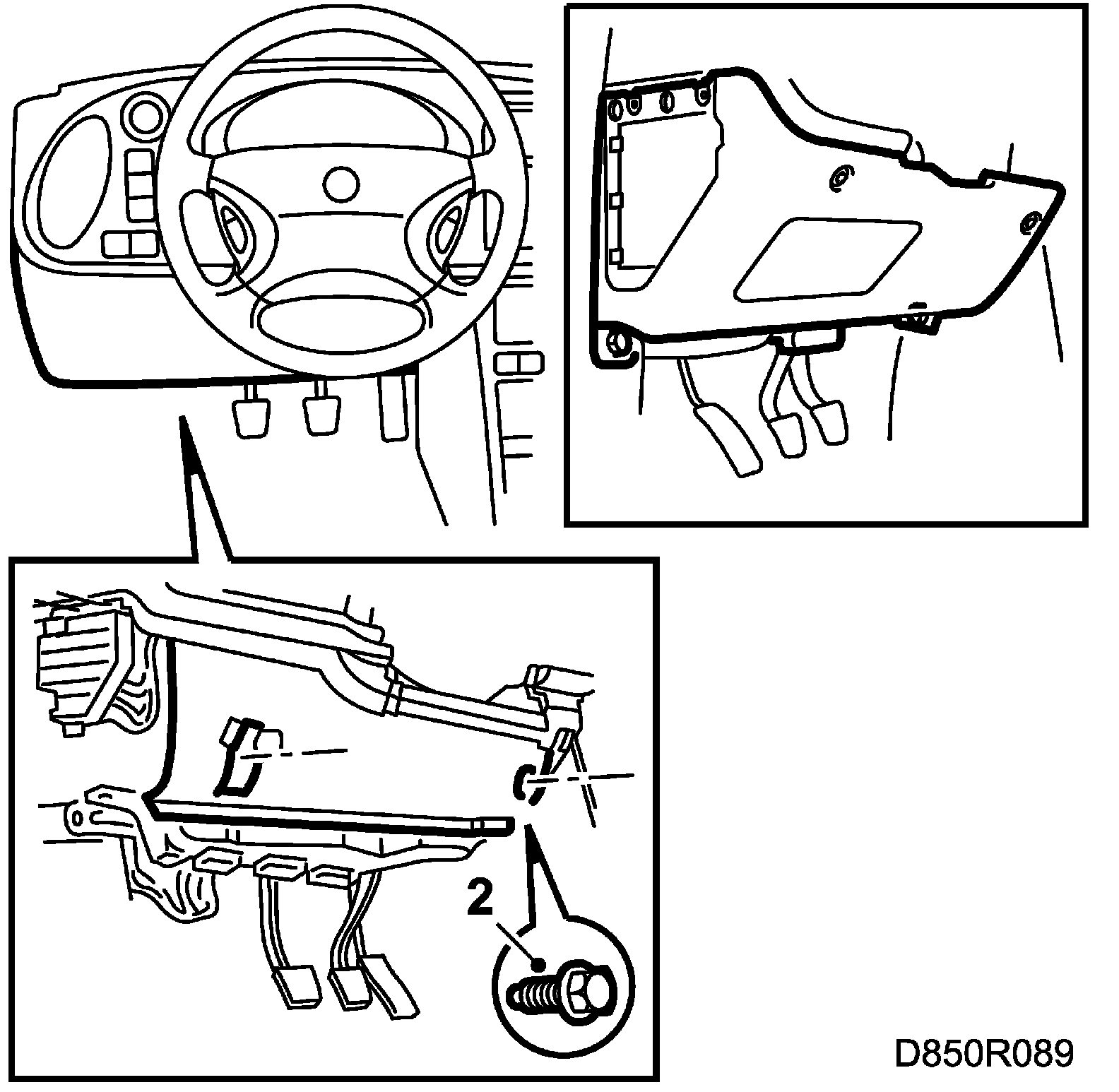

To fit







1. Put the knee beam into place and make the two screws tight.
2. Put the panel back beneath the steering wheel.
