Tech 2 Menu Structure

Diagnostic trouble codes (DTC)
Read Values/Activate
Adjustment
Programming
Snapshot
System information

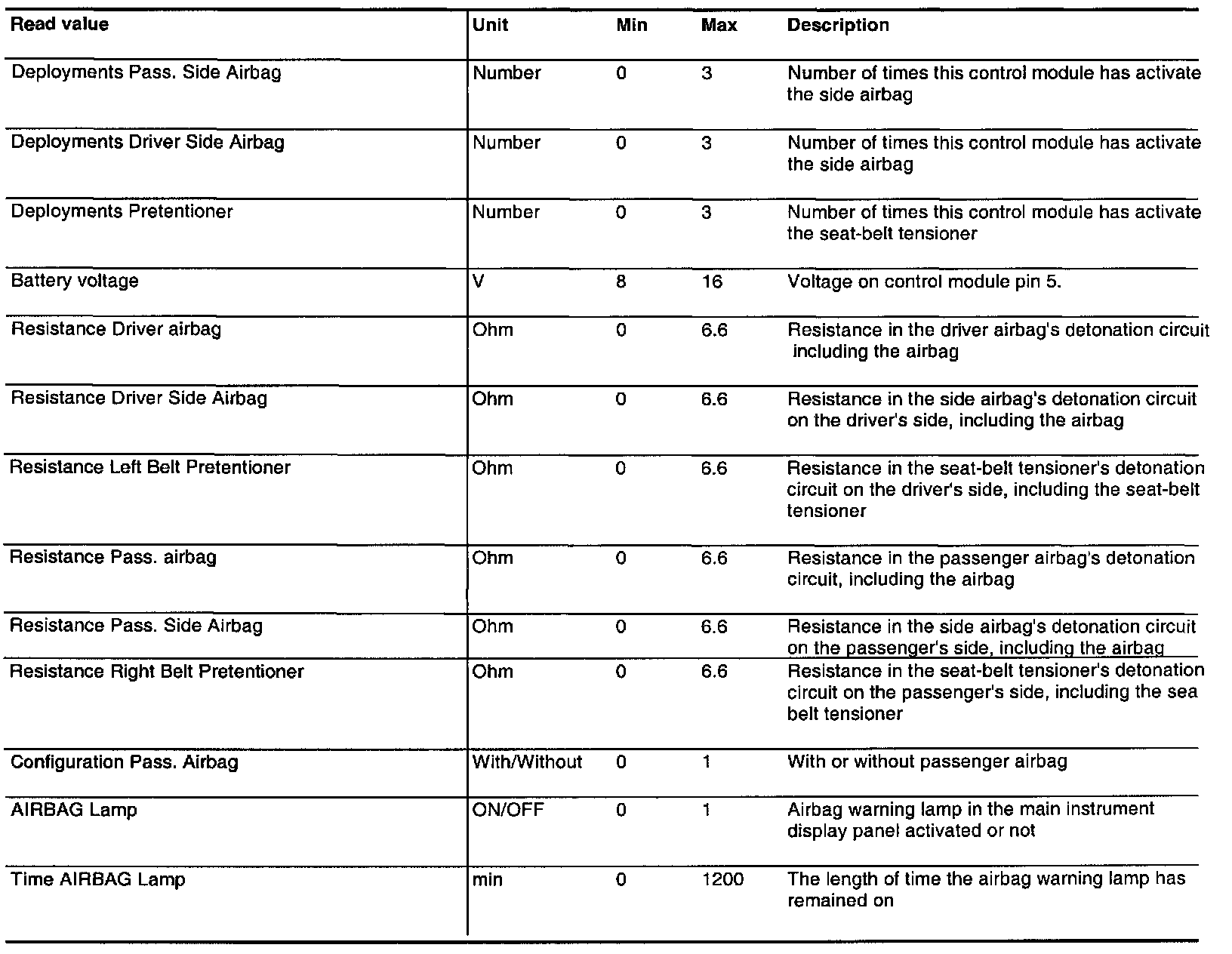

Read value

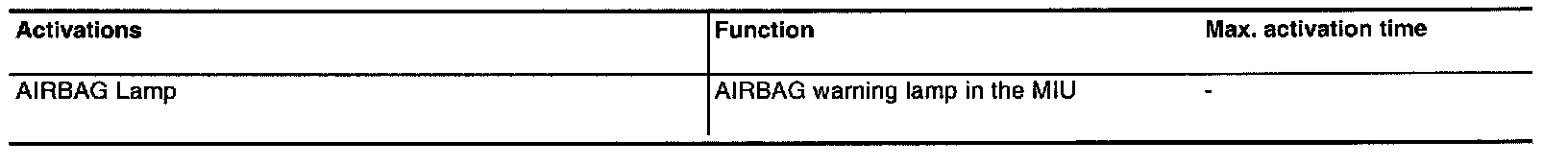

Activations







Programming







Command menu "System information"

Text Function
Part Number Shows SAAB's X-digit part number for the control module
Hardware Version Number: Shows the suppliers X-digit pan number to the software.
Software Version Number: Shows the supplier's X-digit part number to the control module.
