Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagrams >> Electrical Diagrams >> Supplementary Restraint System, LHD

Supplementary Restraint System, LHD

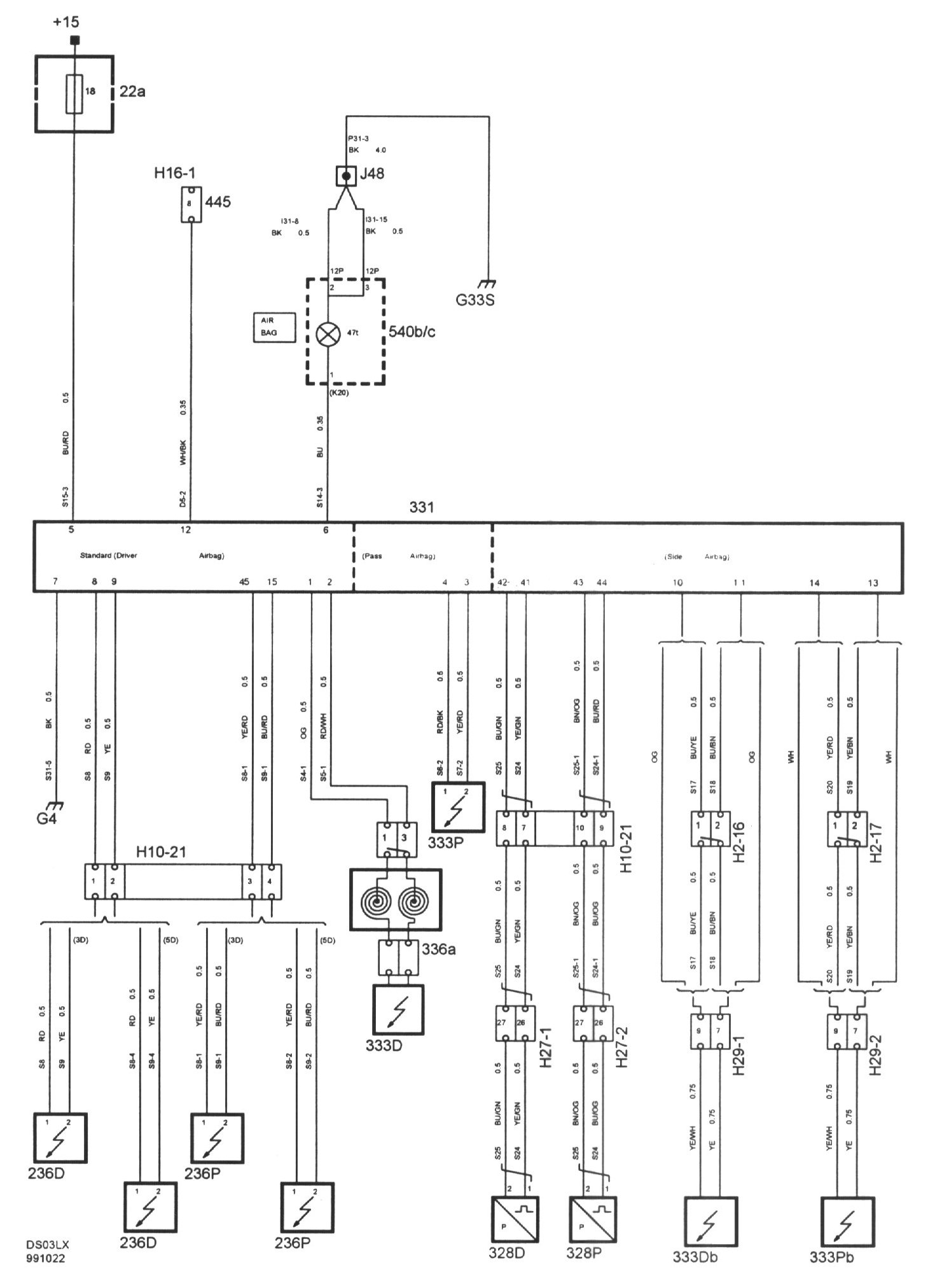

Wiring diagram

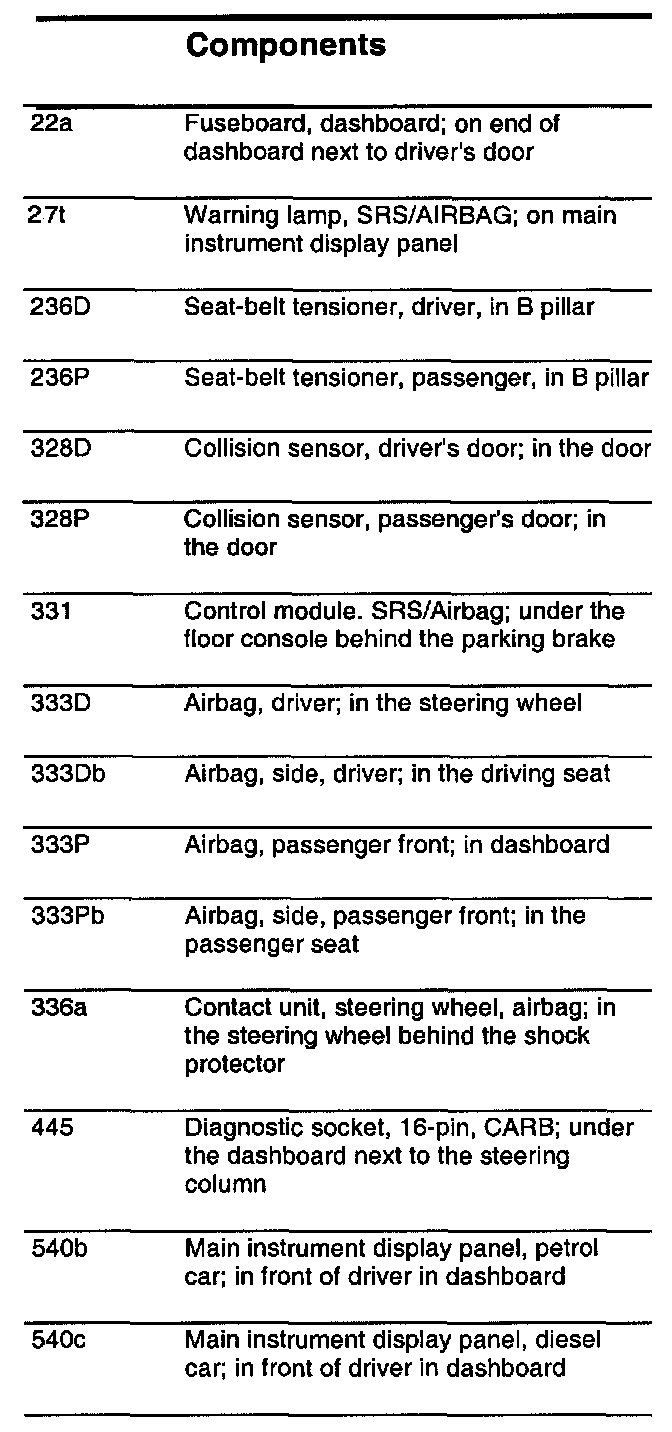

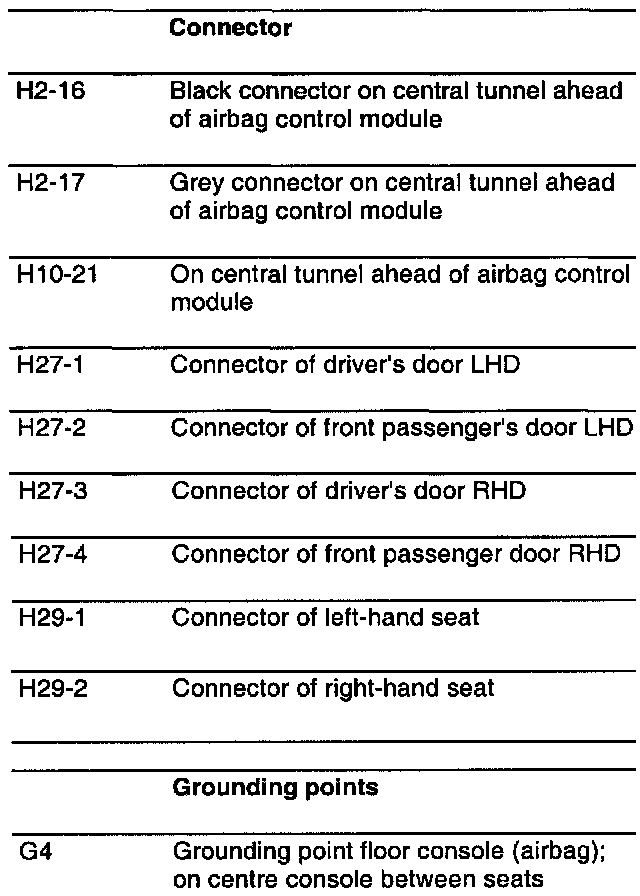

List of components
