Convertible Top Control Module: Service and Repair

Control Module

Removing

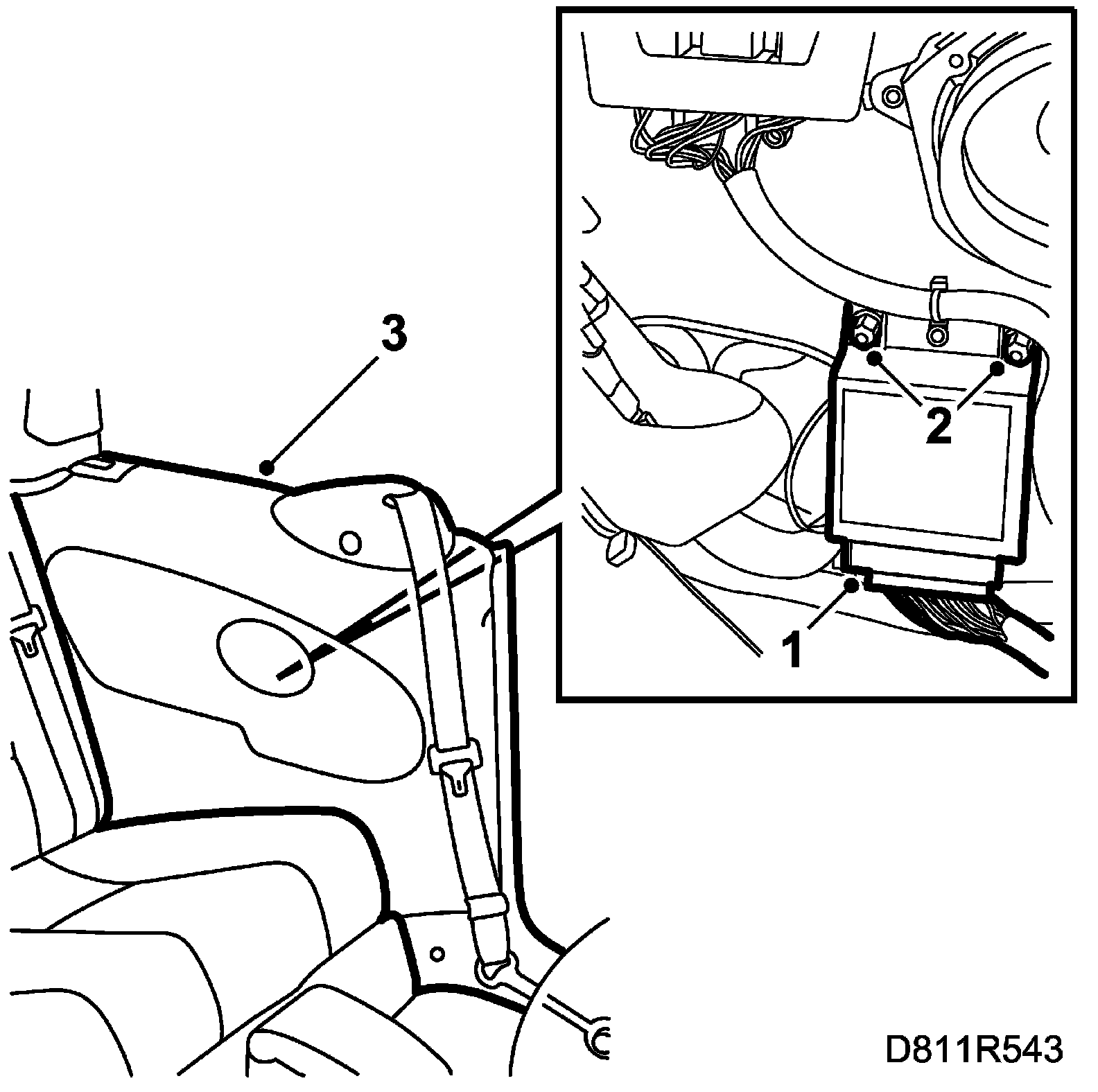

1. Lower the soft top and position the soft top cover straight up.
2. Remove the side trim.







3. Note the number of soft top cycles before changing the control module.

IMPORTANT:
- ESD-SENSITIVE COMPONENT
- Ground yourself by touching the car body or engine before unplugging or plugging in the component. Never touch the connector pins. Prior to changing a control module refer to Before changing a control module.

4. Remove the control module.
5. Unplug the connector.

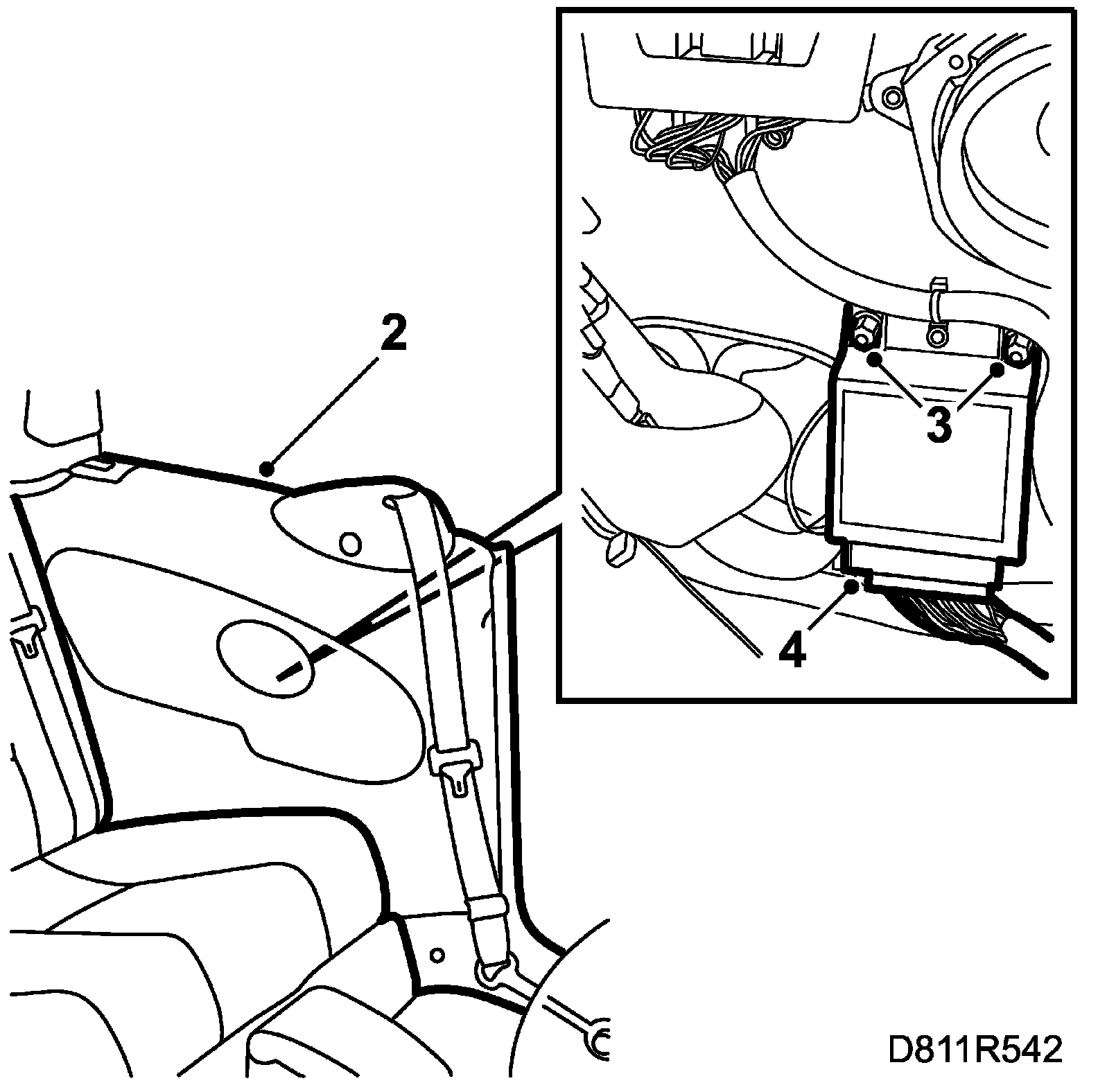

Fitting







1. Plug in the connector.

IMPORTANT:
- ESD-SENSITIVE COMPONENT
- Ground yourself by touching the car body or engine before unplugging or plugging in the component. Never touch the connector pins. Prior to changing a control module refer to Before changing a control module.

2. Fit the control module and tighten the nuts.
3. Fit the side trim.
4. Connect the diagnostics tool and erase any diagnostic trouble code.
5. Run the soft top up and down a few times and check the function.
