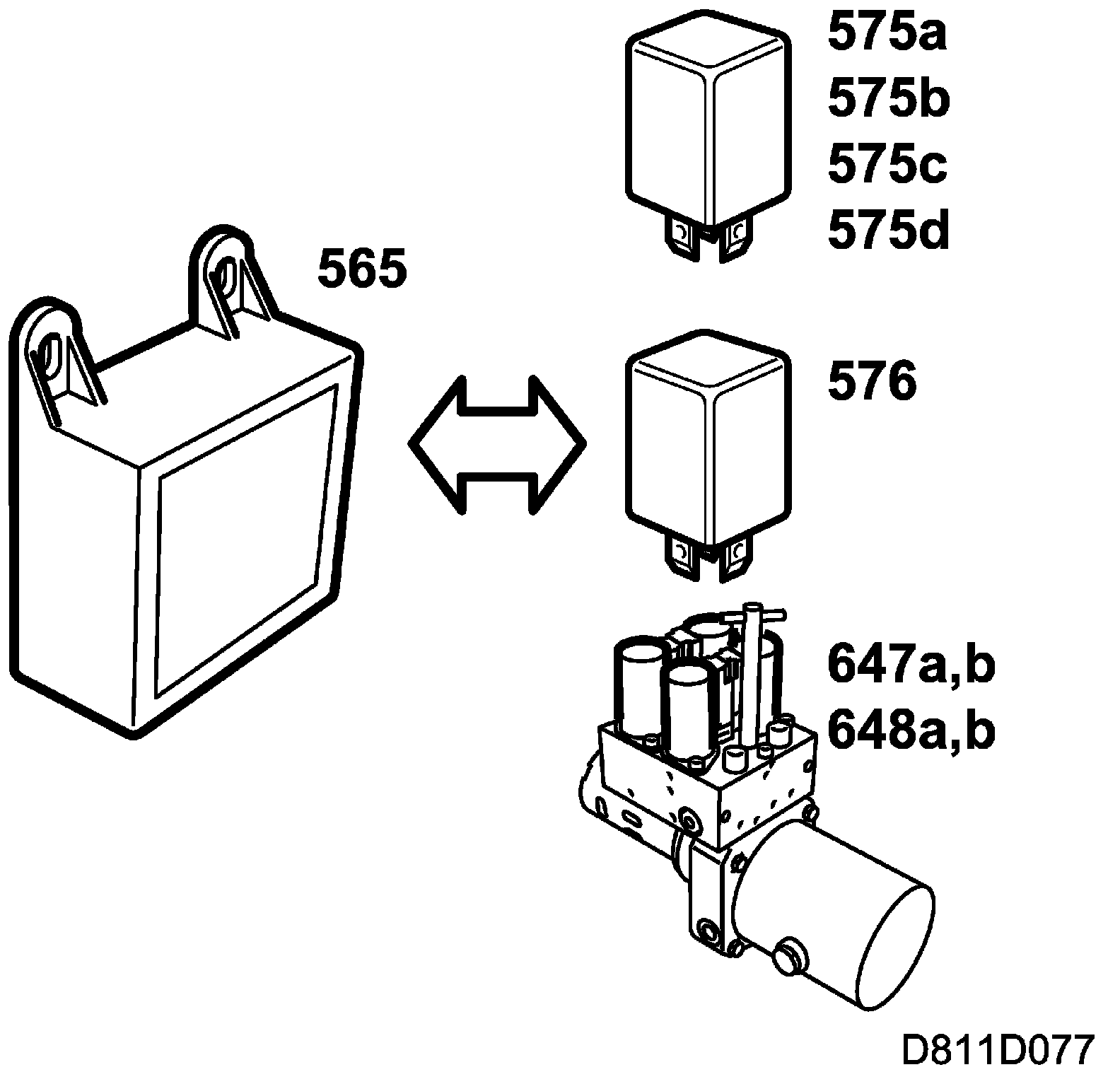

Control Module Outputs, VR Bus

Control Module Outputs, VR Bus







- Relay, front left window lift (575a).
- Relay, front right window lift (575b).
- Relay, rear left window lift (575c).
- Relay, rear right window lift (575d).
- Relay, fifth bow latch motor (576)
- Hydraulic valve 1, fifth bow down (647a).
- Hydraulic valve 2, main cylinder up (647b).
- Hydraulic valve 3, fifth bow up (647c).
- Hydraulic valve 4, main cylinder down (647d).
