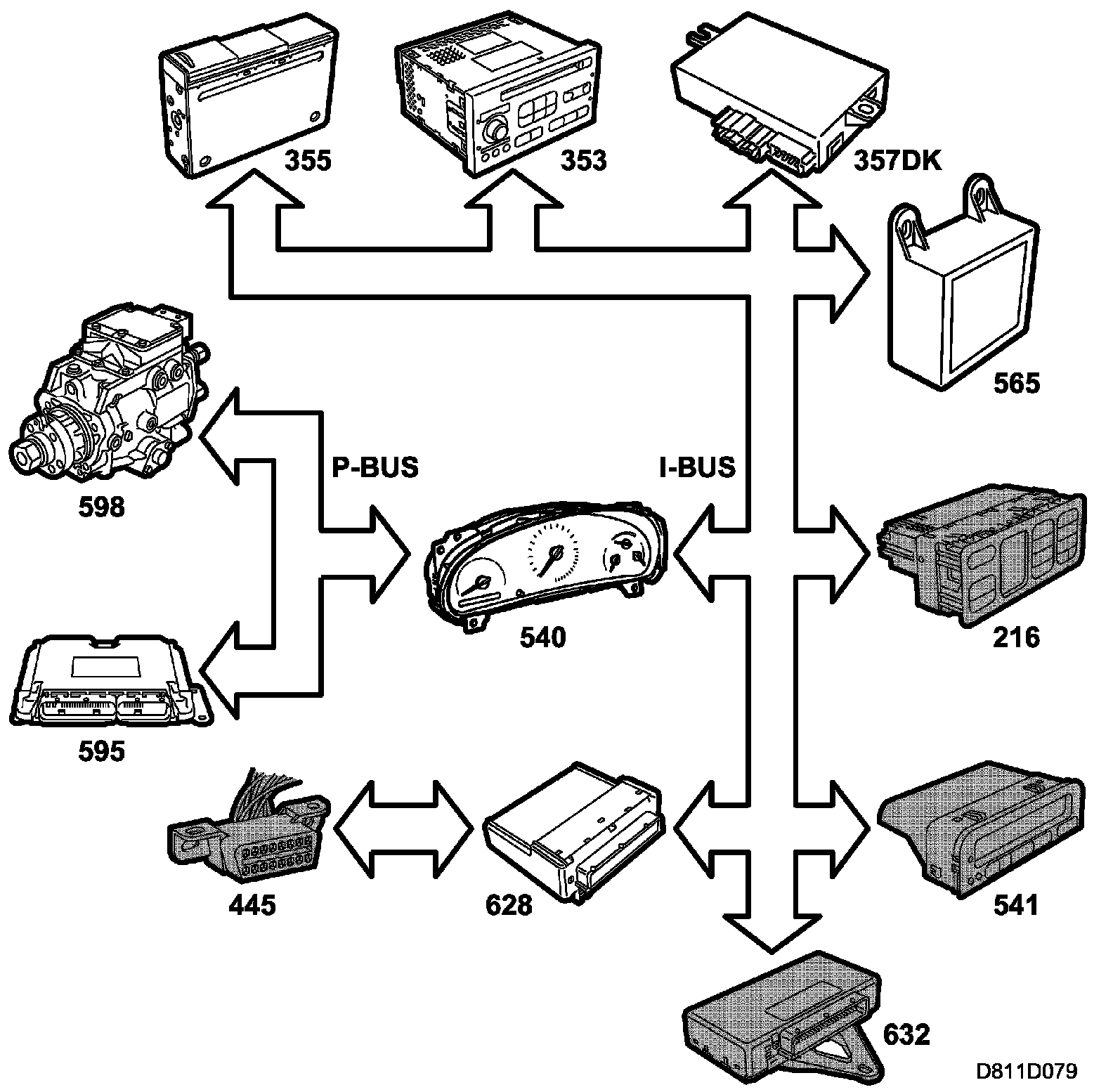

Control Module Outputs, Bus

Control Module Outputs, Bus







- SID (541) STC control module sends bus message "Sound and text information" to SID.
- ACC (216) STC control module sends bus information "Soft top position", unit Closed, In motion or Opened to ACC.
- TWICE (632) STC control module sends bus information "Soft top position", unit Closed, In motion, or Opened to TWICE.
- Diagnostic communications (445).
